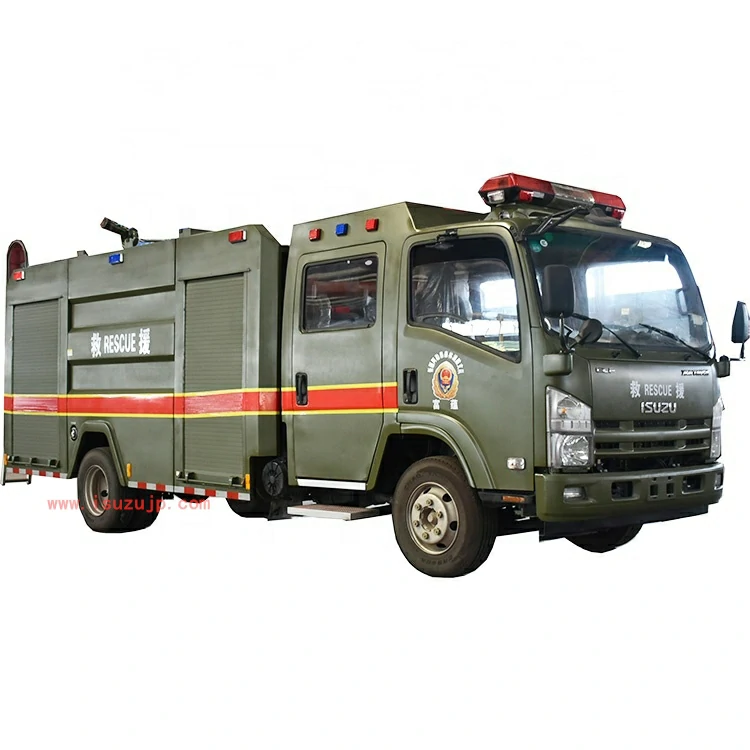

ISUZU NMR 3500L firetrucks Description:
- ISUZU 3500L firetrucks are also called fire fighting tankers, fire appliances, fire fighting engines, fire-extinguishing water trucks, service trucks, fire rescue trucks, fire engine, fire tender, fire vehicle, fire fighting equipment, fire fighting foam tanker.
- This fire truck is designed primarily for fire fighting operations – to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
- Fire fighting trucks types: Water fire truck, foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
- Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other departments.
- According to the fire agent, there are water tank fire fighting trucks, dry powder fire fighting trucks, water/foam fire fighting trucks.
Advantage:
- 100% custom-made
- ISUZU NQR heavy-duty Chassis, Durable & Performance.
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- High-performance fire pump and fire cannon
- Water tank and Foam tank capacity can be optional.
- Tanker material: Carbon steel or Stainless steel
- With a complete set of fire fighting Accessories & Equipment, your can put in work immediately.
- Easy operation and easy maintenance.
- FREE training in our factory if you need it.
Specification:
| ISUZU NMR 3500L firetrucks sale in Madagascar | |||
| Vehicle Parameters | |||
| General | Vehicle Model | CLW5100GXFSG30/Q | |
| Vehicle Brand | CLW | ||
| Chassis Brand | QL1100A8MAY | ||
| Overall Dimension(mm) | 7390×2250×3000 | ||
| GVW/Curb Weight(kg) | 9700/6225/3100 | ||
| Chassis Parameters | |||
| Cab | Cab Seat | 2+3 | |
| Air Conditioner | YES | ||
| Engine | Fuel Type | diesel | |
| Engie Model | 4HK1-TC51 | ||
| Engine Brand | ISUZU | ||
| Power(kw/hp) | 141/190 | ||
| Displacement(cc) | 5193 | ||
| Emmission Standard | Euro5 | ||
| Chassis | Drive Type | 4*2 | |
| Transmission | 6 speed, Manual | ||
| Wheelbase(mm) | 4175 | ||
| Tyre Specification | 235/75R17.5 | ||
| Tyre No.(pcs) | 6+1 | ||
| Max Speed(km/h) | 100 | ||
| Paint | Red | ||
| Fire Truck Water Tank Structure Parameters | |||
| Tank Volume | 3500L | Tank Material | Carbon Steel |
| Tank Thickness | 4/3/3mm | Fire pump | CB10/30 |
| Fire monitor | PS30 | Color and | Optional |
| Standard configuration | Chassis,sub frame, van body,national standard equipment box, 25 units national standard fire-fighting equipment,fire pump(CB10/20, CB10/30,CB10/40,CB10/60 according to the capacity), fire gun(PS20 ,PS30,PS40,PS50 according to the capacity),fire power take off, sliding gate, row type lights, reel, common tools,rear climbing ladder,water tank. | ||
| Selective configuration | foam type, dry powder type, stainless tank, other requirements. | ||
ISUZU Fire fighting vehicle Bodywork details:
Fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | straw | 125×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF125 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII125/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | Internal button |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Fire extinguisher | 3KG | 1 | With | |
| 16 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 17 | Rubber hammer | 1 | Piece | ||
| 18 | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 12V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand lift the pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |

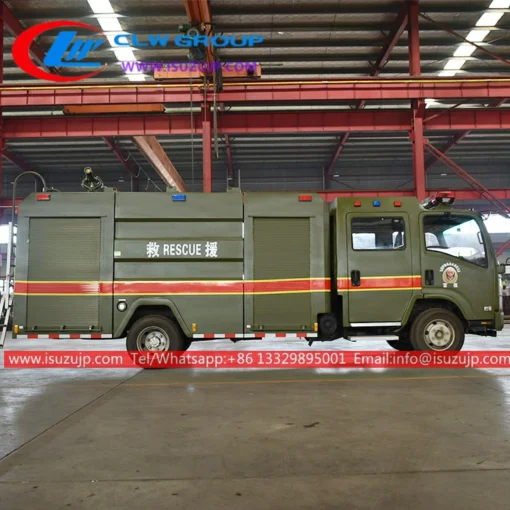

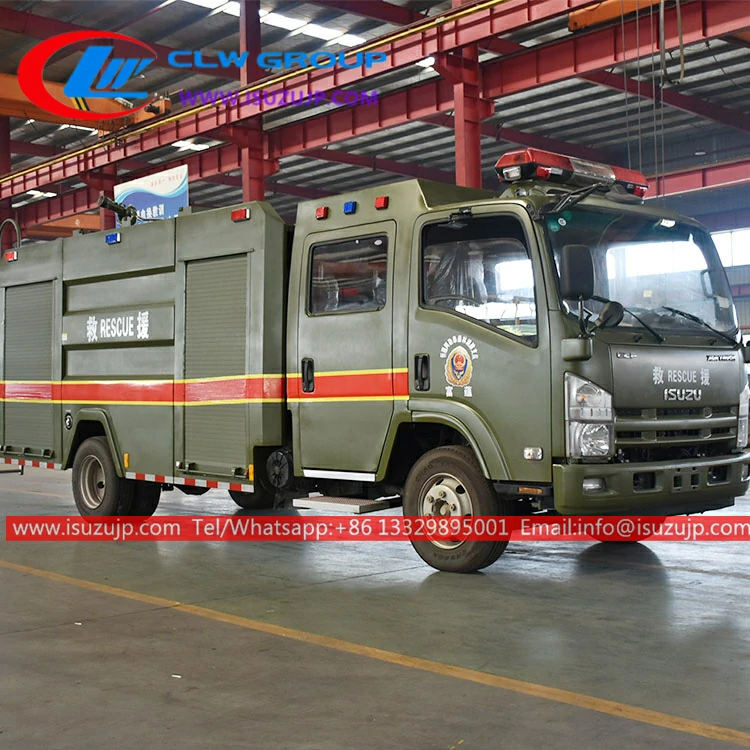

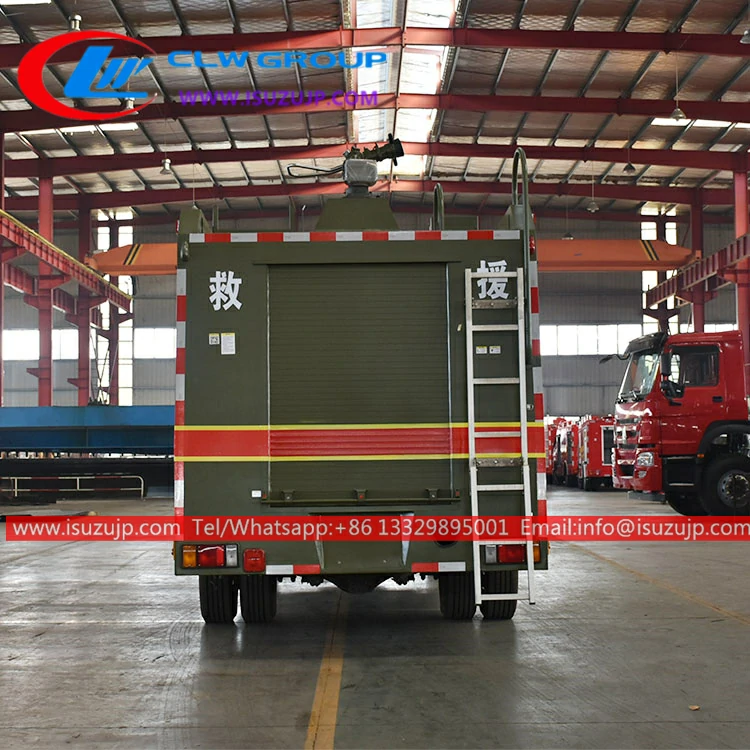

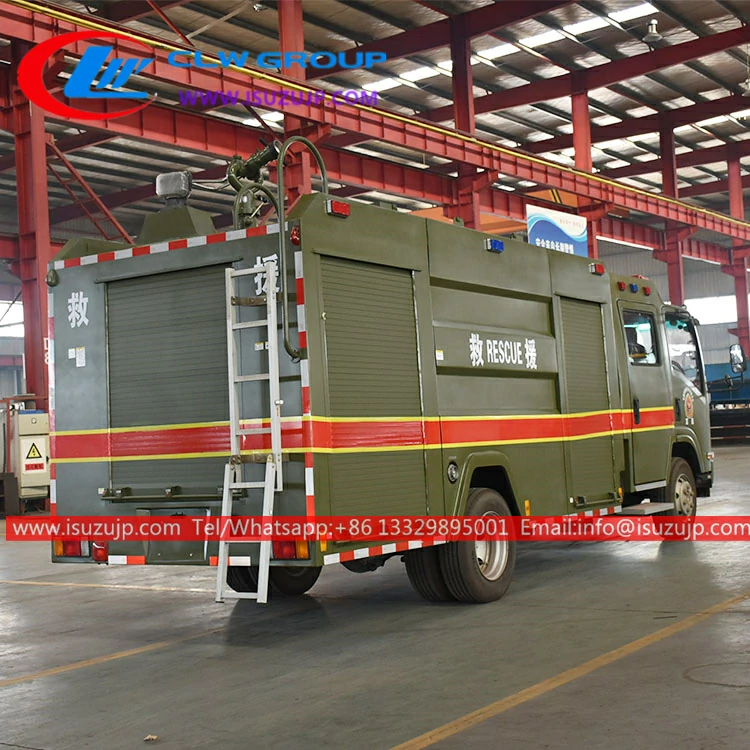

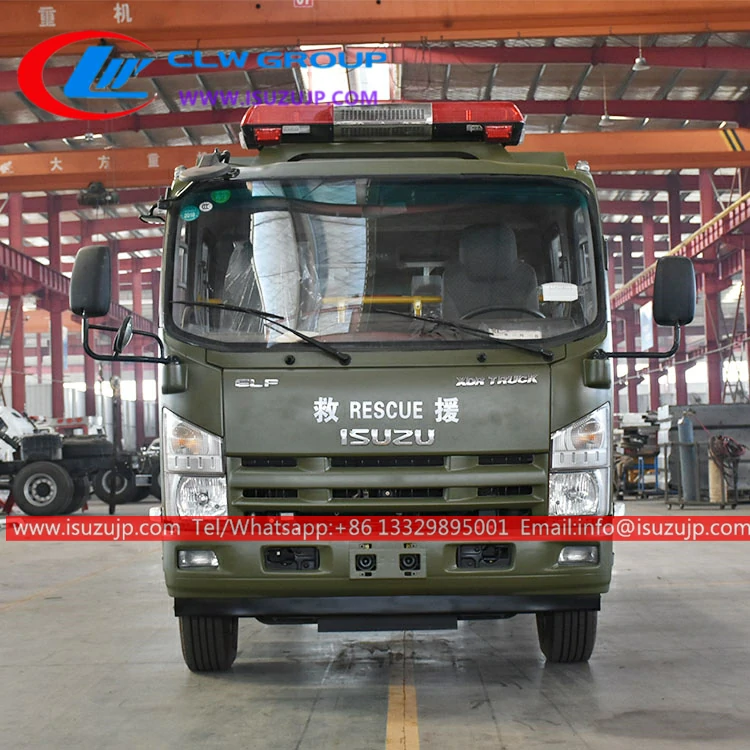

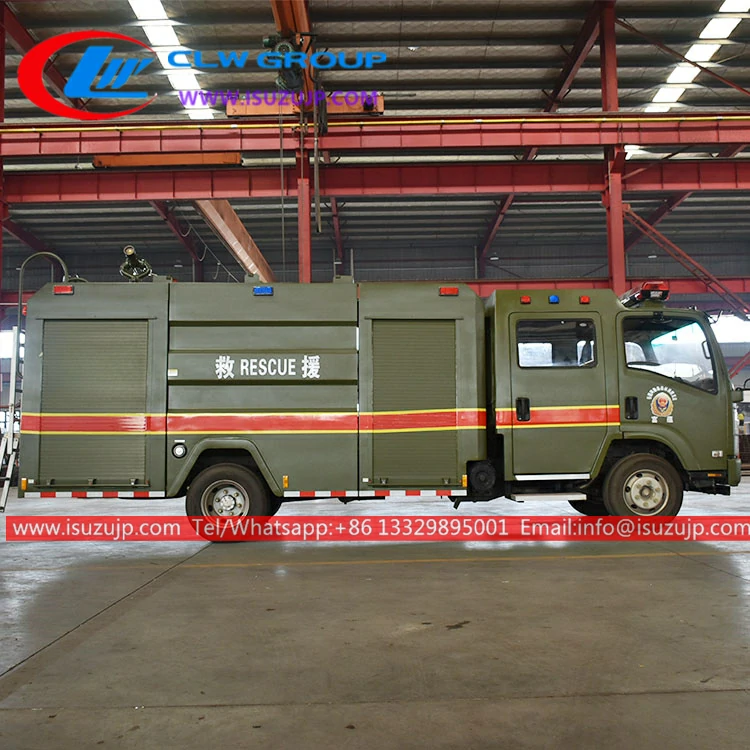

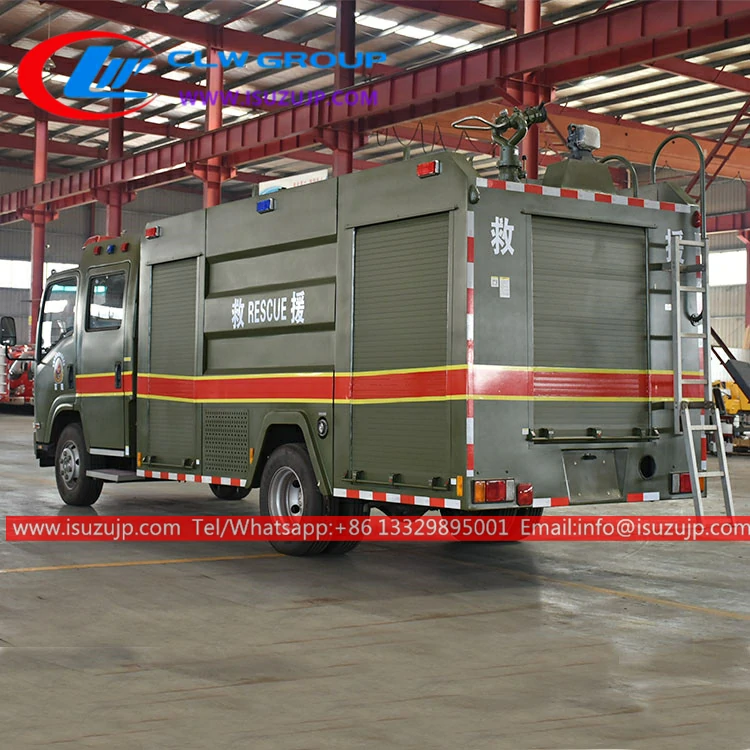

fire fighting engine Parts Picture：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
