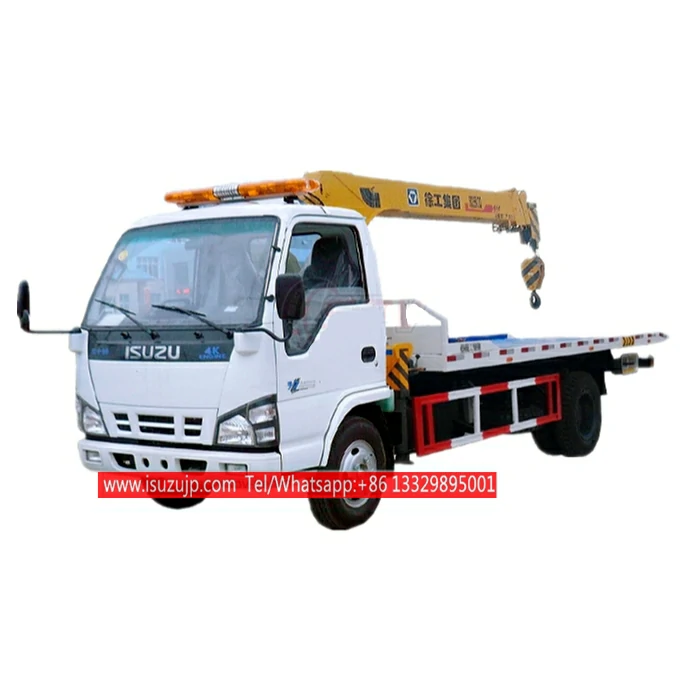

ISUZU NKR 3 ton flatbed wrecker truck with crane Description:
- ISUZU flatbed wrecker truck with crane also called multi-function towing truck, breakdown truck, recovery truck, breakdown lorry, wrecker, police rescue truck, flatbed tow truck, boom truck, wheel-lift wrecker
- is used to transport motor vehicles or the vehicles that are broken down.
- Based on the type or size of vehicle to be towed, wreckers are usually designed into two types. One is slide bed tow truck with wheel-lift function; another one is wheel-lift units that offer a combination boom with sling.
Advantage:
- 100% custom-made
- 15 years spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- 3 Ton to 50 Tons available
- Short delivery time 7~30 days
- Telescopic boom crane or Knuckle boom crane can be optional.
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.
- Easy operation & Easy maintenance
Specification:
| ISUZU NKR 3 ton flatbed wrecker truck with crane | ||
| General | Vehicle Brand | CHENGHLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7450X2330X2520 mm | |
| GVW / Kerb Weight | 7,300 kg / 4,165 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4HK1 | |
| Power | 120 Hp (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU gear box, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Towing Type | Slidebed with wheel-lift |
| Flatbed Payload Capacity | 3 Ton | |
| Flatbed Length | 4.2 M | |
| Towing capacity | 3 Ton | |

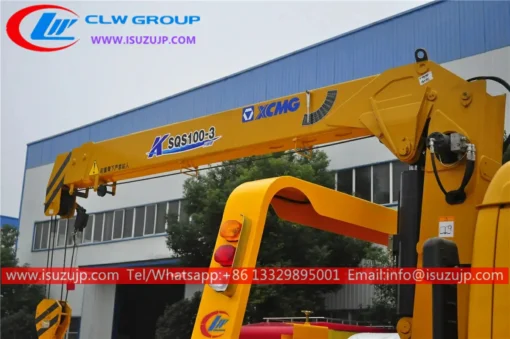

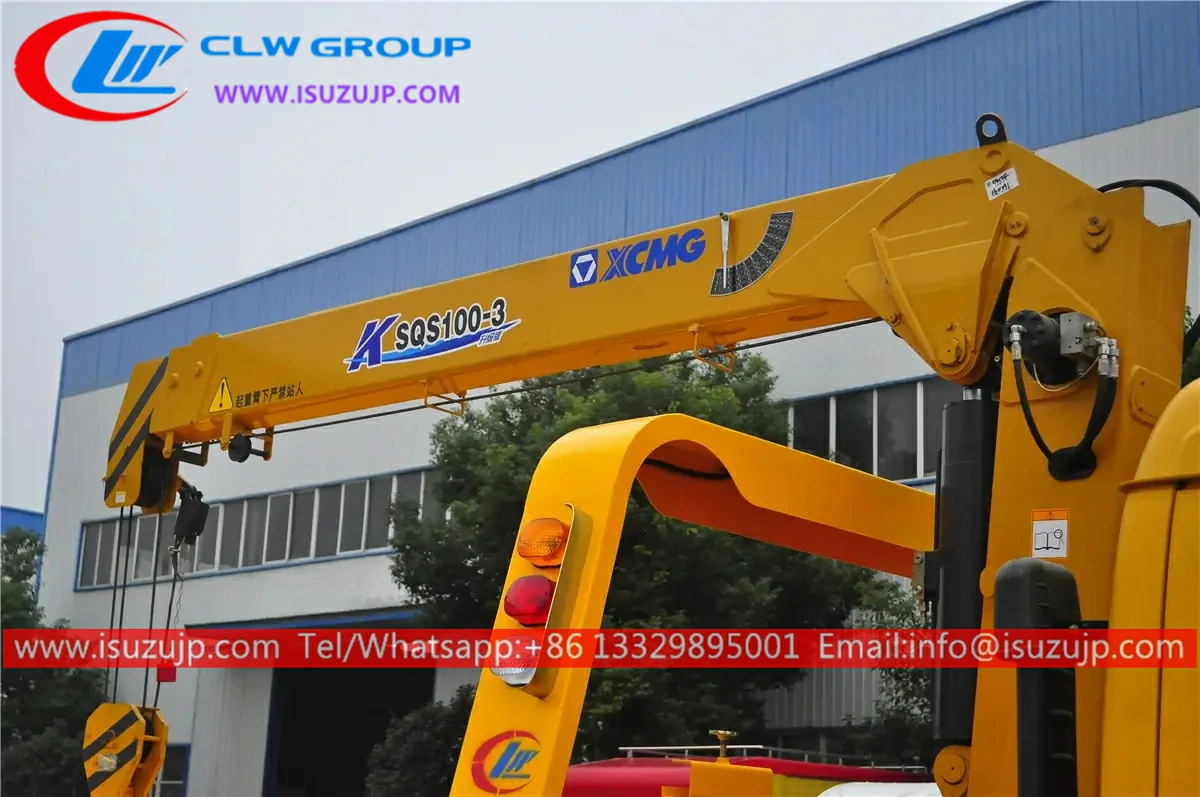

| Crane Type | Telescopic boom crane | |
| Max. Lifting Capacity | 2 Ton | |
| Max. Lifting Height | 9 m | |
| Crane Capacity | 2000 kg @ 2.1 m 1000 kg @ 3 m 400 kg @ 5.4 m 255 kg @ 7.73 m | |
| All other standard accessories: Binding belt, auxiliary sliding board, spinning cylinder, L-type fork, tyre cover…… | ||
| Optional | LED alarm lamp is optional. Crane could be installed on flatbed wrecker. | |
ISUZU flatbed tow truck Flatbed recovery vehicle Advantage:
- Loading surface of the platform is formed by stamping die once.
- Endurance is strong and the shape is not deformed.
- Plate surface is smoother, the structure is more professional and the strength is higher.
- Hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
- It integrates multiple functions such as lifting, carrying, dragging, pulling and so on.
- Hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
Flat Wrecker truck Structure:
Police rescue truck operations and parts picture:

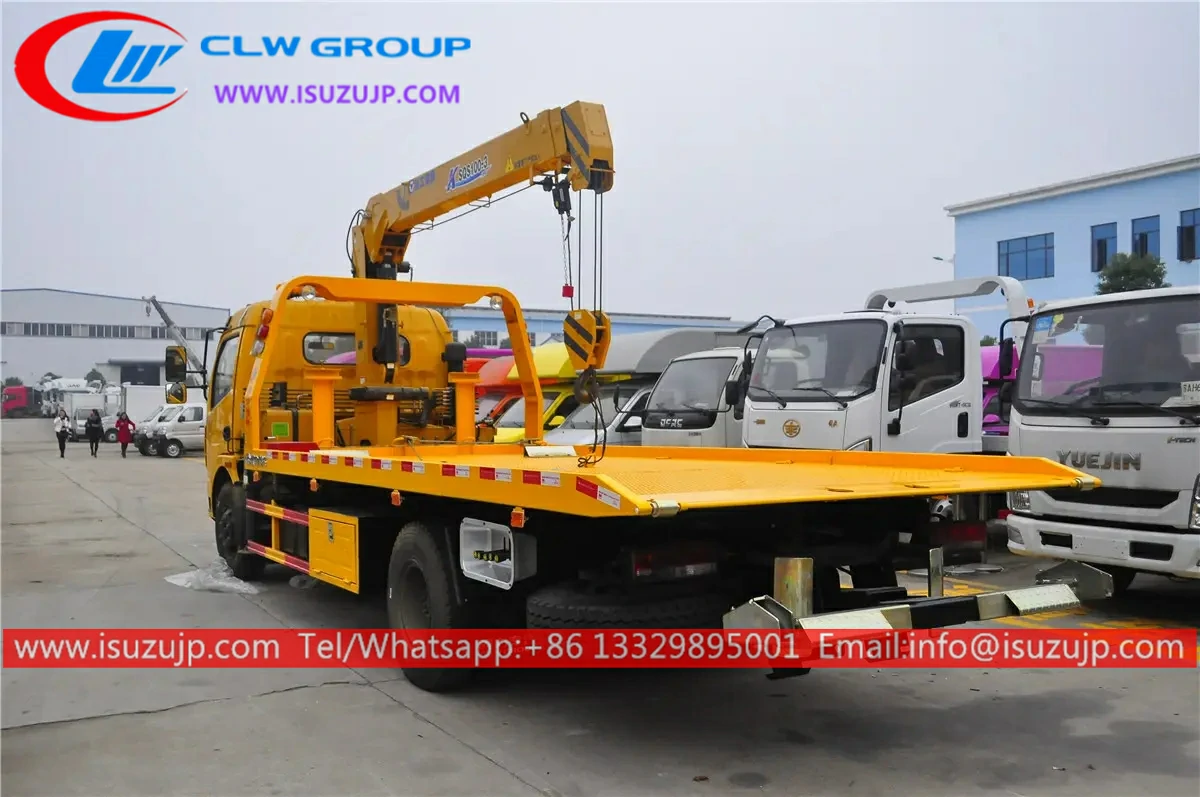

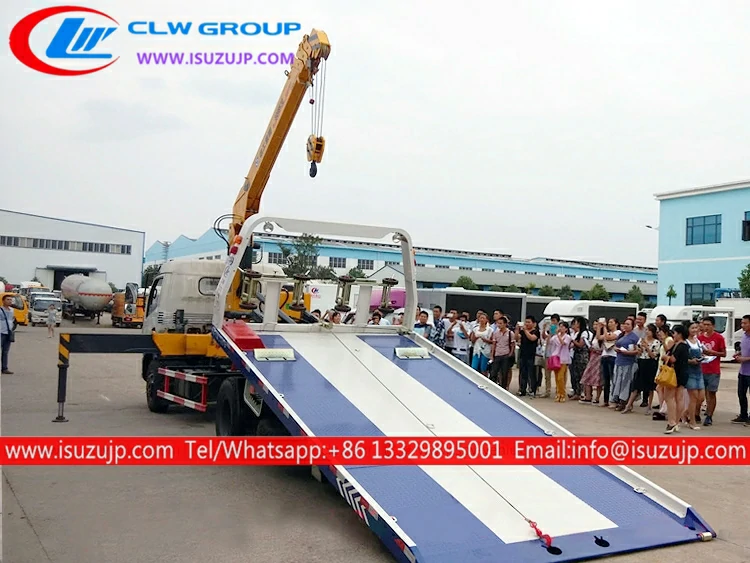

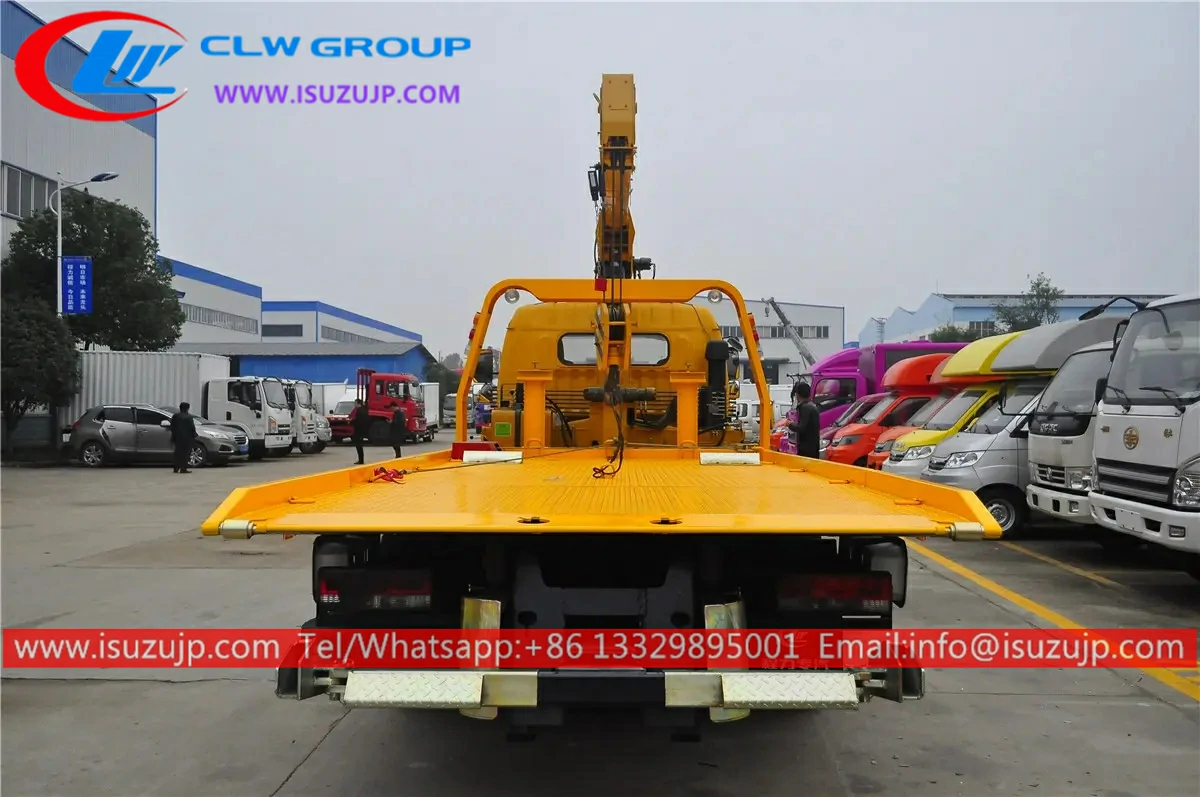

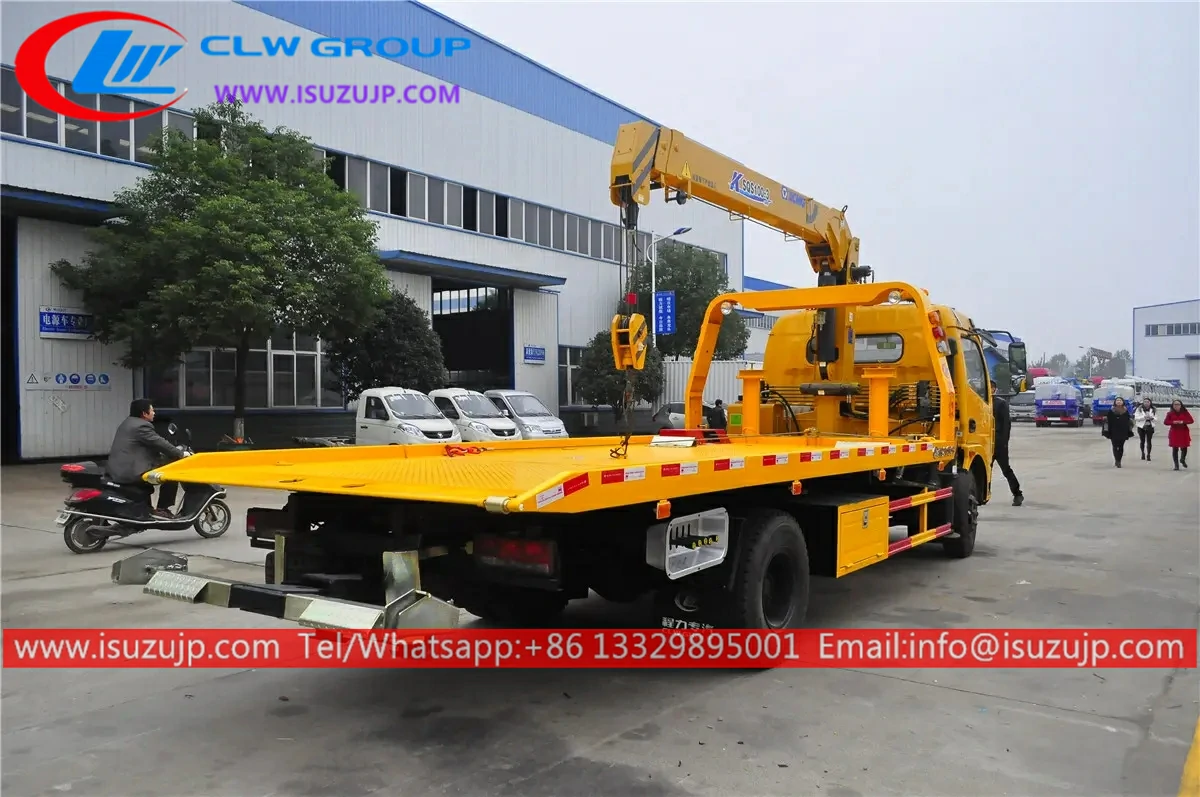

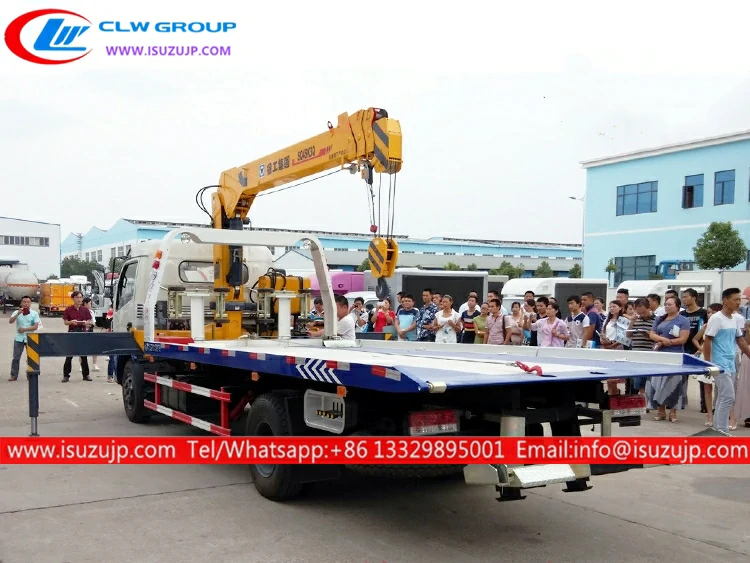

ISUZU recovery wrecker tow truck details：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
