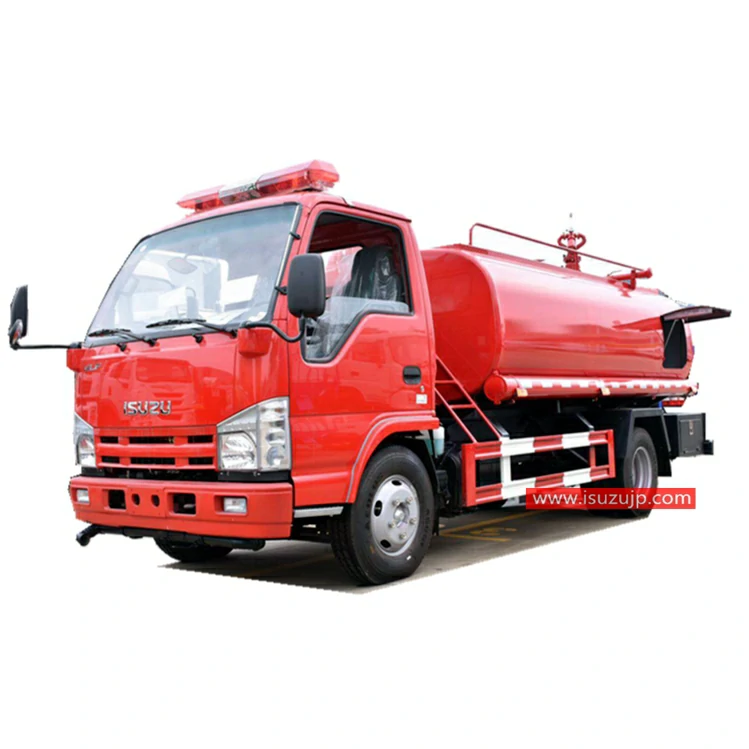

ISUZU NHR 3000liters water bowser fire engine Description:
- ISUZU water bowser fire engine also called fire fighting tanker, fire appliance, fire fighting engine, fire-extinguishing water truck, service truck, fire rescue truck, fire engine, fire tender, fire vehicle, fire fighting equipment, fire fighting foam tanker.
- This fire truck is designed primarily for fire fighting operations – to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
- Fire fighting trucks types: Water fire truck, foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
- Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other departments.
- According to the fire agent, there are water tank fire fighting trucks, dry powder fire fighting trucks, water/foam fire fighting trucks.
Advantage:
- 100% custom-made
- ISUZU NHR light-duty Chassis, Durable & Performance.
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- High-performance fire pump and fire cannon
- Water tank and Foam tank capacity can be optional.
- Tanker material: Carbon steel or Stainless steel
- With a complete set of fire fighting Accessories & Equipment, your can put in work immediately.
- Easy operation and easy maintenance.
- FREE training in our factory if you need it.
Specification:
Item | ISUZU NHR 3000liters water bowser fire engine for sale | Chassis Brand | Isuzu | ||
Vehicle parameters | GVW(kg) | 6800 | Overall Dimension (mm) | 6390×2000×2500 | |
Rated load (kg) | 2035 | Steering Wheel | LHD | ||
Curb weight (kg) | 4400 | Wheelbase (mm) | 3360 | ||
Driving Type | 4X2 | ||||
Engine parameters | Model | 4JB1CN | Emission Standard | Diesel, Euro V | |
Horse Power (hp) | 98 | Emissions(ml) | 2771 | ||
4 stroke,4-cylinders in line, turbocharged and inter-cooling | |||||
Gearbox | 6 forward and 1 reverse | ||||
Performance Parameter | Max Speed (km/h) | 95 | Wheel Tread(mm) | Front Axle | 1504 |
Cab Seat | 2+3 | Rear Axle | 1425 | ||
Leaf Spring | 8/6+5 | The suspension (mm) | Front Suspension | 1015 | |
Tire No. | 6 | Rear Suspension | 1900 | ||
Tire Specification | 7.00R16 | Driving Angle(°) | Approach Angle | 24 | |
Axle No. | 2 | Departure Angle | 13 | ||
Special Function | Capacity | Water tank 3000L | |||
Fire Pump | 1. CB10/20, 20L/S,pressure:1.0MPa 2. Suction time≤ 35s (7m suction depth) centrifugal pump | ||||
Fire Monitor | 1.PS20, 20L/S, pressure: 1.0Mpa 2. Fire nozzle range: water≥48m | ||||
Performance Description | Double row cab(Can be customized); ABS, Air conditioning system. Hidden tank, the material is carbon steel Q235A, with thickness 4 mm; Truck body with aluminum alloy rolling door; PTO control indicator installed in-cab, also with 100W siren, LED alarm lamp, sign light, lighting switch, rear lighting and etc. Fire equipment is included. | ||||
ISUZU Fire fighting vehicle Bodywork details:
Fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | straw | 125×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF125 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII125/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | Internal button |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Fire extinguisher | 3KG | 1 | With | |
| 16 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 17 | Rubber hammer | 1 | Piece | ||
| 18 | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 12V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand lift the pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |
fire fighting engine Parts Picture：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
