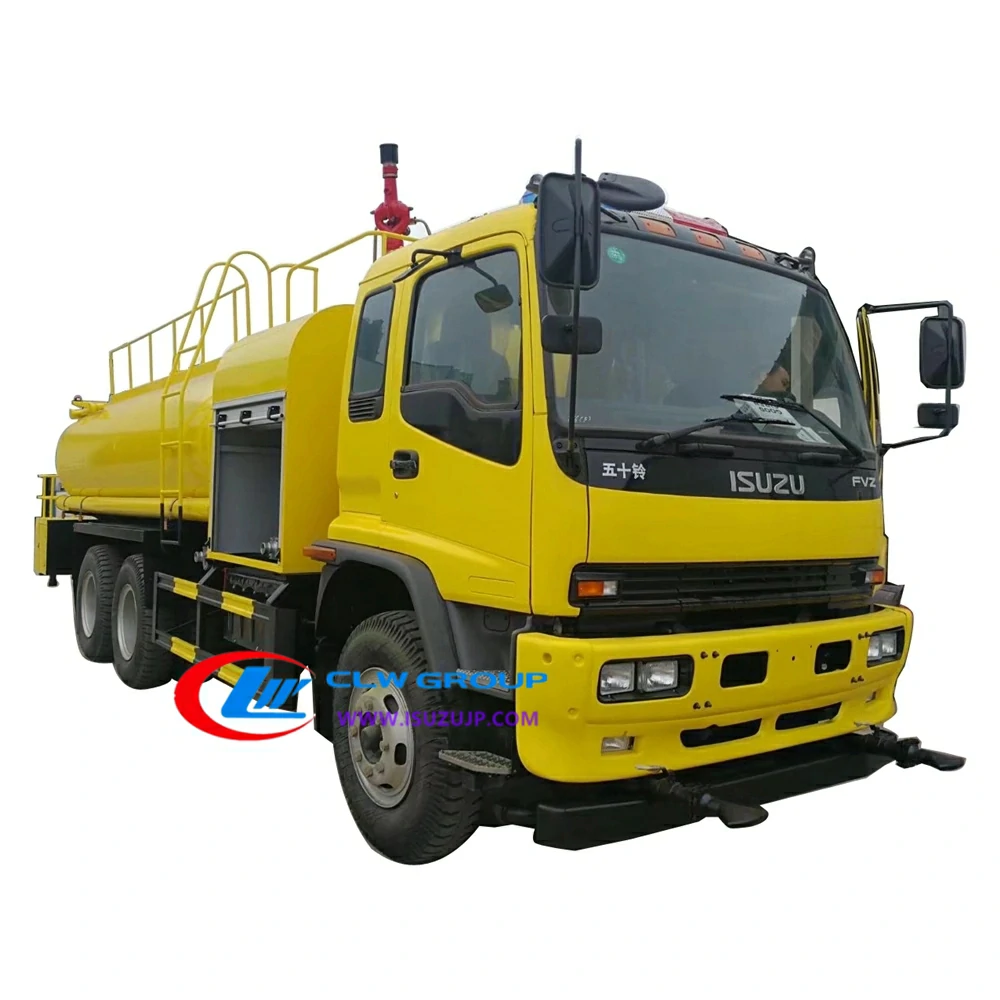

ISUZU FVZ 4000 gallon fire fighter truck Description:
- ISUZU fire fighter truck also called fire fighting tanker, fire appliance, fire fighting engine, fire-extinguishing water truck, service truck, fire rescue truck, fire engine, fire tender, fire vehicle, fire fighting equipment, fire fighting foam tanker.
- This fire truck is designed primarily for fire fighting operations – to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
- Fire fighting trucks types: Water fire truck, foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
- Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other departments.
- According to the fire agent, there are water tank fire fighting trucks, dry powder fire fighting trucks, water/foam fire fighting trucks.
Advantage:
- 100% custom-made
- ISUZU FVZ heavy-duty Chassis, Durable & Performance.
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- High-performance fire pump and fire cannon
- Water tank and Foam tank capacity can be optional.
- Tanker material: Carbon steel or Stainless steel
- With a complete set of fire fighting Accessories & Equipment, your can put in work immediately.
- Easy operation and easy maintenance.
- FREE training in our factory if you need it.
Specification:
| Manufacturer | CHENG LI | ||
| Product Name | ISUZU FVZ 4000 gallon fire fighter truck | ||
| Vehicle Brand Series | ISUZU FVZ | ||
| Vehicle Model | CLW5126GSSD5 | ||
| Production Time | 30 days | ||
| Chassis parameters | Overall dimensions | mm | 9900X2500X3000 |
| Gross weight | kg | 25,000 | |
| Kerb weight | 10,800 | ||
| Wheelbase | mm | 5,100+1,350 | |
| Driving type | 6*4 | ||
| Chassis model | ISUZU FVZ Heavy-duty | ||
| Tire size | 12.00-20-16PR | ||
| Number of Tires | 10+1 | ||
| Passengers in cab | 3 | ||
| Engine | Engine model | 6HK1-TCG40 | |
| Type of fuel | Diesel | ||
| Power | 280HP | ||
| Max speed | Km/h | 110 | |
| Emission standard | EURO 4,5,6 | ||
| Water Tanker performance | Tanker Body | 16,000L | |
| Body Material | Weather Resisting Steel | ||
| Tanker Shape | Ellipse as standard | ||
| Water Pump | China Famous Brand 50m3/h | ||
| Optional Italy, Euro brand | |||
| Washing Width | ≥20 M | ||
| Washing Speed | 5~20 km/h | ||
| Rear Cannon Range | ≥50 M | ||
| Spray Bar | Front, Side & Rear | ||
| Hose & Hose-carrier | Factory standard | ||
| Control Panel | English | ||
| Walkway and Hand rail | Yes | ||
| Painting | Two primers, and one final paint coating | ||
| Color & LOGO | According to wish | ||
| Factory standard | “U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps… | ||
| Documents | English operation manual, Spare parts list, and all necessary export docs. | ||
| Optional equipment | 1, Stainless steel tank, Aluminum alloy tank 2, Wider platform and Fire Cannon 3, Electricity controlled separately sprinkler 4, Spreading salt water * Snow-melting agent | ||
ISUZU Fire fighting vehicle Bodywork details:
Fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | straw | 125×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF125 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII125/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | Internal button |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Fire extinguisher | 3KG | 1 | With | |
| 16 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 17 | Rubber hammer | 1 | Piece | ||
| 18 | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 12V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand lift the pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |

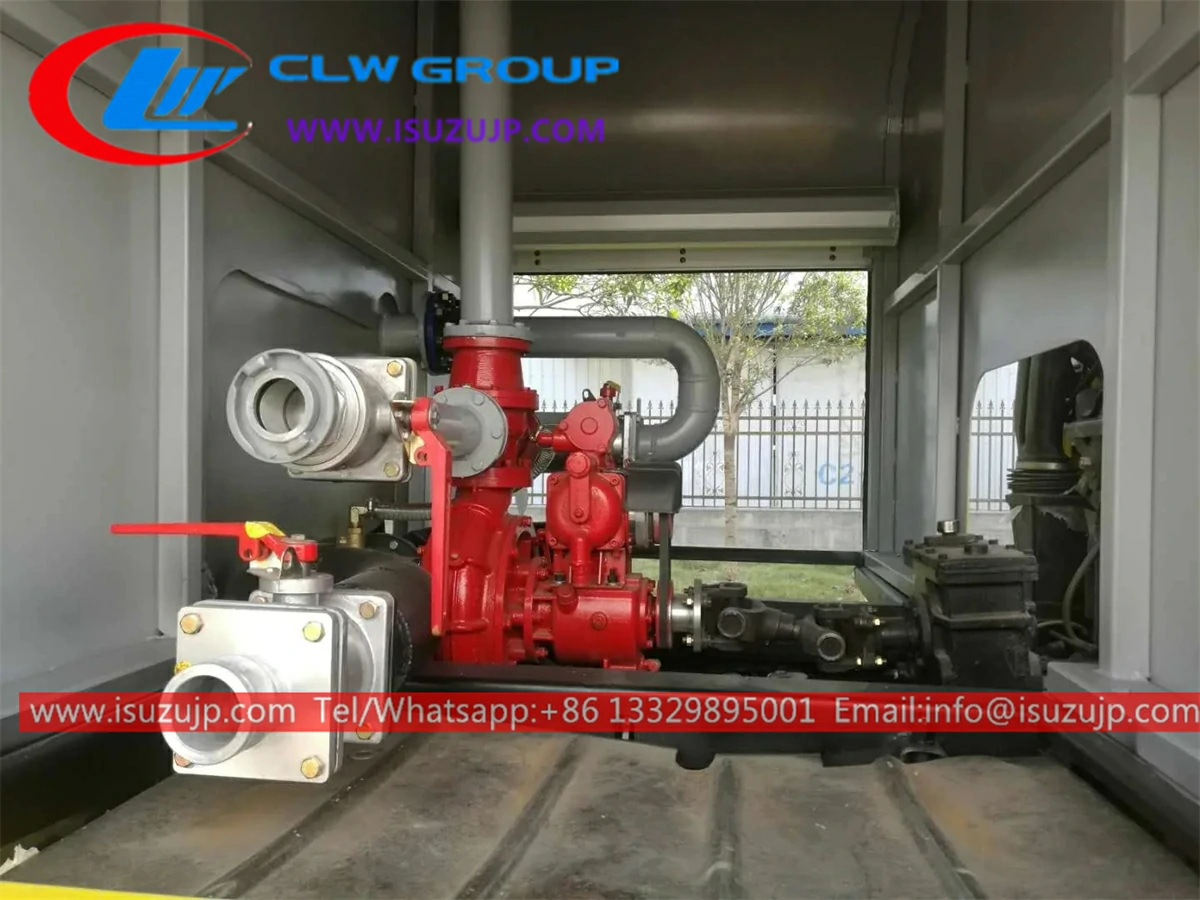

fire fighting engine Parts Picture：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
