Introduction：

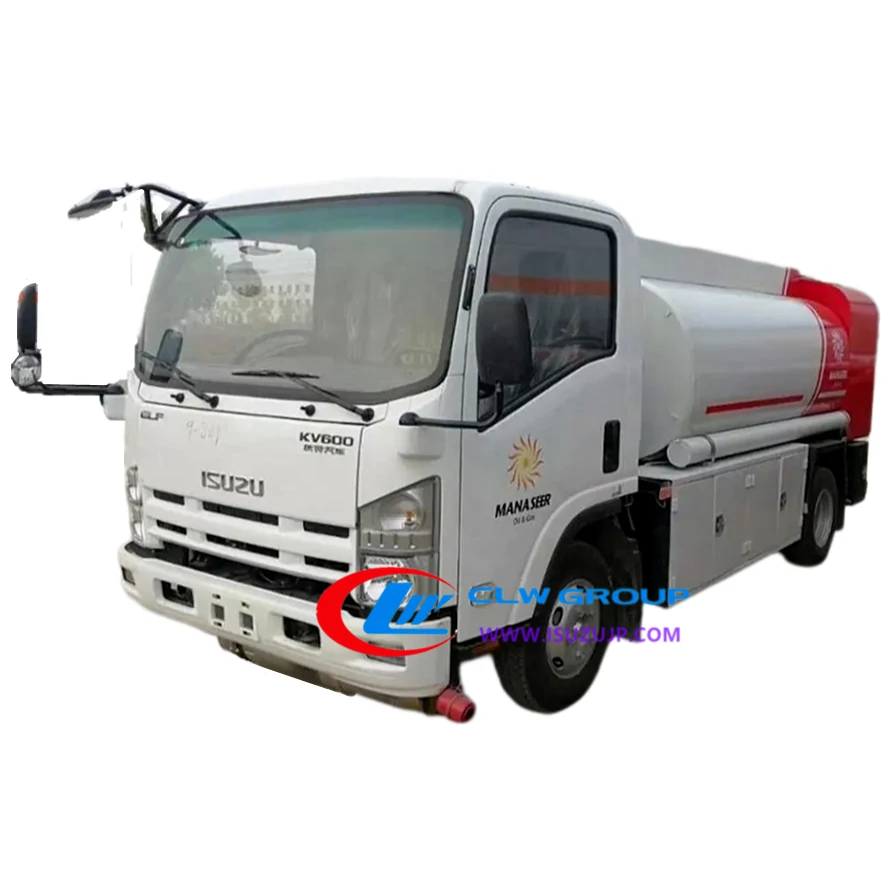

ISUZU KV600 small fuel tanker truck (also called fuel oil bowser, diesel gasoline tanker bowser, fuel oil dispenser truck, petrol tanker truck, refuel bowser vehicle) is used to transport oil, diesel, gasoline, kerosene， etc.
ChengLi company’s Production fuel bowser can be divided into many compartments to transport different types of fuels, lubricants, crude oil, alcohol…
ISUZU fuel truck can be equipped with an oil pump and refueling machine, flow meters all for easy operation.
Advantage：
- ISUZU KV600 chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- Fuel Tanker capacity from 3 to 32 Cubic meters.
- Easy operation and easy maintenance.
- Euro V and Euro VI engine meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two-year warranty, after the warranty period, we only charge the cost price.
Specifications:
| General Technical Parameters | |||
| Overall Dimension | 5990×2100×2500 (mm) | ||
| Gross Vehicle Weight | 7300kg | ||
| Chassis Specification | |||
| Chassis Brand | ISUZU KV600 small fuel truck for sale | ||
| Drive model | 4*2 | ||
| Cabin | Single row, Cab reversible, Left-hand Drive, with air conditioning. | ||
| Number of Passengers | 2 | ||
| Engine | Model | 4HK16BNS/120HP, with ABS. | |
| Power | 88KW/120HP | ||
| Emission standard | EURO VI | ||
| Displacement | 2770(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | 5Forwards & 1Reverse, manual operation, with power steering. | ||
| Brake System | Oil break, with vacuum booster pump. | ||
| Wheel Base | 3360mm | ||
| Front/Rear Axle Loading | 2500/4800(Kg) | ||
| Overhang | Mechanical Suspension, 8/10+6. | ||
| Tire | 7.00R16, steel wire tire, 6pc with 1 spare tire. | ||
| Max Driving Speed | 80 km/h | ||
| Upperstructure Specification | |||
| Fuel Tank | Tank Material | Q235B Carbon Steel (Stainless Steel and Aluminum Alloy for optional) | |
| Effective Volume | 5CBM | ||
| Medium Type | Fuel(Gasoline, Diesel, etc.) | ||
| Tank Thickness | 5mm | ||
| Manhole cover | 1 unit. with breath valves. | ||
| Emergency cut-off valve | 1 unit. | ||
| Discharging valve | 1 unit. | ||
| Lifting Ladder | 1 unit. | ||
| Color | According to the customer’s requirements. | ||
| Dispenser System | 1, Dispenser machine; | ||
| 2, Refueling retractable rubber hose reel and filling gun, 2 units; | |||
| 3, Pump. | |||

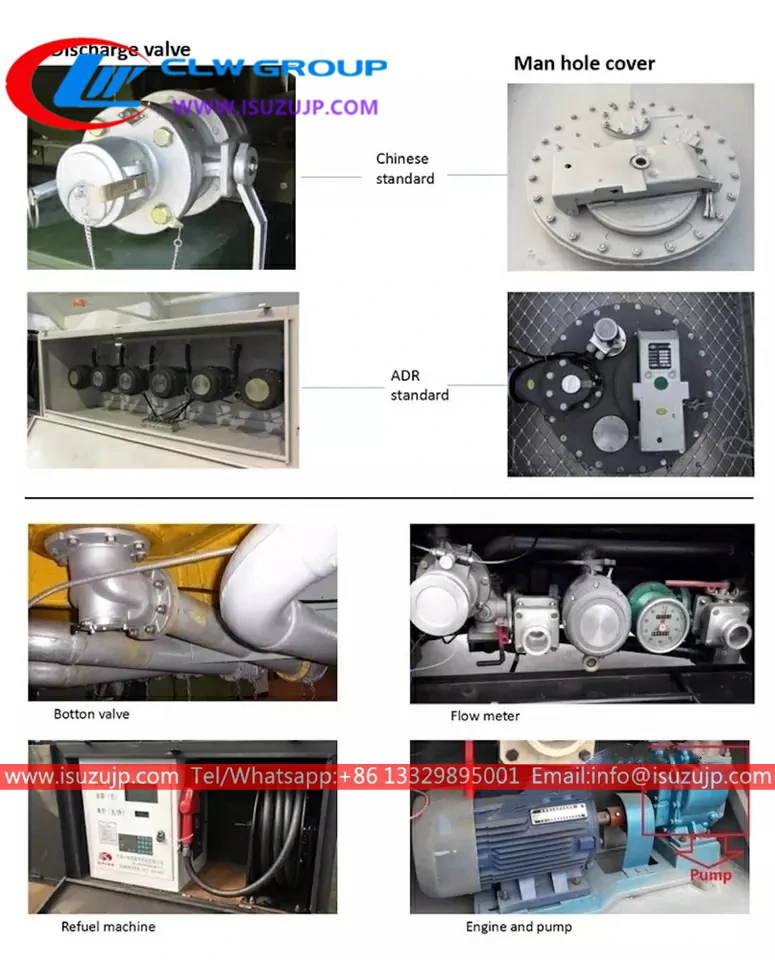

Isuzu fuel bowser structure picture：
Oil Truck technical training support：
Oil tanker bowser Parts：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Factory Advantage：
Export Document：
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection …
Shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely

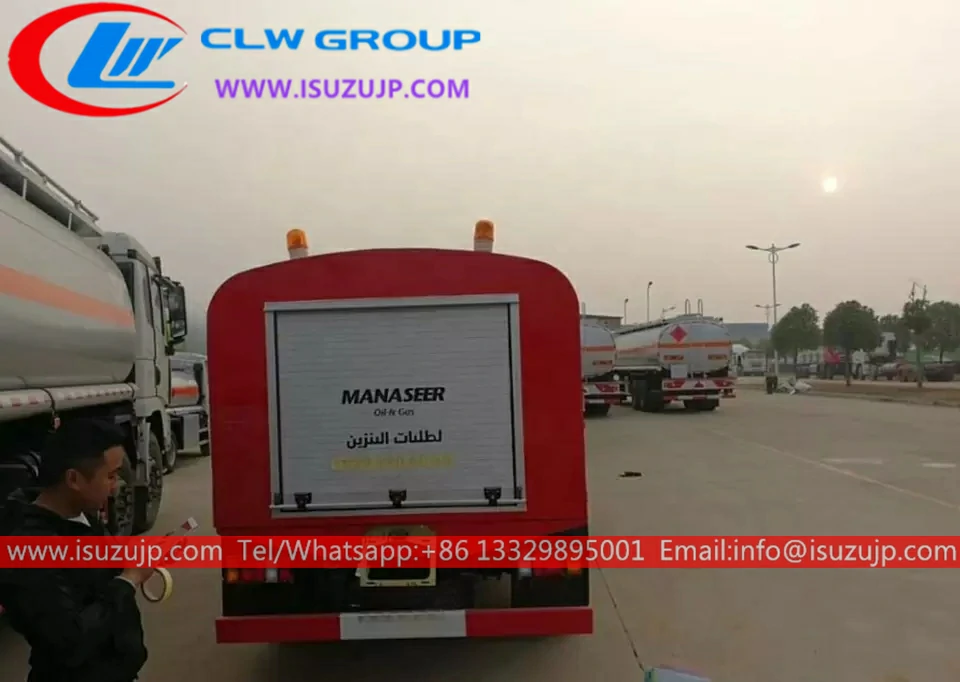

Fuel truck Batch delivery case：
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
