Introduction：
ISUZU 98HP 5k liters small fuel truck (also called fuel oil bowser, diesel gasoline tanker bowser, fuel oil dispenser truck, petrol tanker truck, refuel bowser vehicle) is used to transport oil, diesel, gasoline, kerosene， etc.
ChengLi company’s Production fuel bowser can be divided into many compartments to transport different types of fuels, lubricants, crude oil, alcohol…
ISUZU fuel truck can be equipped with an oil pump and refueling machine, flow meters all for easy operation.
Advantage：
- ISUZU 4K-ENGINE chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- Fuel Tanker capacity from 3 to 32 Cubic meters.
- Easy operation and easy maintenance.
- Euro V and Euro VI engine meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two-year warranty, after the warranty period, we only charge the cost price.
Specifications:
| Product model | ISUZU 98HP 5k liters small fuel truck price Philippines | ||
| Chassis model | QL1040A1HAY | ||
|
Vehicle spec. | Overall dimensions(mm) | 5995*2000*2600 | |
| Tank dimensions(mm) | 4000*1900*1180 | ||
| Weight(kg) | GVW | 7200 | |
| payload weight | 4000 | ||
| curb weight | 3200 | ||
| Approach/departure angle(°) | 18/14 | ||
| Front/Rear overhang(mm) | 2500/4500 | ||
| Fuel type | Diesel | ||
| Fuel consumption(100km/L) | 13 | ||
| Max speed (km/h) | 100 | ||
|
Engine spec. | Model | 4HK1CN5LS | |
| Displacement(cc) | 2999 | ||
| Horsepower(kW/ps) | 72/90 | ||
| Engine type | 4 cylinder,in-line, turbocharger and after cooled | ||
|
Chassis spec. | Drive style | 4*2 | |
| Wheelbase(mm) | 3360 | ||
| Front tread(mm) | 1504 | ||
| Rear tread(mm) | 1425 | ||
| Front axle loading(T) | 2.5 | ||
| Rear axle loading(T) | 4.5 | ||
| Gearbox | 5 speed | ||
| Brake | By air, with power assisted, pressure boost | ||
| Tyre spec. | 7.00R16 | ||
| Tyre nos. | 6+1(spare part) | ||
| Equipment | 1. Tank can be separated into several unattached small tanks to fill different fuels 2. Tank material: carbon steel, stainless steel, FRP, etc. optional 3. Tank shape: groundless, quadrate, oval optional 4. Oil pump: self-priming pump, gear pump optional 5. Oil meter: single, double, Fiscal processor optional | ||

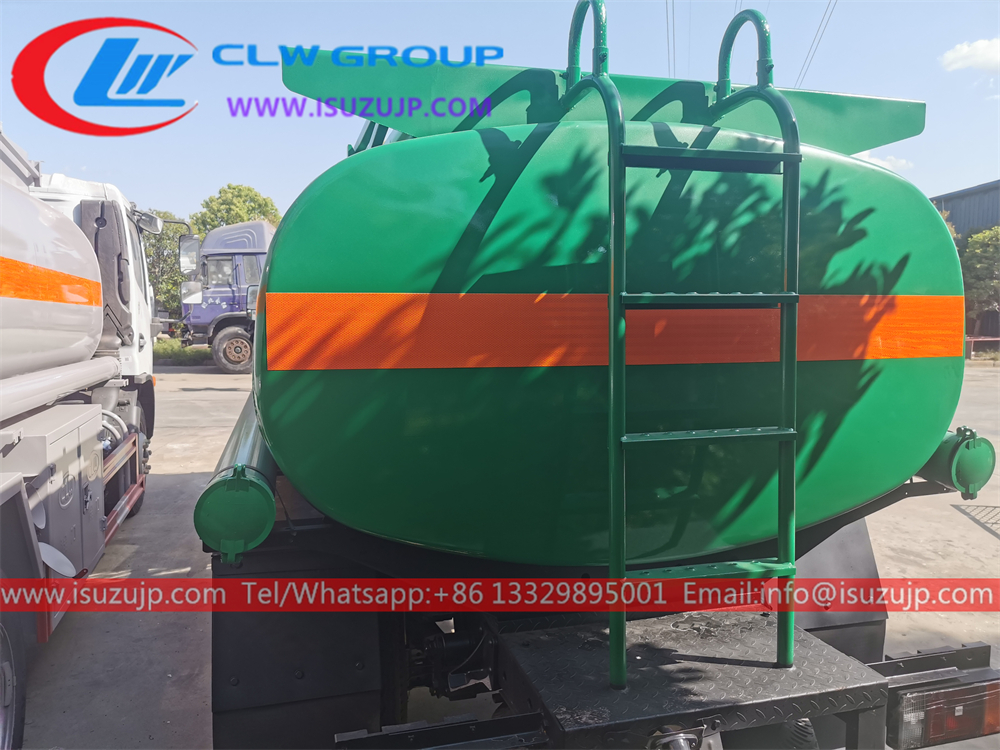

Isuzu fuel bowser structure picture：
Oil Truck technical training support：
Oil tanker bowser Parts：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Factory Advantage：
Export Document：
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection …
Shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Fuel truck Batch delivery case：
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
