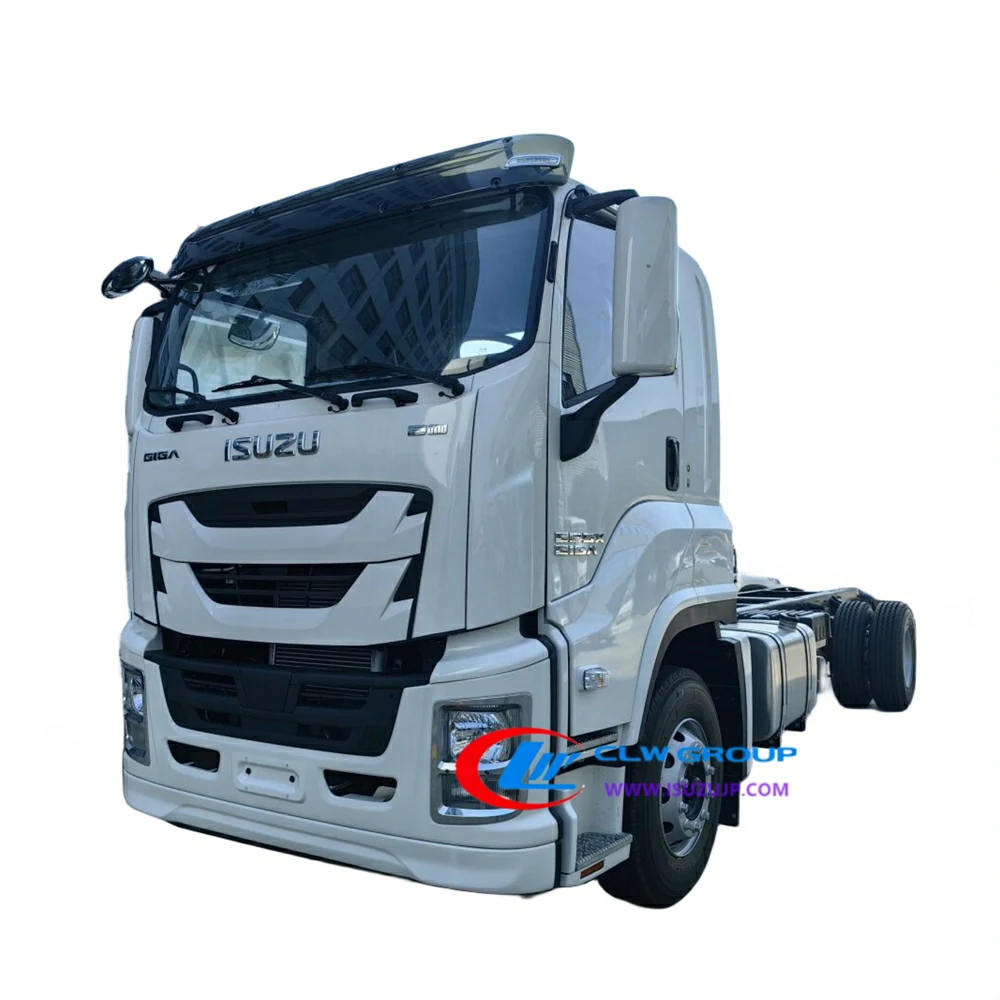

ISUZU GIGA VC61 240HP 18tons diesel truck chassis Description:
QINGLING ISUZU GIGA VC61 240HP 18tons diesel truck chassis has simple design, lightweight, and fuel-efficient as quality. The streamlined shape of the front of the cabin effectively reduces the wind resistance and reduces fuel consumption. This VC61 truck chassis uses a 6U engine model with a maximum 240HP 300 horsepower. 4×2 drive type and 6 wheels. The interior of the cabin is spacious and comfortable, we focus on reducing fatigue in driving.
Advantage:
- 100% custom-made
- ISUZU GIGA truck chassis, perfect performance
- ISUZU series engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Noise reduction van body.
- Massive, durable, long service life.
- 18Tons available
- Short delivery time 7~30 days
- Easy operation and easy maintenance
- 15 years of spare parts and technical support
- The new FTR model is based on Isuzu’s original world-leading quality 4HK1-TC50 with Japanese technology and has developed a Euro VI emission 4HK1-TCG60 engine.
- The in-line four-cylinder diesel engine has a maximum output of 205 horsepower and a maximum torque of 650 Nm. MLD-6Q six-speed manual gearbox adopts Isuzu technology, high-pressure common rail, precision electronic control, multi-stage injection, optimized combustion, exhaust gas recirculation, and two-stage fuel filtration to achieve high power, high torque, low fuel consumption, low emissions, and noise.
Specification:
| Vehicle Model | ISUZU GIGA VC61 240HP 18tons diesel truck chassis for sale | |
| Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 9000×2540×3055mm |
| Wheelbase: | 5600mm | |
| Front/ Rear Wheel Distance: | 2064/1855mm | |
| Front/Rear Suspension | 1370/2030mm | |
| Weights and Capacities | Curb Weight: | 7150kg |
| GVW: | 21000kg | |
| Axle Loads: | 8000/13000kg (Two-Axis Group) | |
| Engine | Engine Model: | 6UZ1-TCG50 |
| Max output: | 176Kw | |
| Displacement: | 7900ml | |
| Horsepower: | 240Ps | |
| Exhaust Gas Treatment Technology: | SCR | |
| Cabin | Number of Seats: | 2 |
| Cabin type | Standard Roof 1 Berth | |
| Chassis | Drive Type: | 4×2 |
| Tires: | 7(Including Spare Tire) | |
| Fuel tank | Capacity | 400L |
| Configurations | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | Central Lock | |
| 4 | Power Window | |
| 5 | ABS | |
| 6 | Driving Data Recorder | |
| 7 | Tubeless Tire | |
| 8 | Free Maintenance Battery | |
| 9 | Aluminum Alloy Gas Tank | |
| 10 | Air Suspension Cabin | |
| 11 | Air Suspension Seat | |
| 12 | Widened Bumper | |
ISUZU TRUCK CHASSIS Advantage:


Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.

Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection

Freight truck shipping:
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
