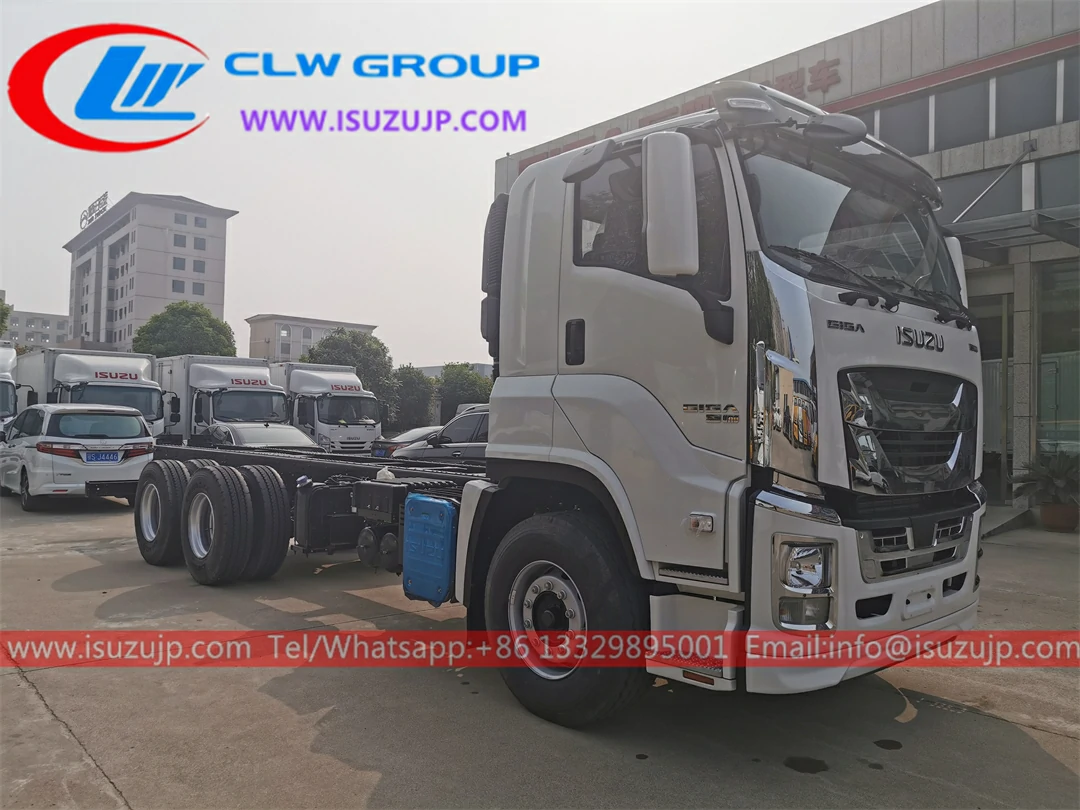

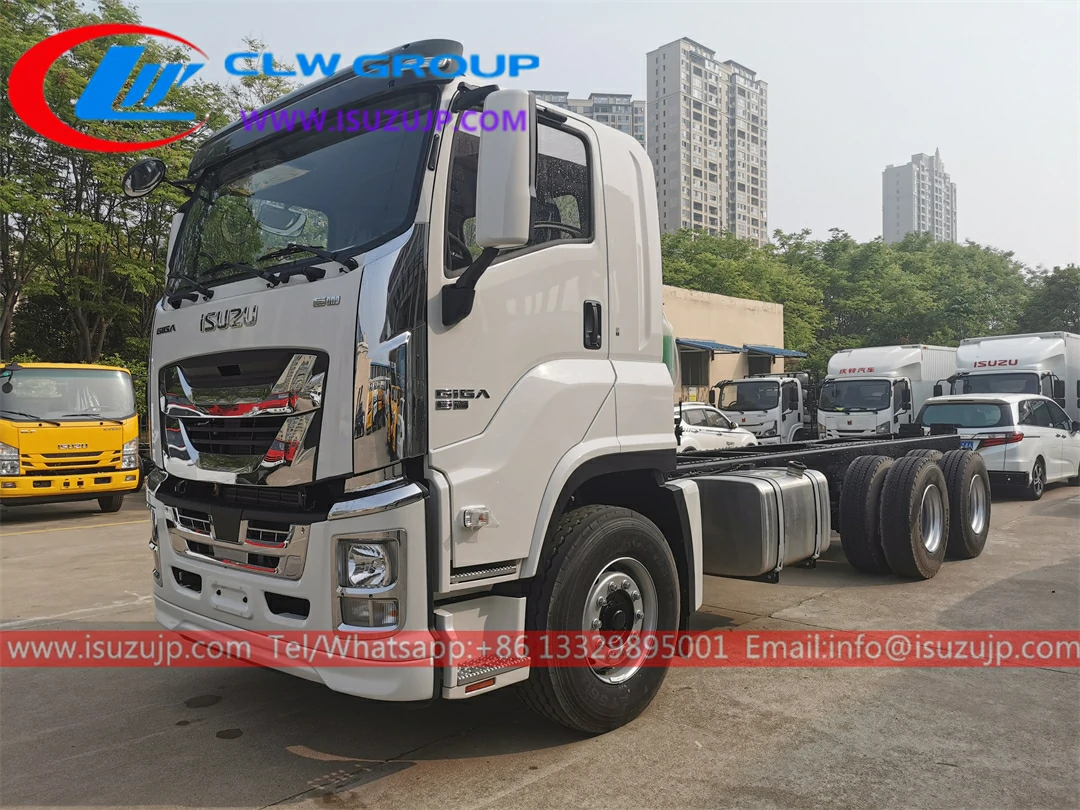

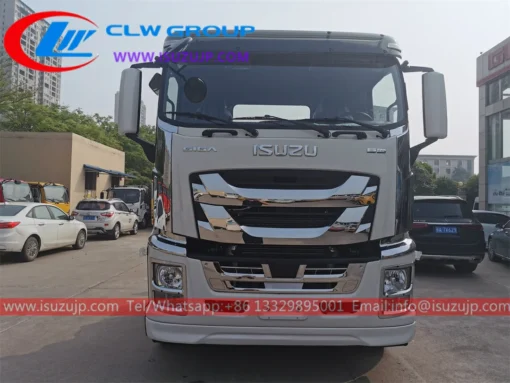

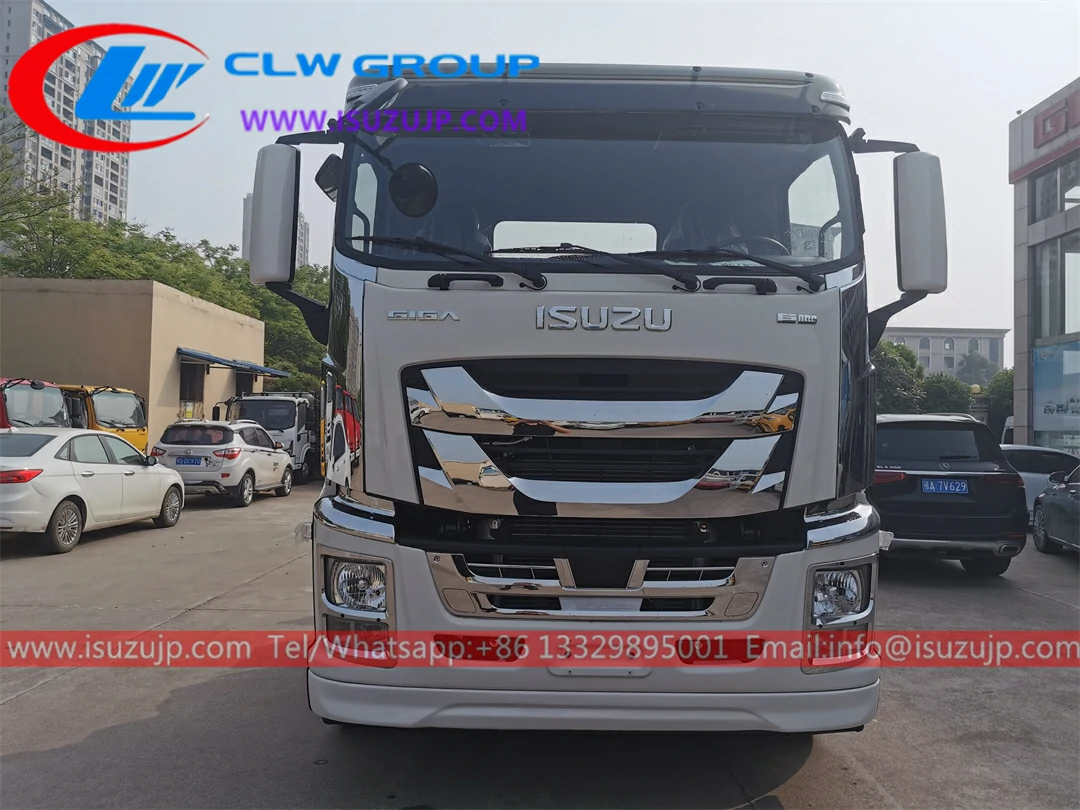

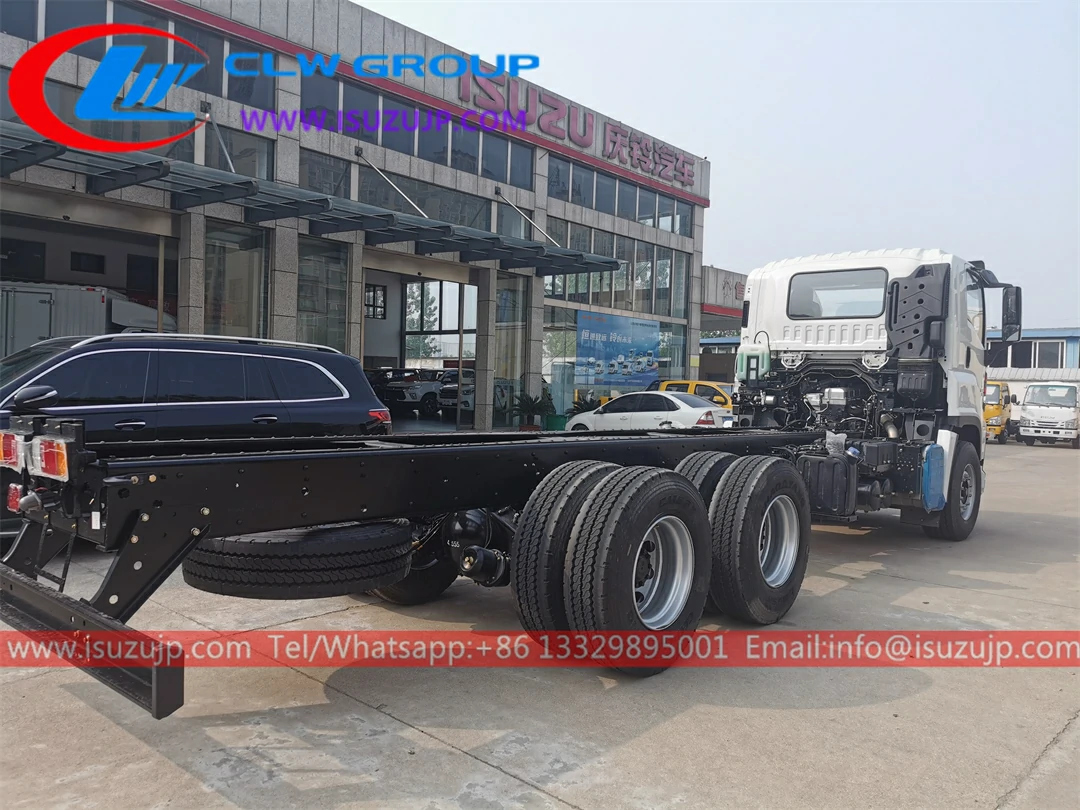

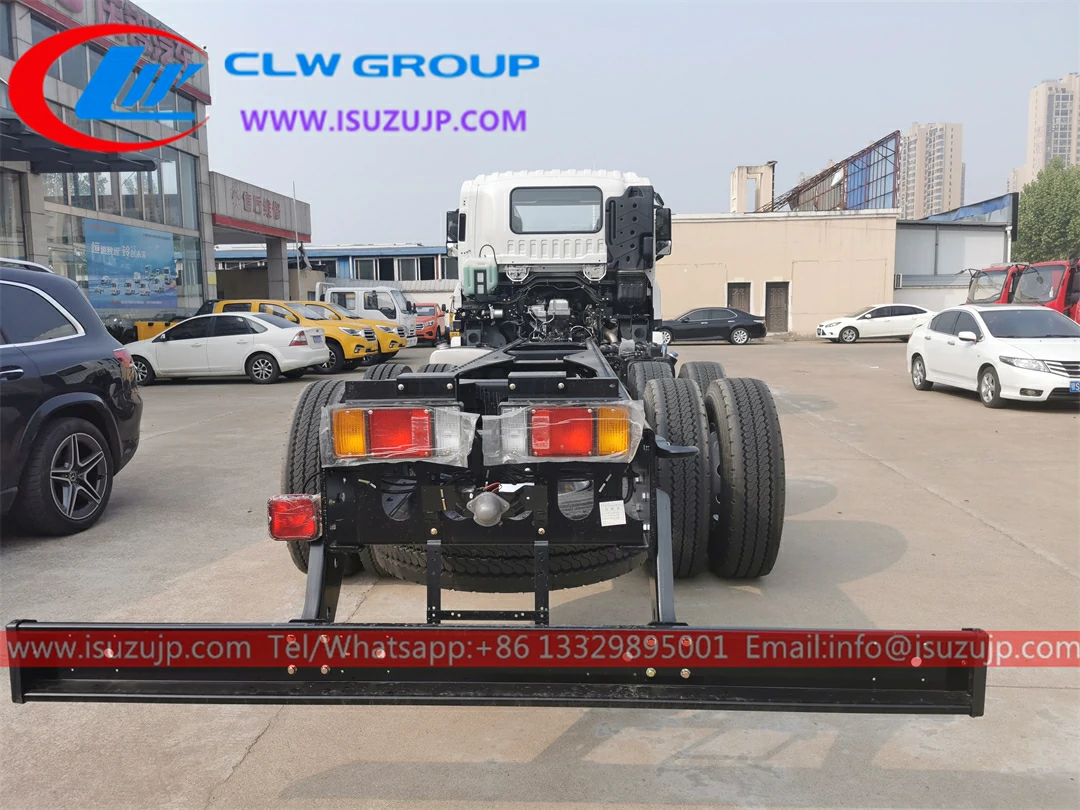

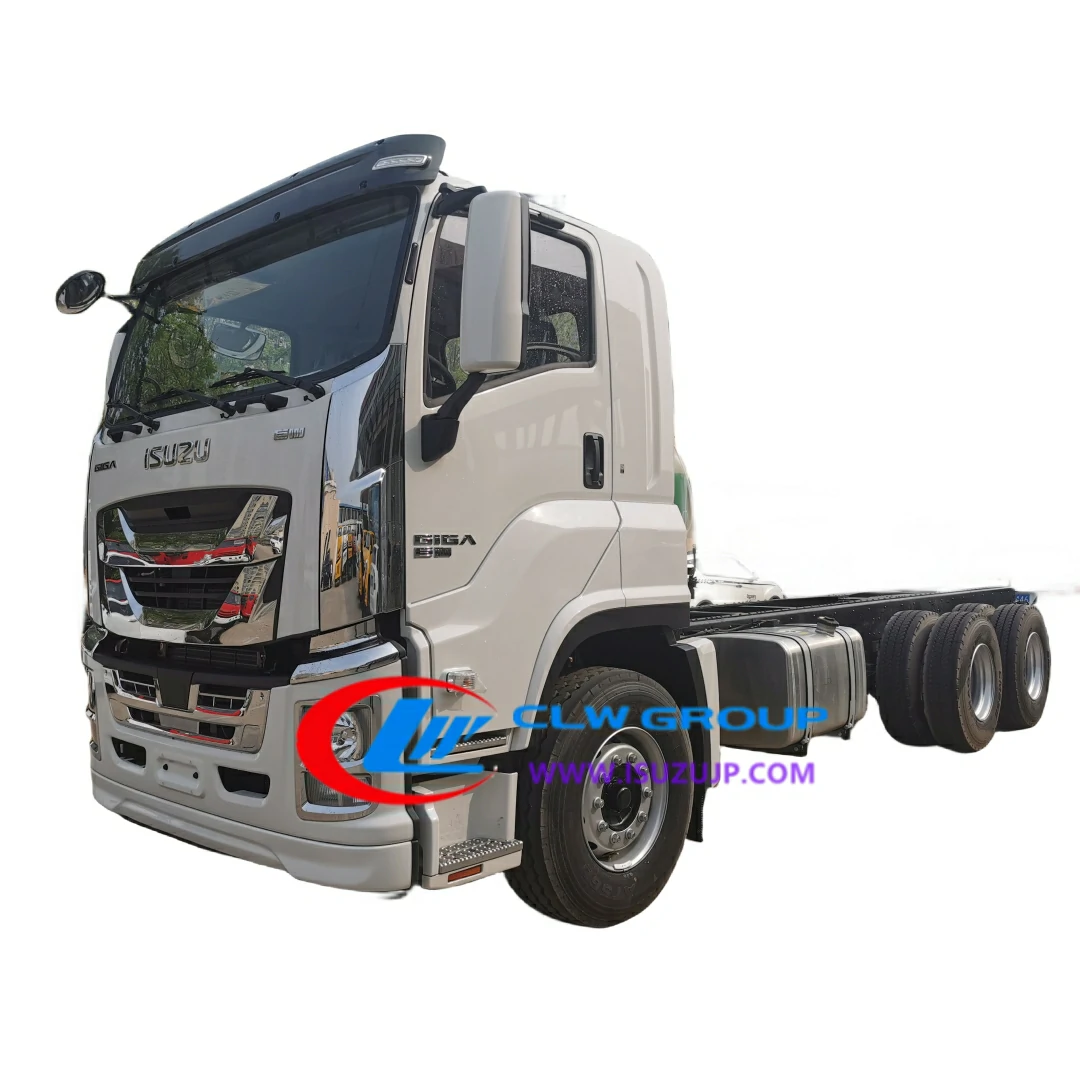

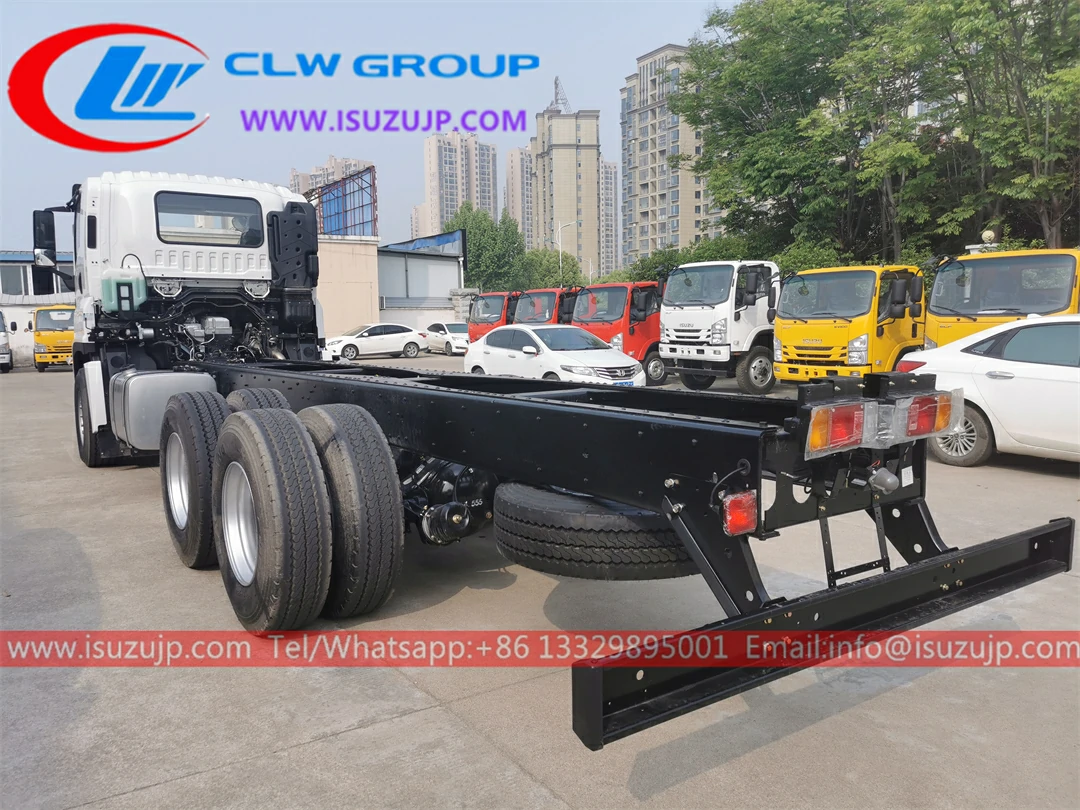

10 wheeler ISUZU GIGA 350hp 380hp 420hp 460hp 520hp heavy duty truck chassis Description:
10 wheeler ISUZU GIGA 350hp 380hp 420hp 460hp 520hp heavy-duty truck chassis has a simple design, is lightweight, and fuel-efficient as quality. The streamlined shape of the front of the cabin effectively reduces the wind resistance and reduces fuel consumption. This VC61 truck chassis uses a 6UZ1 engine model with a maximum of 300 horsepower. 6×4 drive type and 12 wheels. The interior of the cabin is spacious and comfortable, we focus on reducing fatigue in driving.
Advantage:
- 100% custom-made
- ISUZU GIGA truck chassis, perfect performance
- ISUZU series engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Noise reduction van body.
- Massive, durable, long service life.
- 18Tons available
- Short delivery time 7~30 days
- Easy operation and easy maintenance
- 15 years of spare parts and technical support
- The new FTR model is based on Isuzu’s original world-leading quality 6UZ1 with Japanese technology and has developed a Euro VI emission 4HK1-TCG60 engine.
- The in-line four-cylinder diesel engine has a maximum output of 205 horsepower and a maximum torque of 650 Nm. MLD-6Q six-speed manual gearbox adopts Isuzu technology, high-pressure common rail, precision electronic control, multi-stage injection, optimized combustion, exhaust gas recirculation, and two-stage fuel filtration to achieve high power, high torque, low fuel consumption, low emissions, and noise.
Specification:
| Vehicle Model | QL5330TZZU1VDZY | |
| Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 10000/11150×2540×3055mm |
| Wheelbase: | 5820+1370mm | |
| Front Wheel Distance: | 2065mm | |
| Rear Wheel Distance: | 1855/1855mm | |
| Front/Rear Suspension | 1370/2590mm | |
| Weights and Capacities | Curb Weight: | 9300kg |
| GVW: | 33000kg | |
| Axle Loads: | 7000/26000kg (Two-Axis Group) | |
| Engine | Engine Model: | 6UZ1-TCG51 |
| Max output: | 257Kw | |
| Displacement: | 9839ml | |
| Horsepower: | 350Ps | |
| Exhaust Gas Treatment Technology： | SCR | |
| Cabin | Number of Seats: | 2 |
| Cabin type | Standard Roof 1 Berth | |
| Chassis | Drive Type: | 6×4 |
| Tires: | 11(Including Spare Tire) | |
| Fuel tank | Capacity | 400L |
| Configurations | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | Central Lock | |
| 4 | Power Window | |
| 5 | ABS | |
| 6 | Driving Data Recorder | |
| 7 | Tubeless Tire | |
| 8 | Free Maintenance Battery | |
| 9 | Aluminum Alloy Gas Tank | |
| 10 | Air Suspension Cabin | |
| 11 | Air Suspension Seat | |
| 12 | Widened Bumper | |
ISUZU TRUCK CHASSIS Advantage:
Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Freight truck shipping：
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
