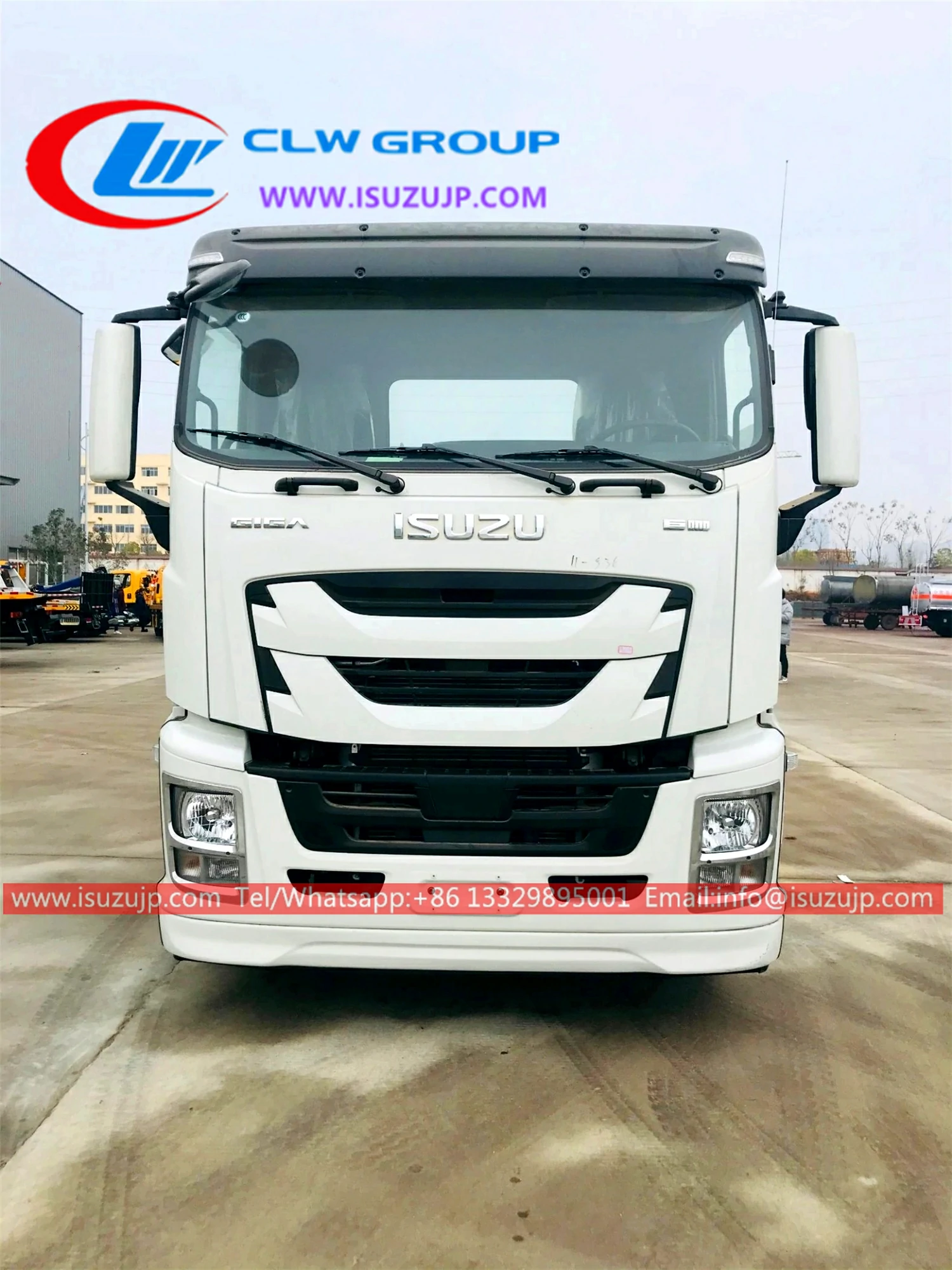

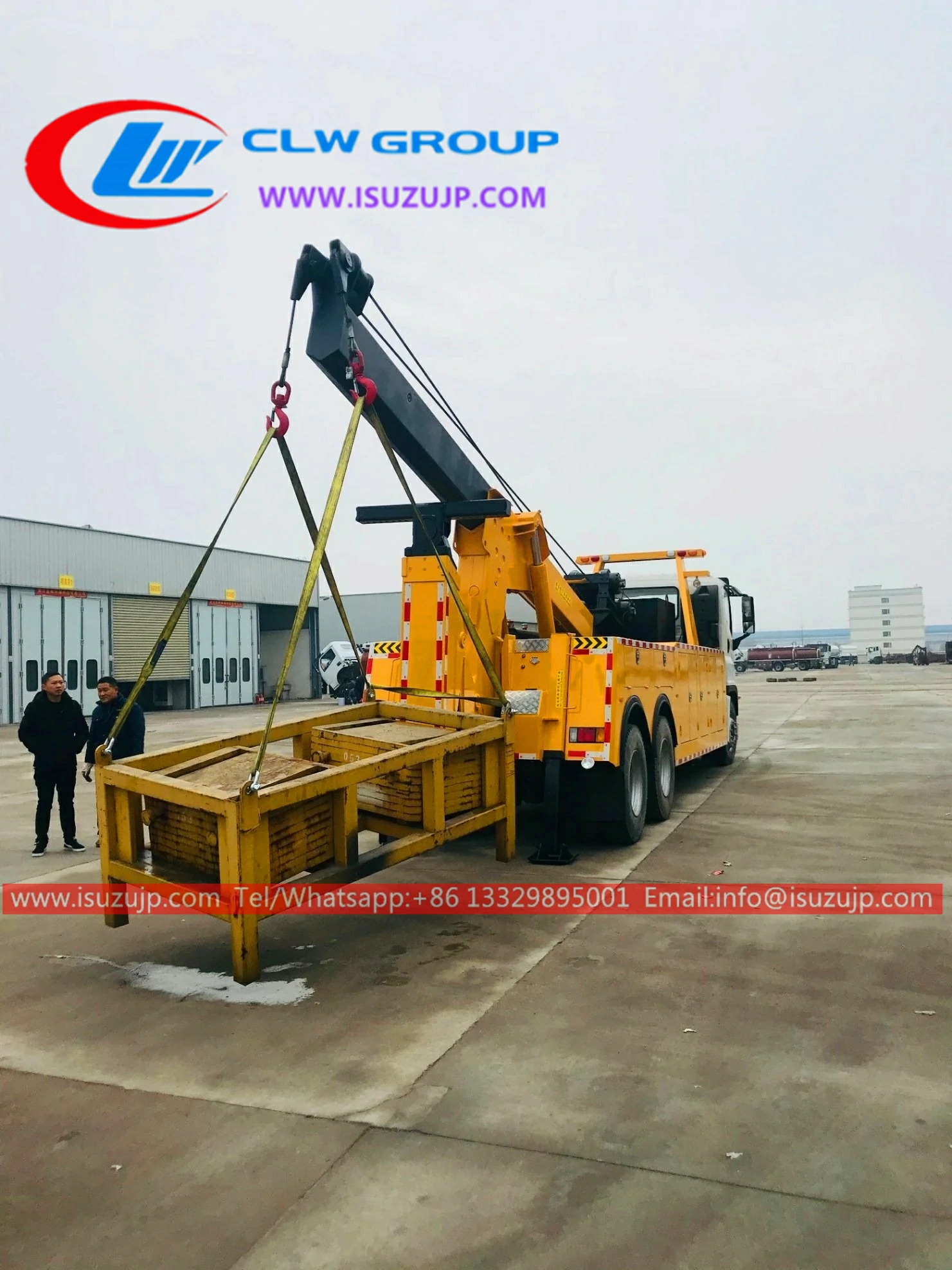

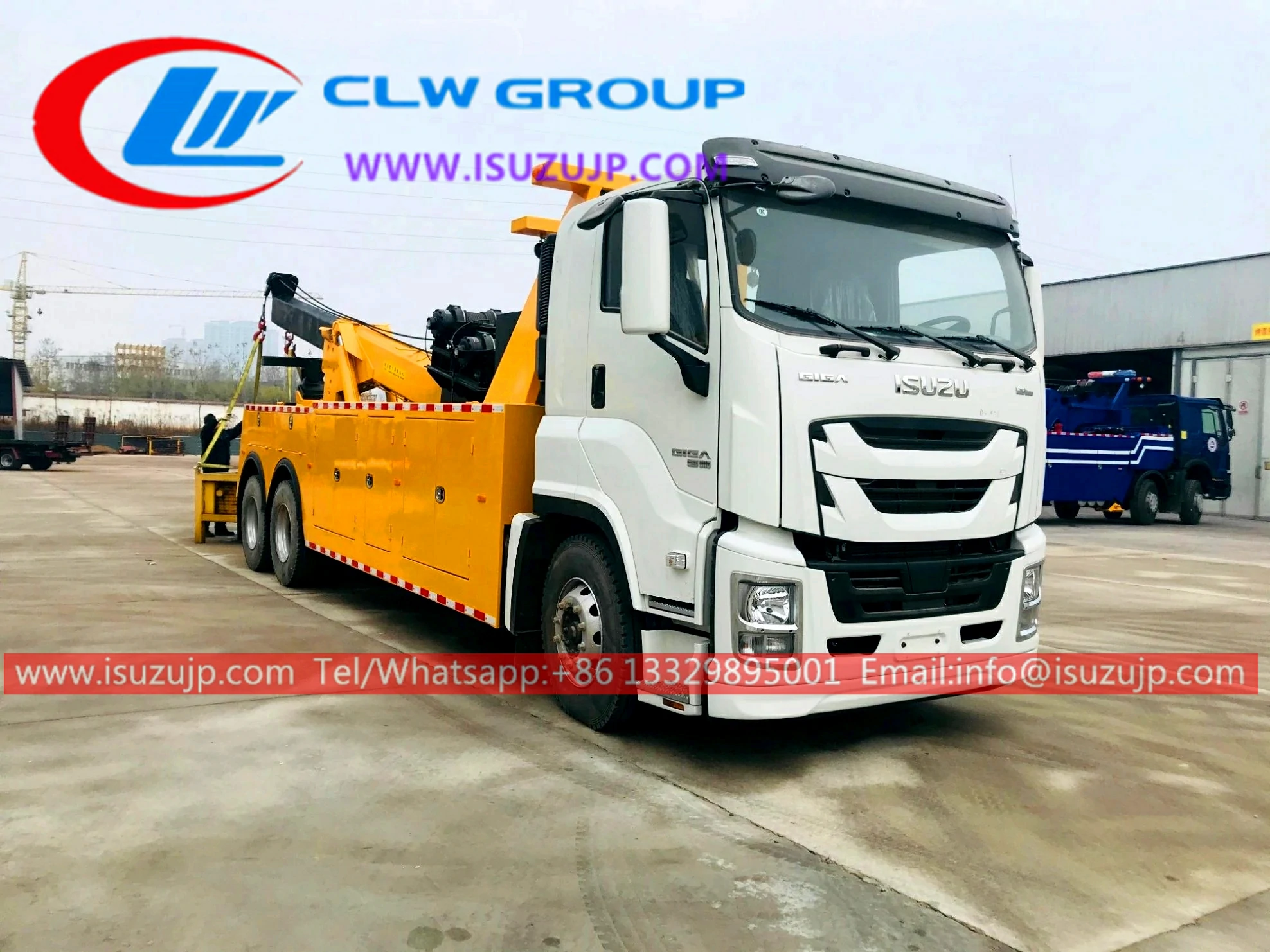

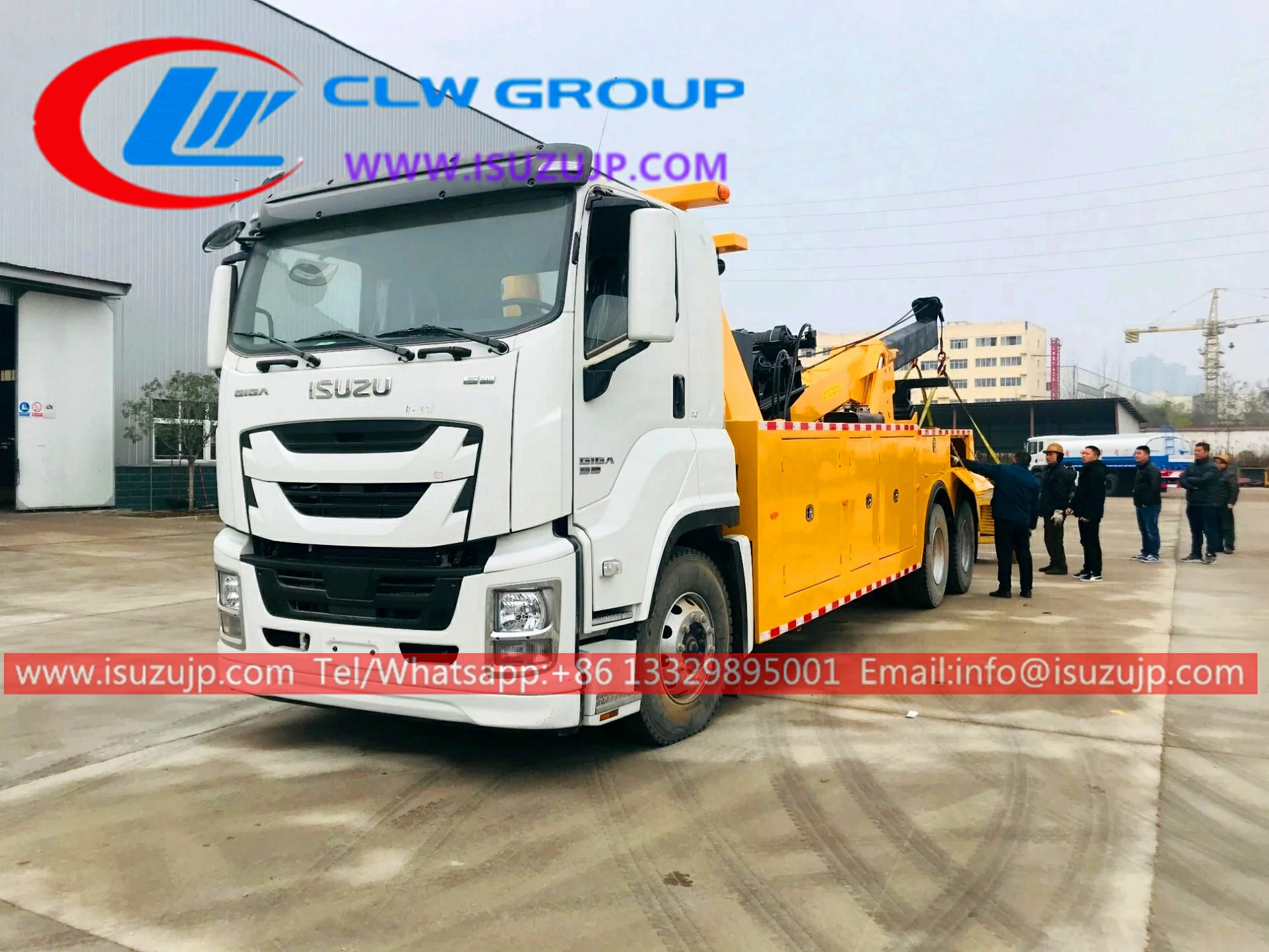

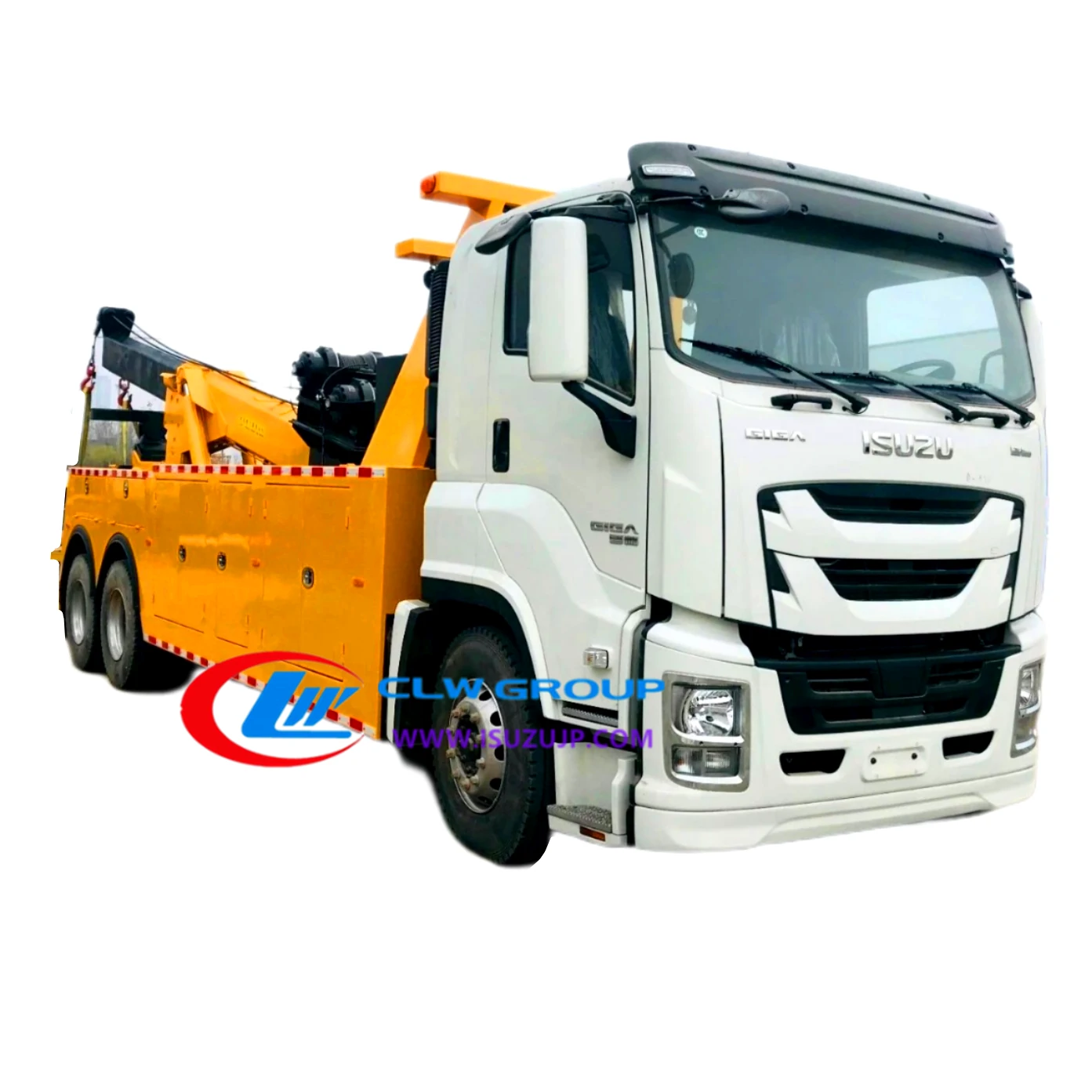

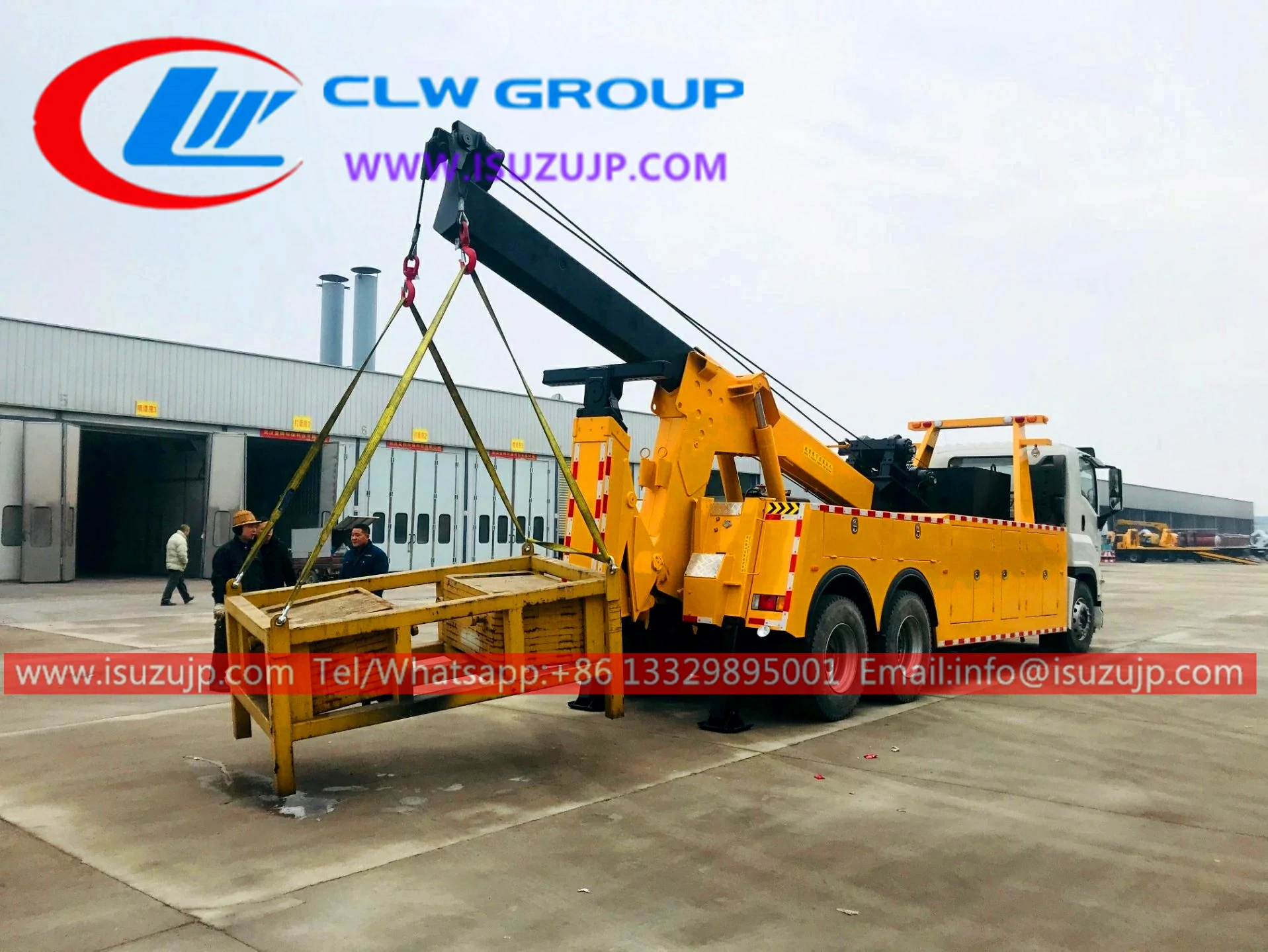

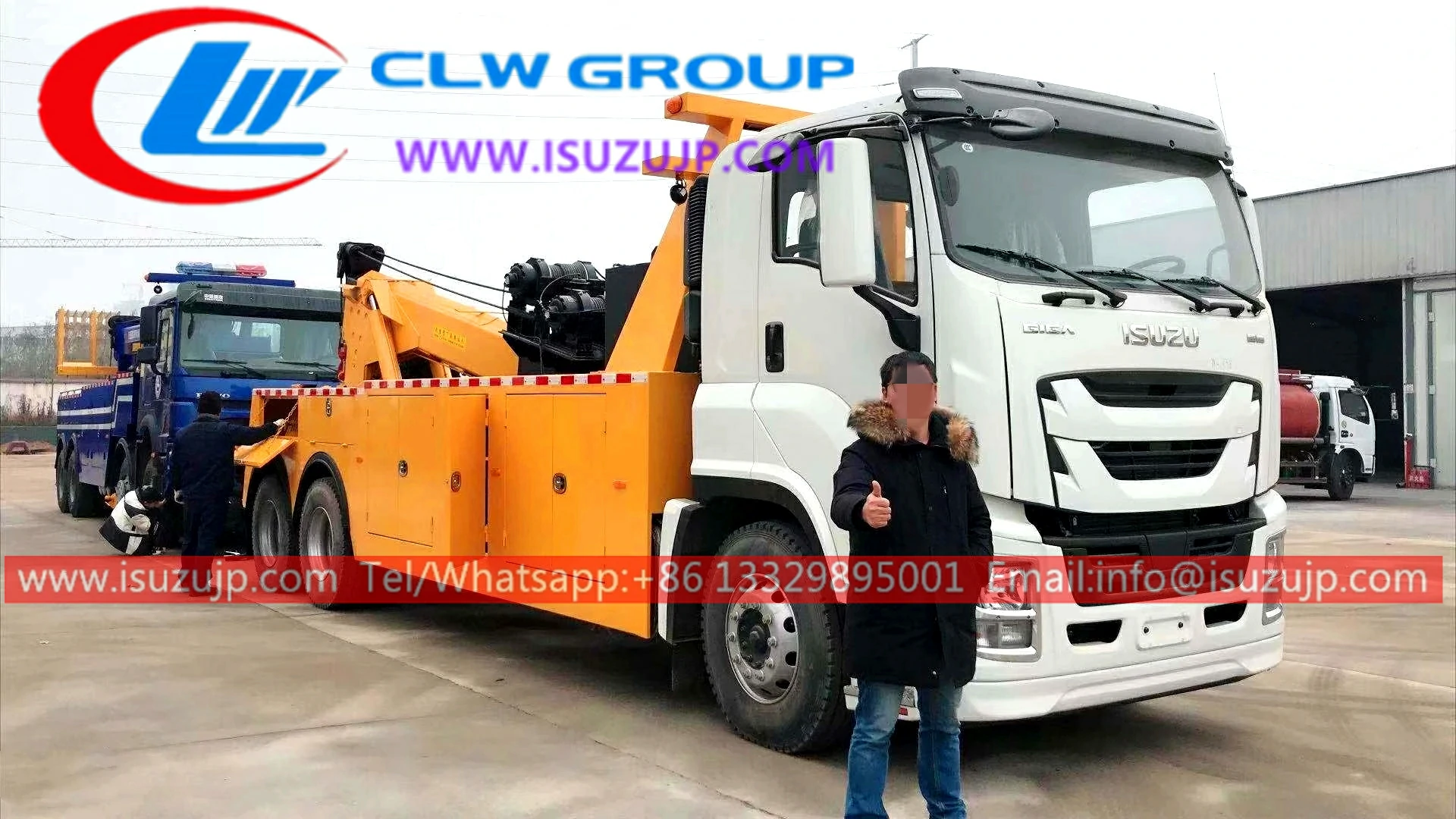

ISUZU GIGA 20 ton rotator wrecker Description:
- ISUZU GIGA 20 ton rotator wrecker also called multi-function towing truck, breakdown truck, recovery truck, breakdown lorry, wrecker, police rescue truck, flatbed tow truck, boom truck, wheel-lift wrecker
- is used to transport motor vehicles or vehicles that are broken down.
- can supply recovery trucks with capacity from 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons,30ton,40ton,50tons.Towing capacity is optional.
Advantage:
- 100% custom-made
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- 3 Ton to 50 Tons available
- Short delivery time 7~30 days
- A telescopic boom crane or Knuckle boom crane can be optional.
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency systems, etc.
- Easy operation & Easy maintenance
Specification:
| SPECIFICATION FOR BOOM | ||||
| Max Lifting Capacity(kg) | 20000 | |||
| Max. lifting height (mm) | 6060 | |||
| Max. tilting angle of boom (°) | 30 | |||
| Rating pulling force of winch(Ton) | 20 | |||
| Quantity of winch (unit) | 2 | |||
| SPECIFICATION FOR UNDERLIFT | ||||
| Max. lifting mass (kg) | 20000 | |||
| Rating lifting mass (kg) | 7500 | |||
| Rating lifting mass fully extended(kg) | 4600 | |||
| Max effective length of underlift(mm) | 3775 | |||
| Extension stroke(mm) | 2090 | |||
| SPECIFICATION FOR CHASSIS | ||||
| Dimension(Lx W xH)(unloaded)(mm) | 10370×2496×3250 | |||
| Approaching angle/Departure angle(°) | 16/18 | |||
| Overhang(front/rear) (mm) | 1500/1670 | |||
| Wheel base (mm) | 5800+1400 | |||
| Max speed(km/h) | 102 | |||
| Curb weight(kg) | 19170 | |||
| Engine(Steyr technology, made in China) | Model | 6UZ1-60,water-cooled,four strokes,6 cylinders in line with water cooling, turbocharged and intercooling, directly injection | ||
| Fuel type | Diesel | |||
| Power, max(kw/rpm) | 350HP | |||
| Emission | EURO V | |||
| Fuel tanker capacity(L) | 400L aluminum oil tank | |||
| Transmission | Model | FAST 12 speeds forward and 1 reverse | ||
| Brake system | Service brake | Dual circuit compressed air brake | ||
| Steering system | Model | ZF8118 | ||
| Front axle | 7T | |||
| Rear axle | 26T | |||
| Tire | 12.00R20 (Radial Tyre) | |||
| Electrical system | Battery | 2X12V/165Ah | ||
| Alternator | 28V-1500kw | |||
| Starter | 7.5Kw/24V | |||
| Cabin | GIGA New face cab(one bed,with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. | |||
ISUZU flatbed tow truck Flatbed recovery vehicle Advantage:
- Loading surface of the platform is formed by stamping die once.
- Endurance is strong and the shape is not deformed.
- Plate surface is smoother, the structure is more professional and the strength is higher.
- Hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
- It integrates multiple functions such as lifting, carrying, dragging, pulling and so on.
- Hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
Flat Wrecker truck Structure:
Police rescue truck operations and parts picture:
ISUZU recovery wrecker tow truck details：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
