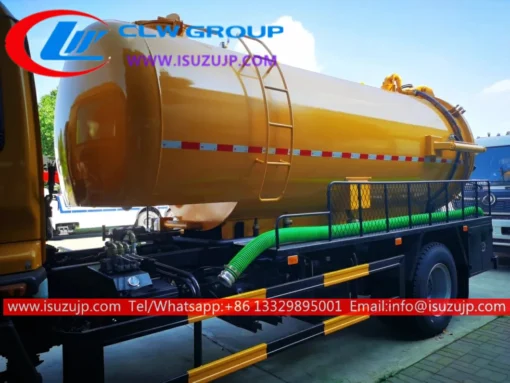

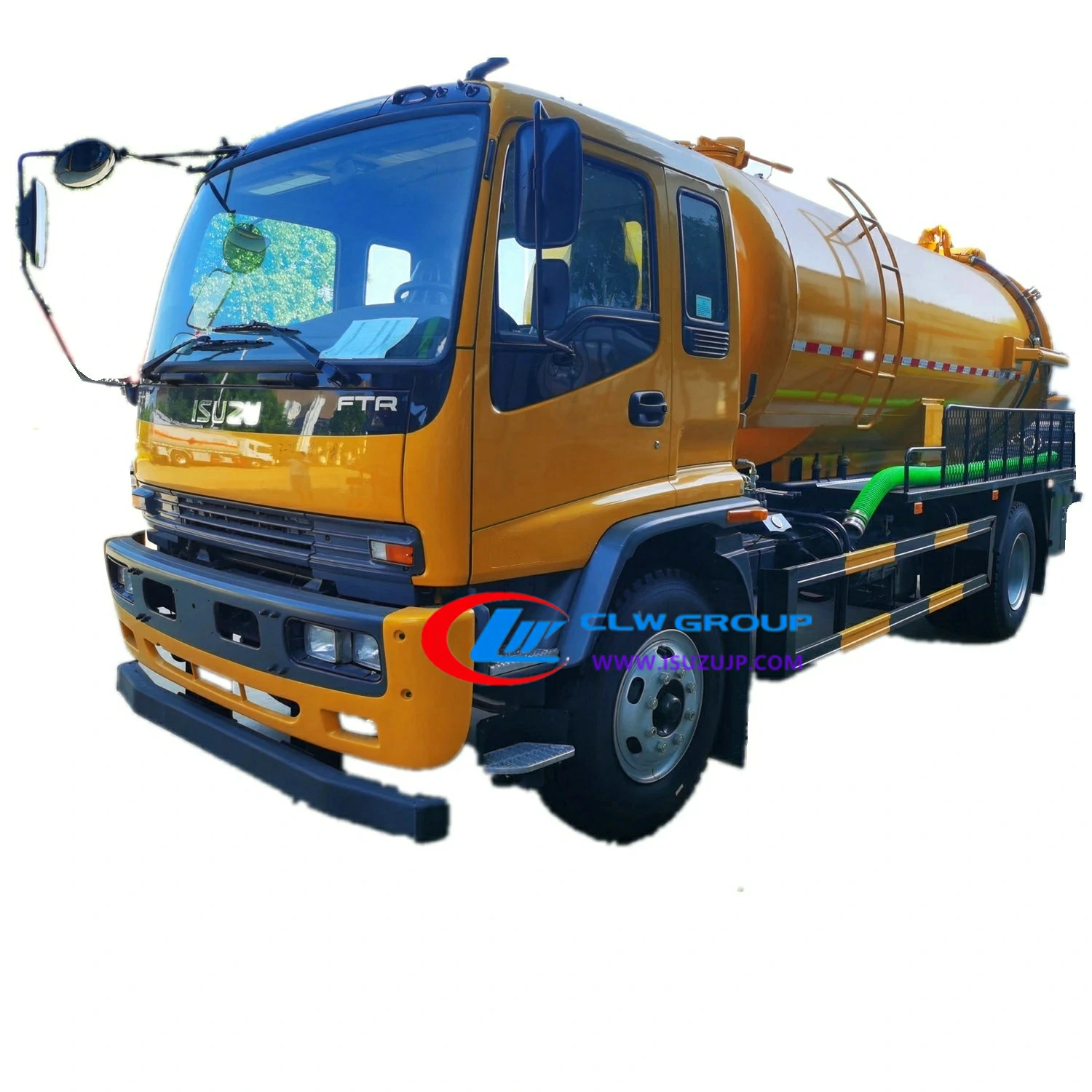

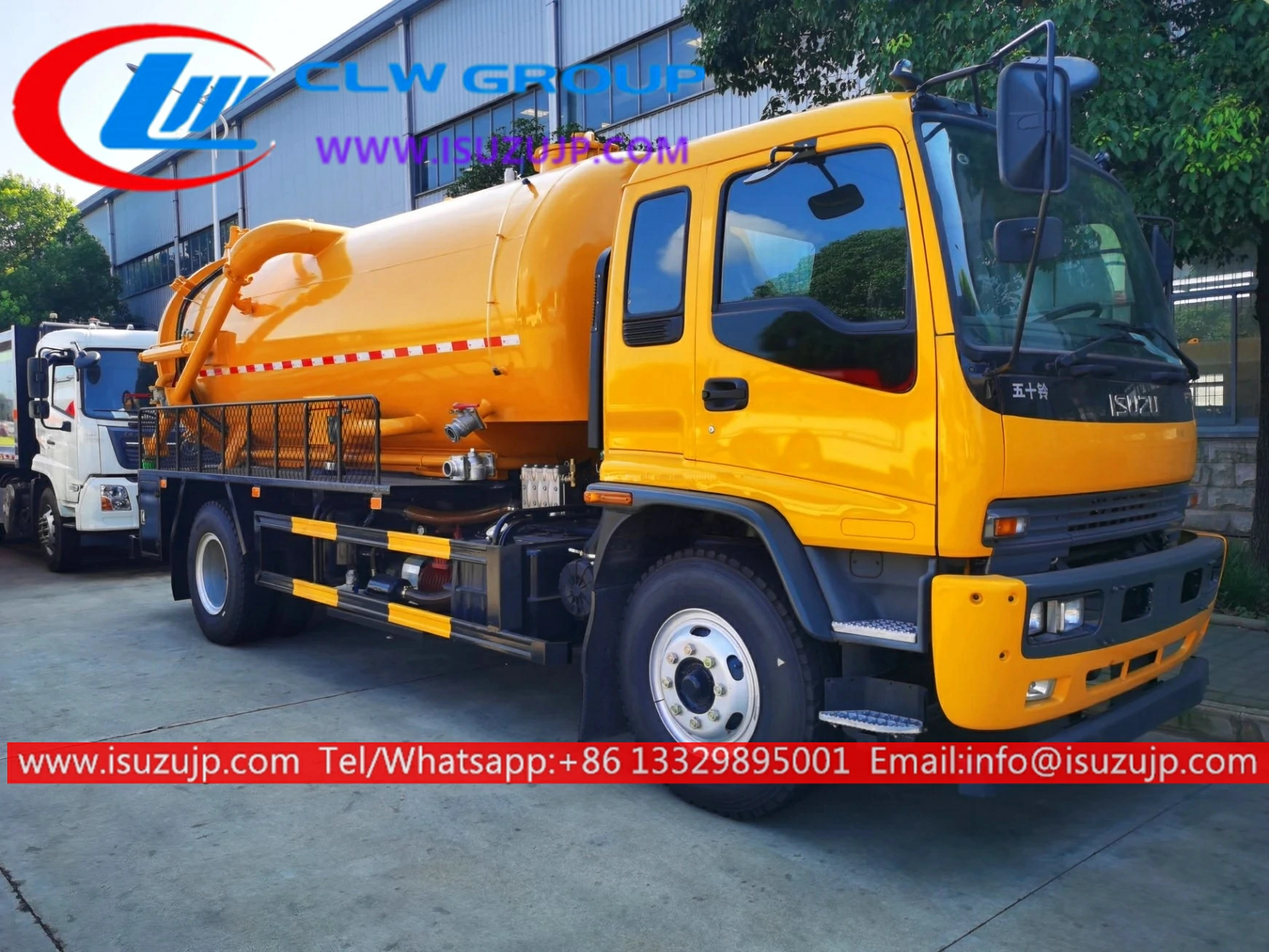

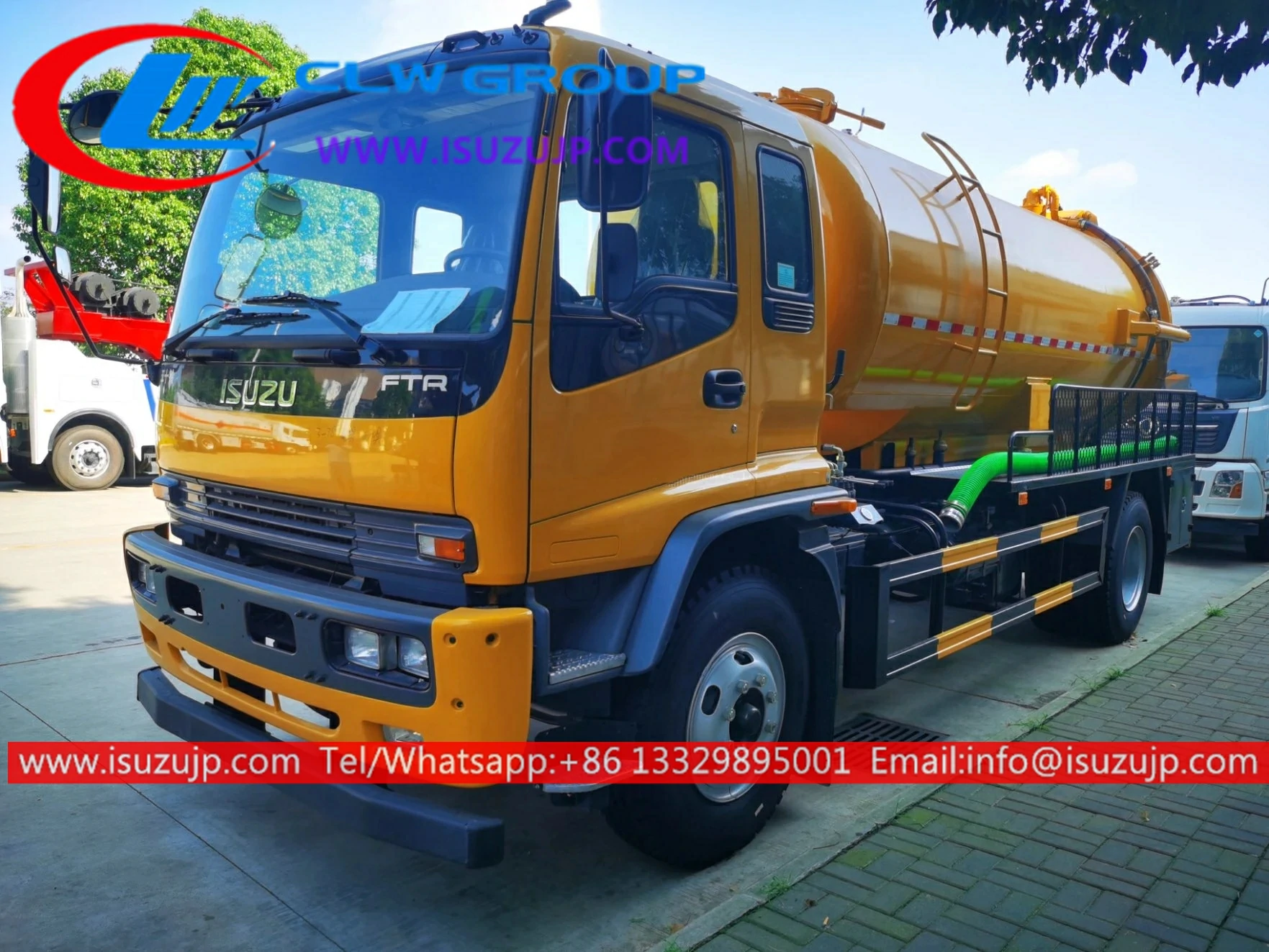

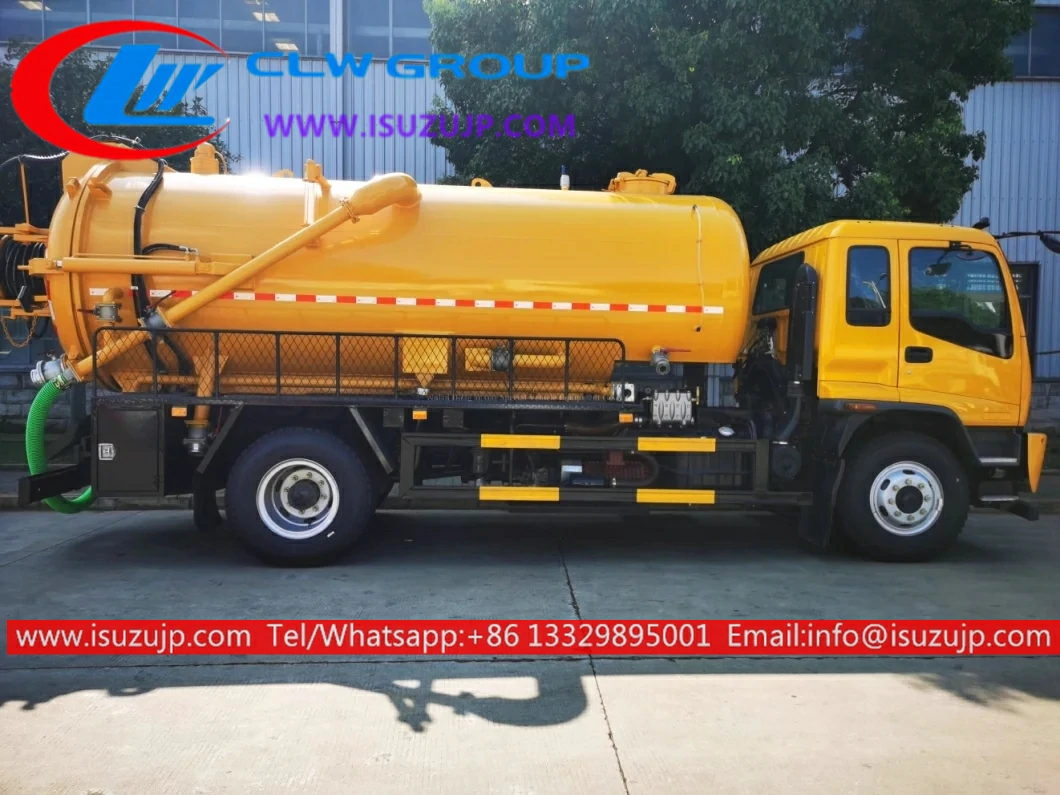

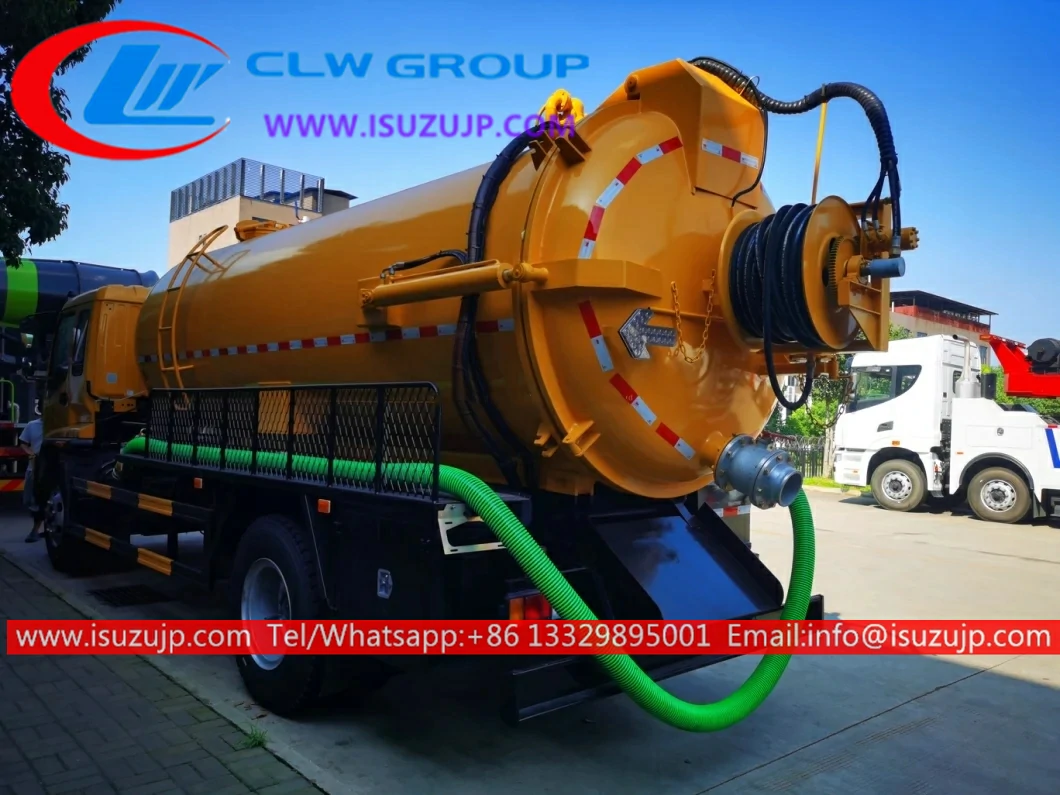

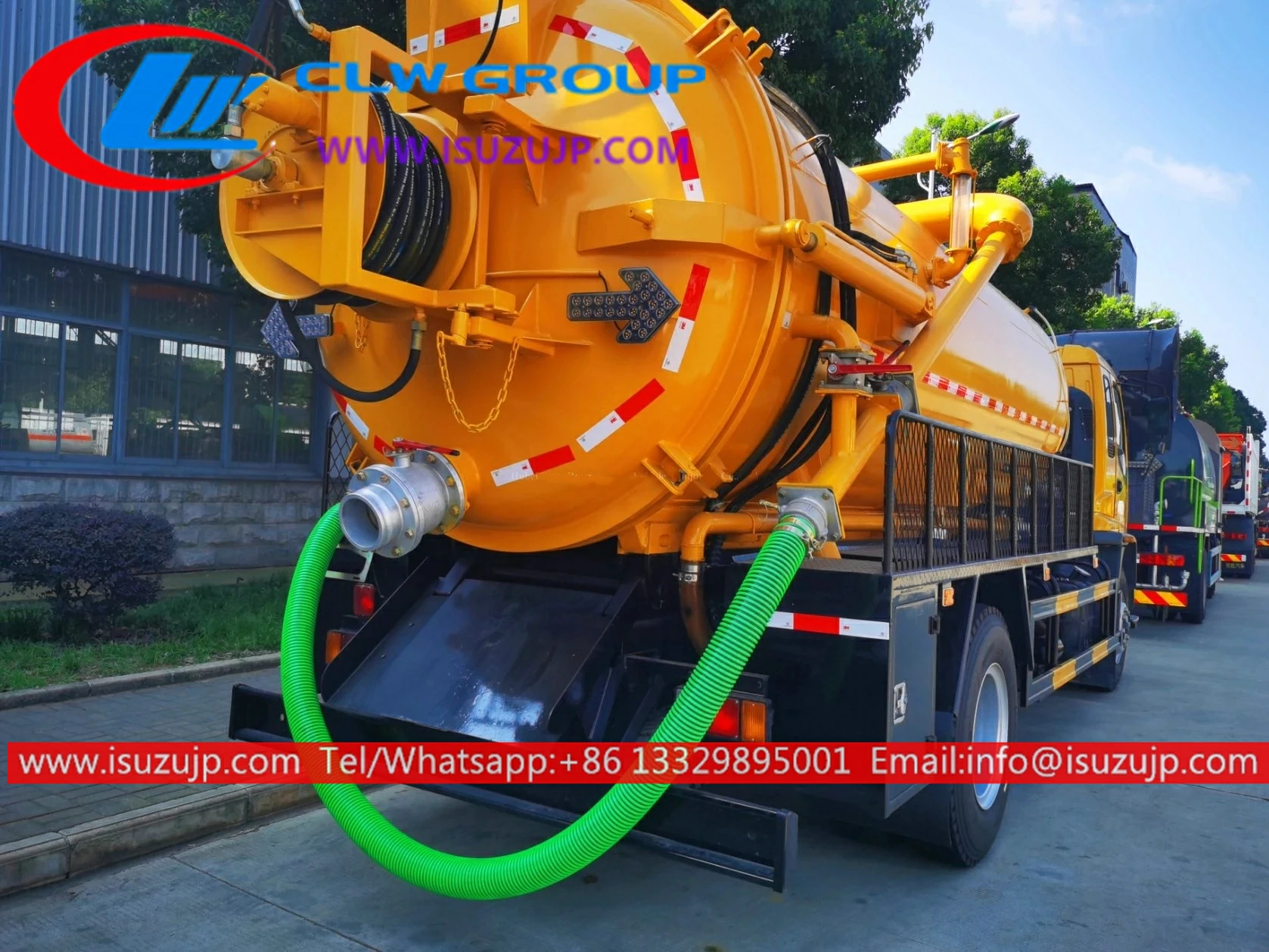

ISUZU FTR 12 ton combined jetting truck Description:
- ISUZU combined jetting truck also called Combined jet vacuum truck, suction jetting truck, combination sewer cleaner, combined jet suction truck, jetting and vacuum truck, vacuum and jet vehicle, combine jetting / sucker truck
- Fecal suction truck is a vehicle that is designed to clear any blockage with jetting nozzles moving in sewage pipeline under high pressure, and clear sewer drain lines by means of a powerful vacuum suction to suck all water plus mud from sewer hole. This truck is widely used for environmental protection.

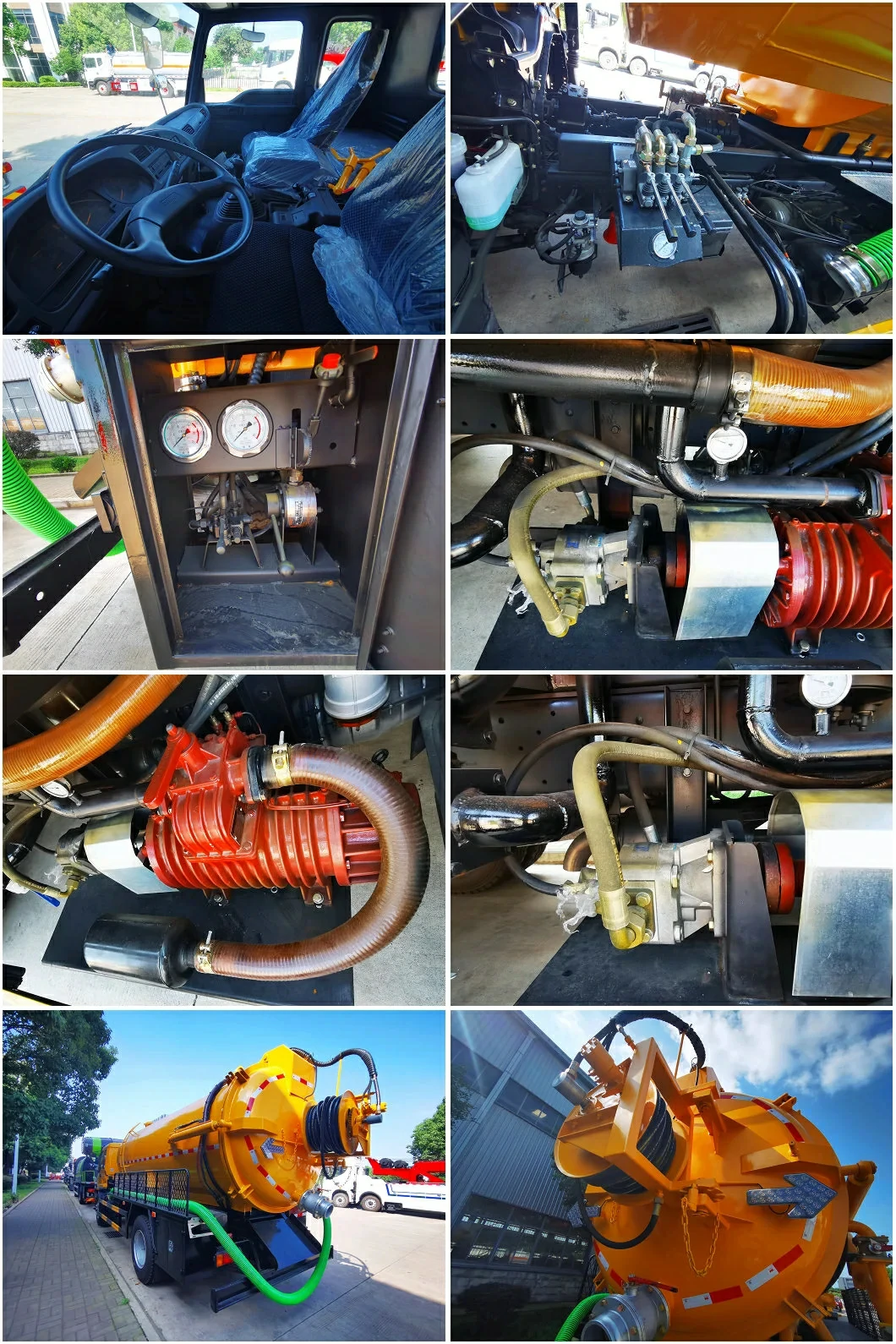

- ISUZU combined vacuum jetting truck carry a high pressure pump, a water tank, high-pressure hoses and nozzles; also vacuum, vacuum tanker, suction pipeline. and can be mounted on chassis 4×4, 4×2, 6×4, 6×6, etc
Advantage:
- 100% custom-made
- 5,000L to 22,000L available
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU FTR chassis, perfect performance
- ISUZU technology engine option, super powerful, no overhaul within 500,000 km.
- Optional Italy imported high pressure pump, super powerful, efficient pump in and out
- Famous Chinese brand vacuum pump, effective and dur
- High pressure cleaning hose with automatic reel
- Strong, durable, perfect performance
Specification:
| ISUZU FTR 12 ton combined jetting truck(12000liters) | |||
| General | Vehicle Brand | CHENGLI | |
| Chassis Brand | ISUZU FTR | ||
| Overall Dimension | 8200X2500X3300 mm | ||
| GVW / Kerb Weight | 18,000kg / 8,900kg | ||
| Cab | Cab Capacity | 2 persons allowed | |
| Air Conditioner | Heating/cooling air conditioner | ||
| Engine | Fuel Type | Diesel | |
| Engine Brand | ISUZU | ||
| Power | 205 HP (151 KW) | ||
| Displacement | 5193 ml | ||
| Emission Standard | Euro V | ||
| Chassis | Drive Type | 4X2, (left hand drive) | |
| Transmission | Manual MLD 6 speed levers with 1 reverse | ||
| Wheelbase/No. of axle | 4500 mm / 2 | ||
| Tire Specification | 10.00-20 | ||
| Tire Number | 6 tires and 1 spare tire | ||
| Max Speed | 95 km/h | ||
| Paint | Metallic paint | ||
| Superstructure | Water Tanker System | Tank capacity | 4,000 Liters |
| Tank material | Carbon steel | ||
| High pressure pump | Germany PINFL VX36 model | ||
| Flow speed | 120L/min | ||
| High pressure hose | High pressure hose 60m long | ||
| Auto reel | Auto hose reel | ||
| Suction head | 6m | ||
| Nozzles | A cluster of nozzles included | ||
| Sewer Tanker System | Tank capacity | 9,000 Liters | |
| Tank material | Carbon steel | ||
| Vacuum pump | Italy JUROP pump PN106D, High efficient, vacuum rate over 93%, quick suction and discharge, suction lift 6m | ||
| Rear door can be hydraulic open / close for complete discharge of solid stuff | |||
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | |||
| Optional | Tank material could be stainless steel. High pressure hose length could be customized. | ||
Working parameter:
| Dredge function | Sewage suction function | ||
| High-pressure pump brand | Tianjin Tongjie standard, Germany Pinfu optional | Vacuum pump brand | Veyron is standard, Shandong water ring pump is optional |
| Drive method | Chassis engine + sandwich power take-off | Drive method | Power take-off, Weichai 340-420 vice machine |
| Dredge stress | 16-24 Mpa | Suction pressure | -0.3Mpa |
| Dredge traffic | 75-275 liters per minute | Exhaust flow | 6-35 cubic meters |
| High pressure tube length | Standard 80 meters, can add 40 meters | Sewage pipe length | Standard one 8 meters, can add 4 |
| High pressure nozzle | Standard 10 nozzles with different functions | Blowdown method | Air blowdown + tank tail flow + lift dump |
| Coil reel | Hydraulic rotation + labor saving + tube self-cleaning | Tank material | Carbon steel Q345, stainless steel 304 |
| Antifreeze measures | Pneumatic blowing or vacuum suction | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Jug location | Hanging water tank on both sides, front tank of sub-bin | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Optional configuration | Liquid full alarm, liquid full stop, anti-corrosion treatment in tank, solid-liquid separation filter cartridge + hydraulic twist | ||
New craft:
Optional configuration:
Toilet suction truck composition structure:
Fecal tank truck technical training support:
Vacuum fecal trucks part, tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Toilet liquid tanker vehicle truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Septic tanker Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Shipping：
- Maximize your hipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
