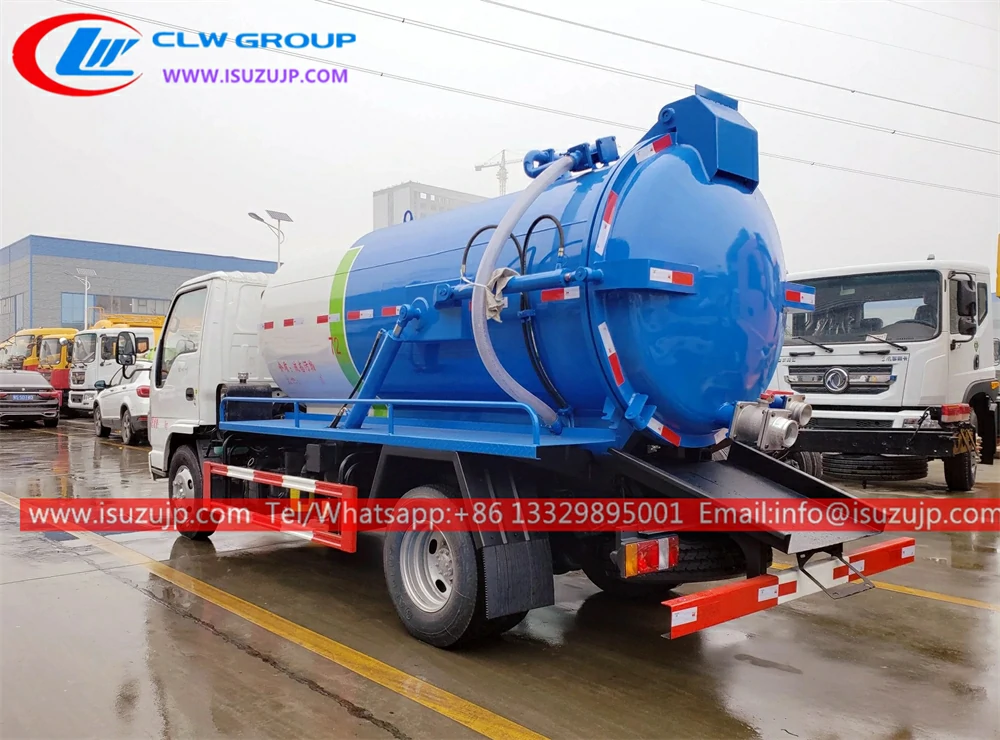

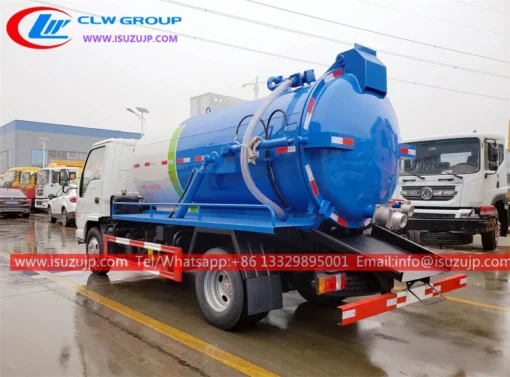

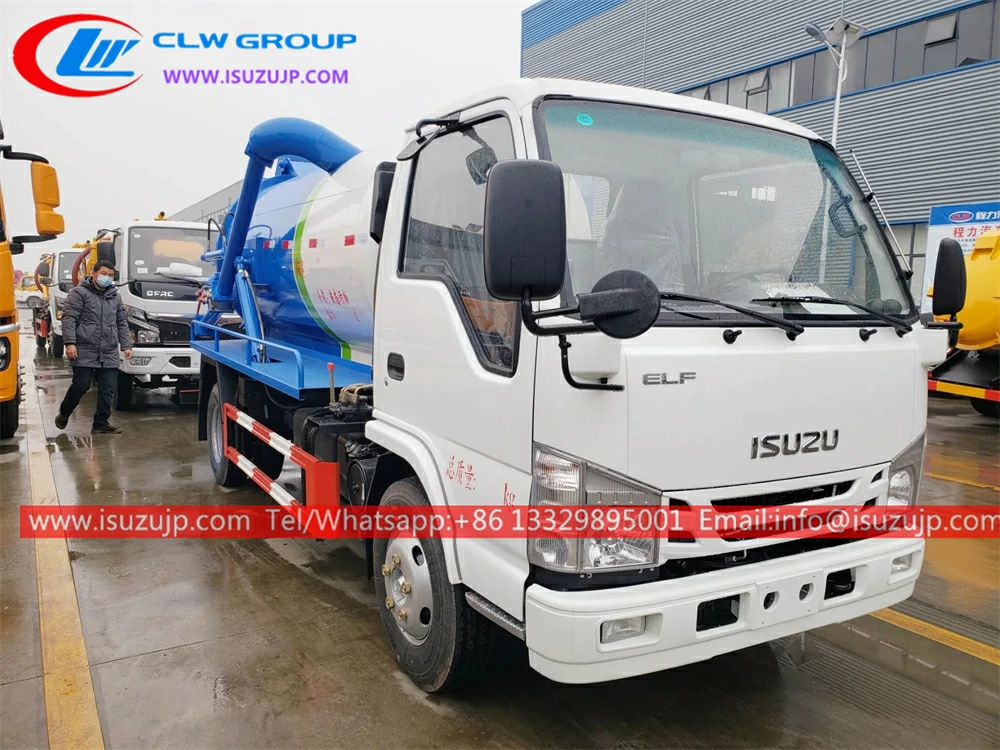

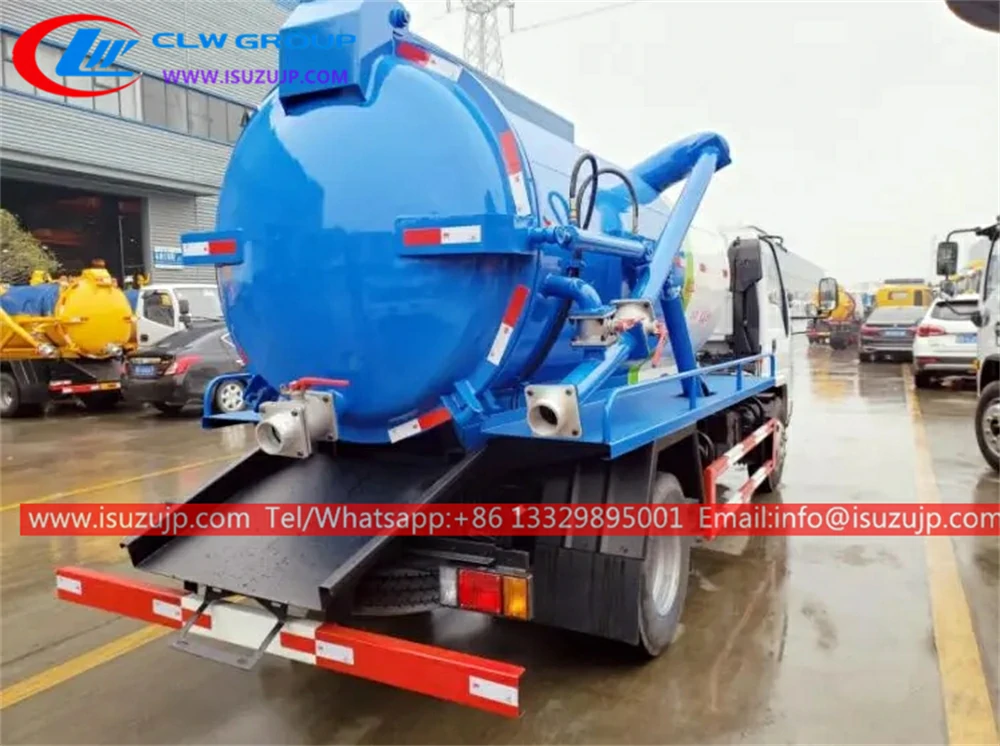

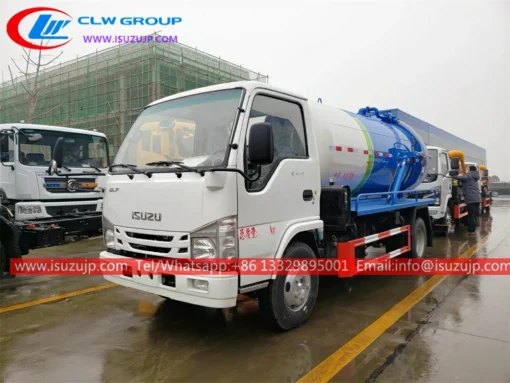

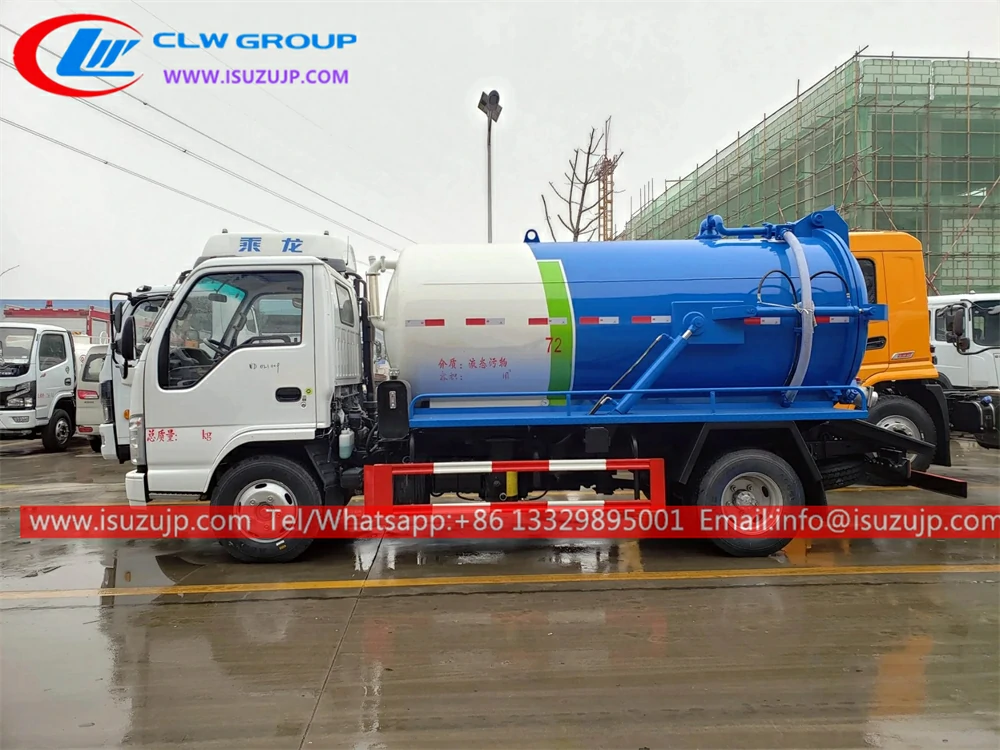

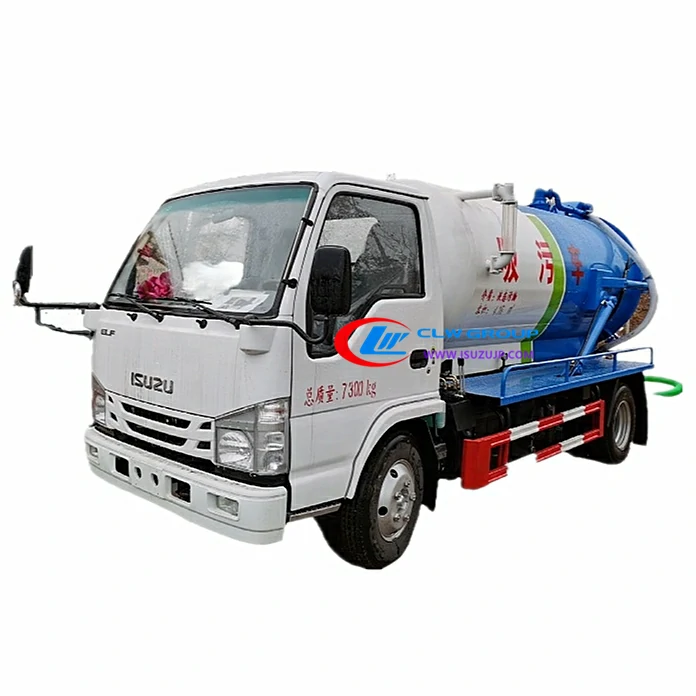

ISUZU ELF 5000liters small sewage vacuum truck Description:
- Isuzu sewage vacuum truck also called suction vacuum truck, vacuum vehicle, sewage tank truck, Sewage disposal tank trucks, vacuum tank trucks,sewer tanker trucks.
- Vacuum sewage suction truck is used for suction, transportation and dumping soil and mud from various sewer man-hole, water wells and sediment.
Advantage:
- 100% custom-made
- 3,000L to 30,000L available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU ELF 100P chassis, perfect performance
- ISUZU technology engine option, super powerful, no overhaul within 500,000 km.
Specification:
| ISUZU ELF 5000liters small sewage vacuum truck | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6000X2000X2600 mm | |
| GVW / Kerb Weight | 7,300kg / 3,900kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU 4JB1CN | |
| Power | 98 HP (72 KW) | |
| Displacement | 2771 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, (left hand drive) |
| Transmission | MSB Manual 5-shift speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tire Specification | 7.00-16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 5,000 Litres (4 TON) |
| Tanker Material | Carbon Steel | |
| Suction Head pipeline | 7 m | |
| Vacuum Pump brand | WEILONG / Italy BP / Domestic Pump | |
| Vacuum Pump advantage | High efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m | |
| Hose | High quality, wire strengthened hose | |
| Control panel | English or Your language | |
| All standard accessories: Inlet pipeline, discharge nozzle, cabin pneumatic control box, basic tool kit, English manual…… | ||
| Optional | Back alarm and Camera can be equipped. Standard carbon steel, stainless steel optional. Standard WEILONG vacuum pump, Italy vacuum pump optional | |
Working parameter:
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
New craft:
Optional configuration:
vacuum tank truck composition structure:
Detail drawing:
Sewer cleaning truck technical training support:
Sewage tanker truck part,tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Sewer truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
