Qingling 4WD 4×4 ISUZU NPR all terrain 8tons truck chassis Description:
4WD 4×4 ISUZU NPR all terrain 8tons truck chassis is Light Duty Truck is from China ISUZU, and its 4HK1-TC51 engine is form Japan which named 700P in China. Horsepower is 190HP. It can payload 7tons. The transmission is Manual MLD-6Q, with 6 froward gear and 1 backward gear. It has 6 wheels. Recognized for its outstanding combination of economy, safety, reliability and durability, it is a very popular light truck in many countries.
Advantage:
- 100% custom-made
- ISUZU 700P truck chassis, perfect performance
- ISUZU series engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Noise reduction van body.
- Massive, durable, long service life.
- 5Tons available
- Short delivery time 7~30 days
- Easy operation and easy maintenance
- 15 years of spare parts and technical support
Specification:
| Truck Brand | 4WD 4×4 ISUZU NPR all terrain 8tons truck chassis |
| Driving Type | Left/Right Hand Drive |
| Overall Dimension（L*W*H） | 5995/6995/7995/8800*2200*2610mm |
| GVW | 10500Kg |
| Curb Weight | 3380Kg |
| Axle loading: | 3350/6650Kg |
| Wheelbase | 3815mm |
| F/R Track | 1680/1650mm |
| Approaching Angle/Departure Angle(o) | 20/17 |
| Tire No. | 7(Including Spare Tire) |
| Tire | 8.25R20 14PR |
| Color: | Optional |
| Max Speed（Km/h） | 110Km/h |
| Engine | |
| Engine System | 4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders |
| Emission Route | DPF |
| Model | 4HK1-TC51 |
| Fuel Type | Diesel Engine |
| Max output | 140Kw |
| Horsepower： | 192HP |
| Max Torque | 510N.m/1600rpm |
| Emission Standard | Euro V |
| Displacement: | 5193ml |
| Transmission: | |
| Model: | MLD-6Q |
| Type | Manual |
| Forward/Reverse | 6F/1R |
| Brake System: | |
| Service Brake | Dual Circuit Compressed Air Brake |
| Parking Brake | Spring Energy, Compressed Air Operating on Rear Wheels |
| Auxiliary System | Engine Exhaust Brake |
| Electrical System | |
| Battery | 2*12-70Ah |
| Alternator | 28V-70Ah |
| Starter | 24V/7.5Kw |

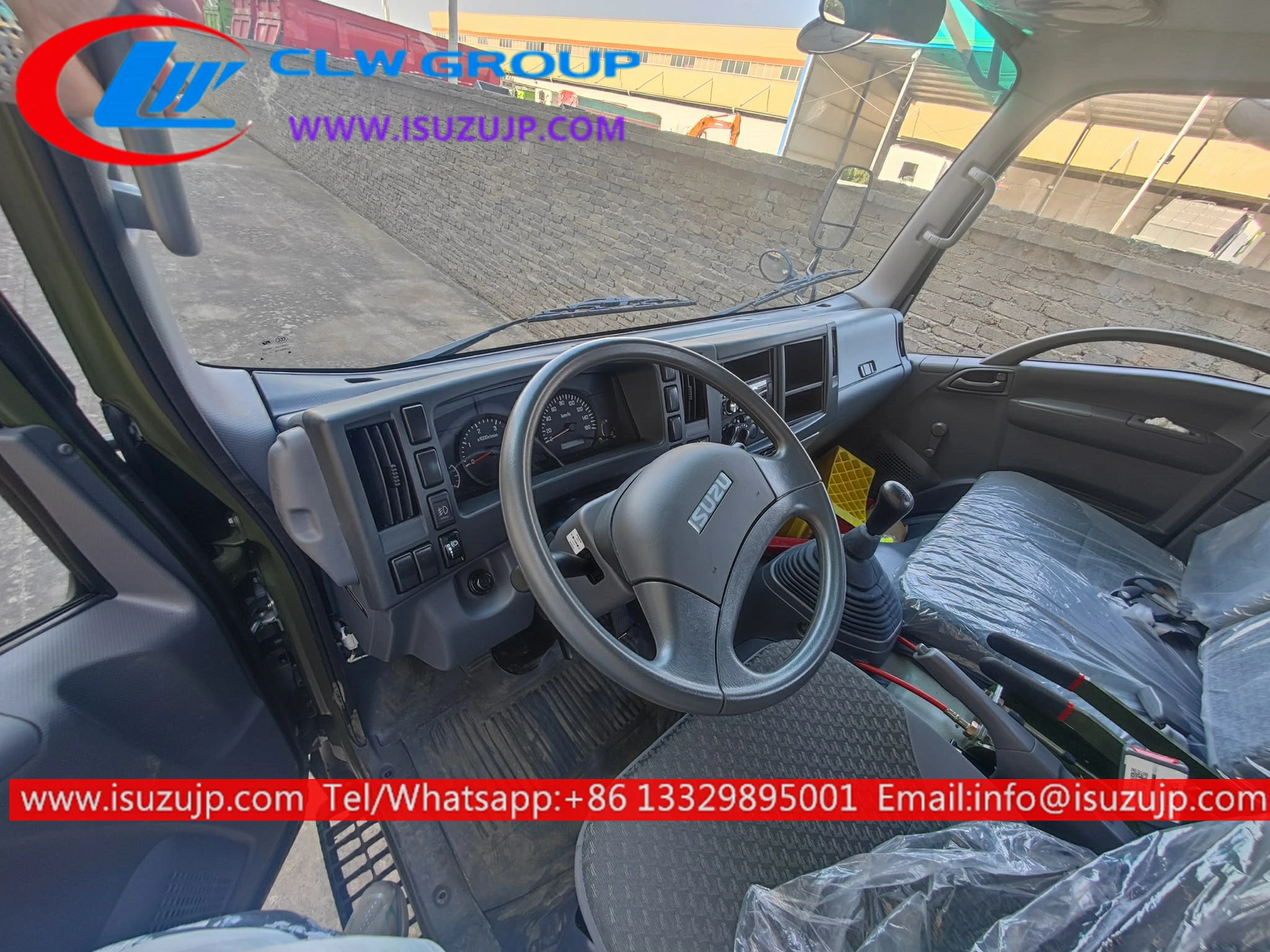

| Cabin | |
| Single Cabin with Air Conditioner | |
| Other Equipment: | |
| Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking | |
