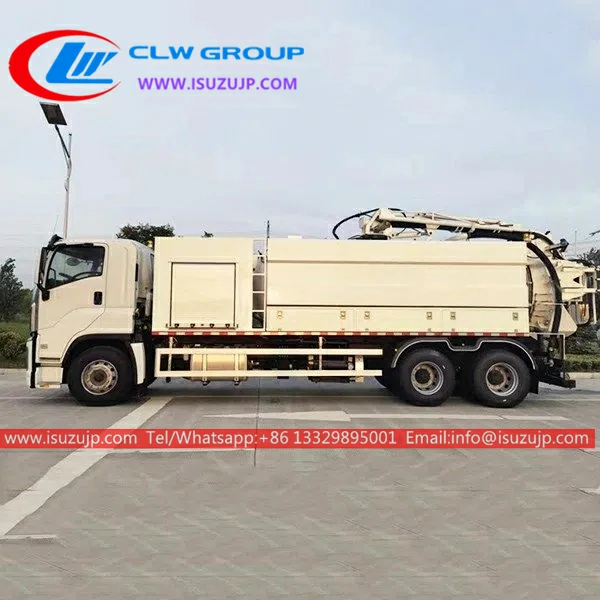

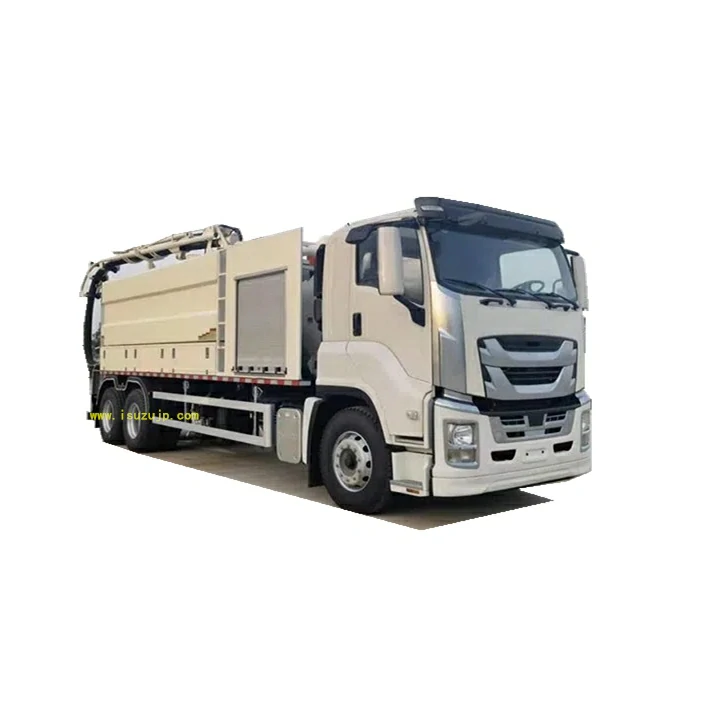

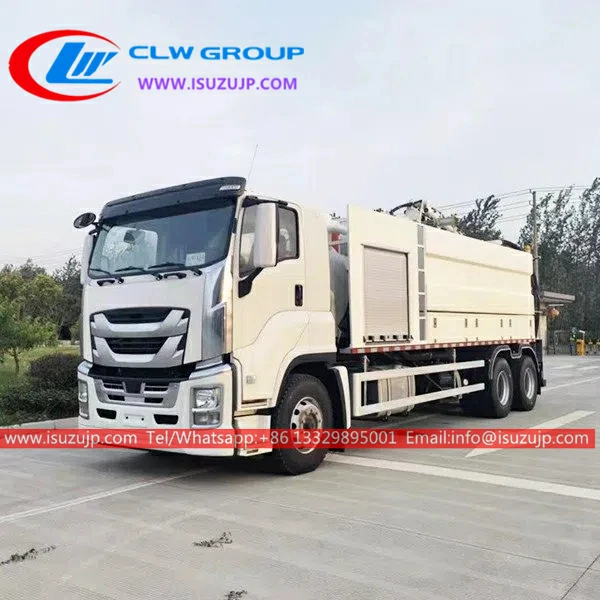

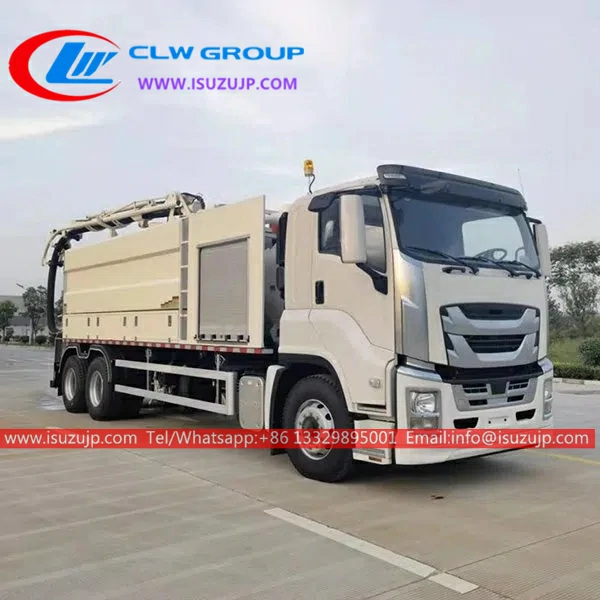

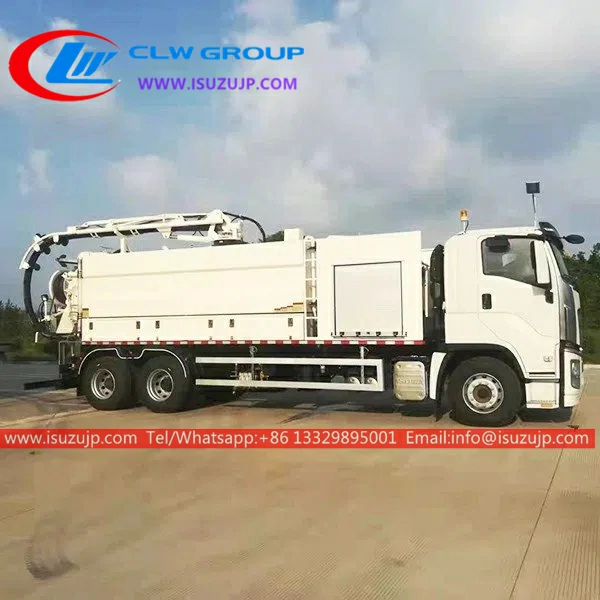

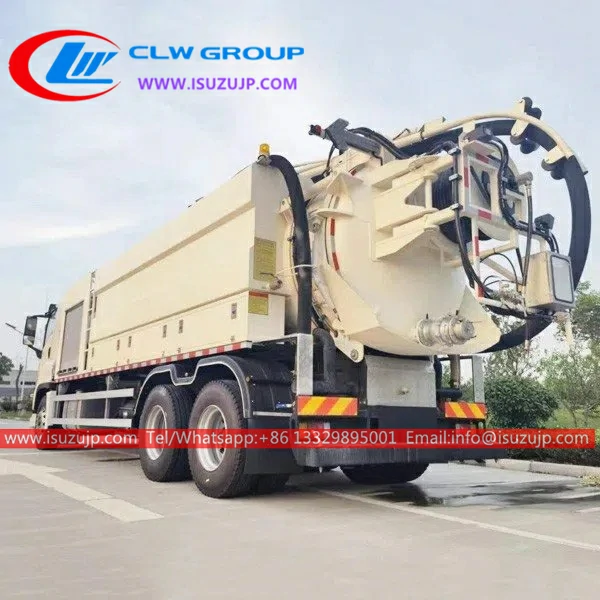

6×4 ISUZU GIGA 4000 gallon jet vac truck Description:
- ISUZU jet vac truck also called Combined jet vacuum truck, suction jetting truck, combination sewer cleaner, combined jet suction truck, jetting and vacuum truck, vacuum and jet vehicle, combine jetting / sucker truck
- The fecal suction truck is a vehicle that is designed to clear any blockage with jetting nozzles moving in sewage pipelines under high pressure, and clear sewer drain lines by means of powerful vacuum suction to suck all water plus mud from sewer hole. This truck is widely used for environmental protection.
- ISUZU combined vacuum jetting truck carries a high-pressure pump, a water tank, high-pressure hoses, and nozzles; also vacuum, vacuum tanker, suction pipeline. and can be mounted on chassis 4×4, 4×2, 6×4, 6×6, etc
Advantage:
- 100% custom-made
- 5,000L to 22,000L available
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- 6×4 ISUZU GIGA chassis, perfect performance
- ISUZU technology engine option, super-powerful, no overhaul within 500,000 km.
- Optional Italy imported high-pressure pump, super powerful, efficient pump in and out
- Famous Chinese brand vacuum pump, effective and dur
- High-pressure cleaning hose with automatic reel
- The strong, durable, perfect performance
Specification:
| Vehicle Model | 6×4 Isuzu Giga 4000 gallon jet vac truck for sale | |
| Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 10700x2496x3780mm |
| Wheelbase: | 5820+1370mm | |
| Front Wheel Distance: | 2065mm | |
| Rear Wheel Distance | 1855/1855mm | |
| Front/Rear Suspension | 1370/2590mm | |
| Weights and Capacities | Curb Weight: | 17580Kg |
| GVW: | 33000kg | |
| Axle Loads: | 7000/26000Kg (Two-axis group) | |
| Engine | Engine Model: | 6UZ1-TCG50 |
| Max output: | 278Kw | |
| Displacement: | 9839ml | |
| Horsepower: | 380Ps | |
| Exhaust Gas Treatment Technology： | SCR | |
| Cabin | Number of Seats: | 2 |
| Cabin type | Standard Roof One Bed | |
| Chassis | Drive Type: | 6×4 |
| Tires: | 11(Including Spare Tire) | |
| Fuel tank | Capacity | 400L |
| Cooling water tank | Volume | 4 m3 |
| Sludge tank | Volume | 12m3 |
| Tank material | Stainless steel 304 | |
| Working pressure | -0.95bar | |
| Vacuum pump (Siemens technology) | Type of vacuum pump | Liquid Ring Vacuum Pump |
| Maximum pumping capacity | 1400 m3h | |
| Configurations | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | ABS | |
| 4 | Tubeless Tire | |
| 5 | Aluminum Alloy Gas Tank | |
| 6 | Free Maintenance Battery | |
| 7 | Central Lock | |
| 8 | Power Window | |
| 9 | Driving Data Recorder | |
| 10 | Front Chrome Kit | |
| 11 | Air Suspension Cabin | |
| 12 | Air Suspension Seat | |
Working parameter:
| Dredge function | Sewage suction function | ||
| High-pressure pump brand | Tianjin Tongjie standard, Germany Pinfu optional | Vacuum pump brand | Veyron is standard, Shandong water ring pump is optional |
| Drive method | Chassis engine + sandwich power take-off | Drive method | A power take-off, Weichai 340-420 vice machine |
| Dredge stress | 16-24 Mpa | Suction pressure | -0.3Mpa |
| Dredge traffic | 75-275 liters per minute | Exhaust flow | 6-35 cubic meters |
| High-pressure tube length | Standard 80 meters, can add 40 meters | Sewage pipe length | Standard one 8 meters, can add 4 |
| High-pressure nozzle | Standard 10 nozzles with different functions | Blowdown method | Air blowdown + tank tail flow + lift dump |
| Coil reel | Hydraulic rotation + labor-saving + tube self-cleaning | Tank material | Carbon steel Q345, stainless steel 304 |
| Antifreeze measures | Pneumatic blowing or vacuum suction | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Jug location | Hanging water tank on both sides, a front tank of sub-bin | The thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Optional configuration | Liquid full alarm, liquid full stop, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic twist | ||
New craft:
Optional configuration:
Toilet suction truck composition structure:
Fecal tank truck technical training support:
Vacuum fecal trucks part, tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Toilet liquid tanker vehicle truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Septic tanker Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Shipping：
- Maximize your hipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
