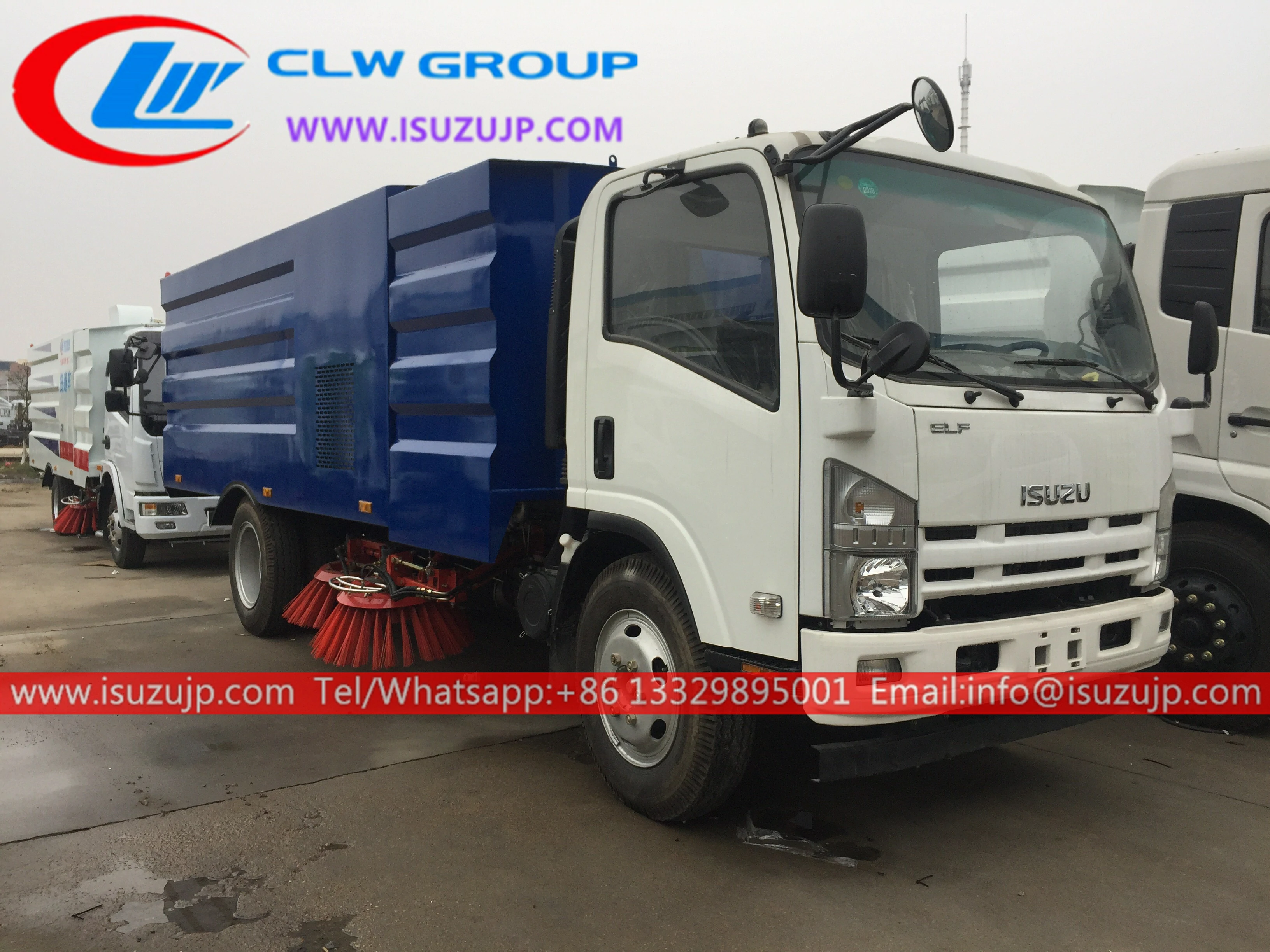

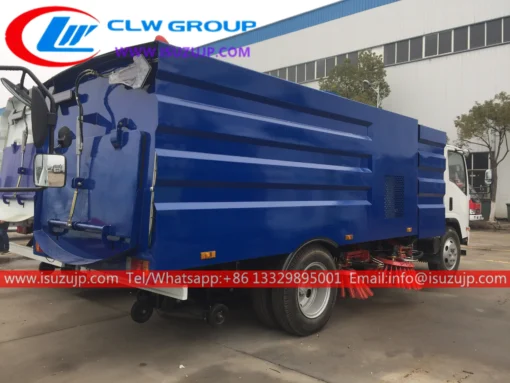

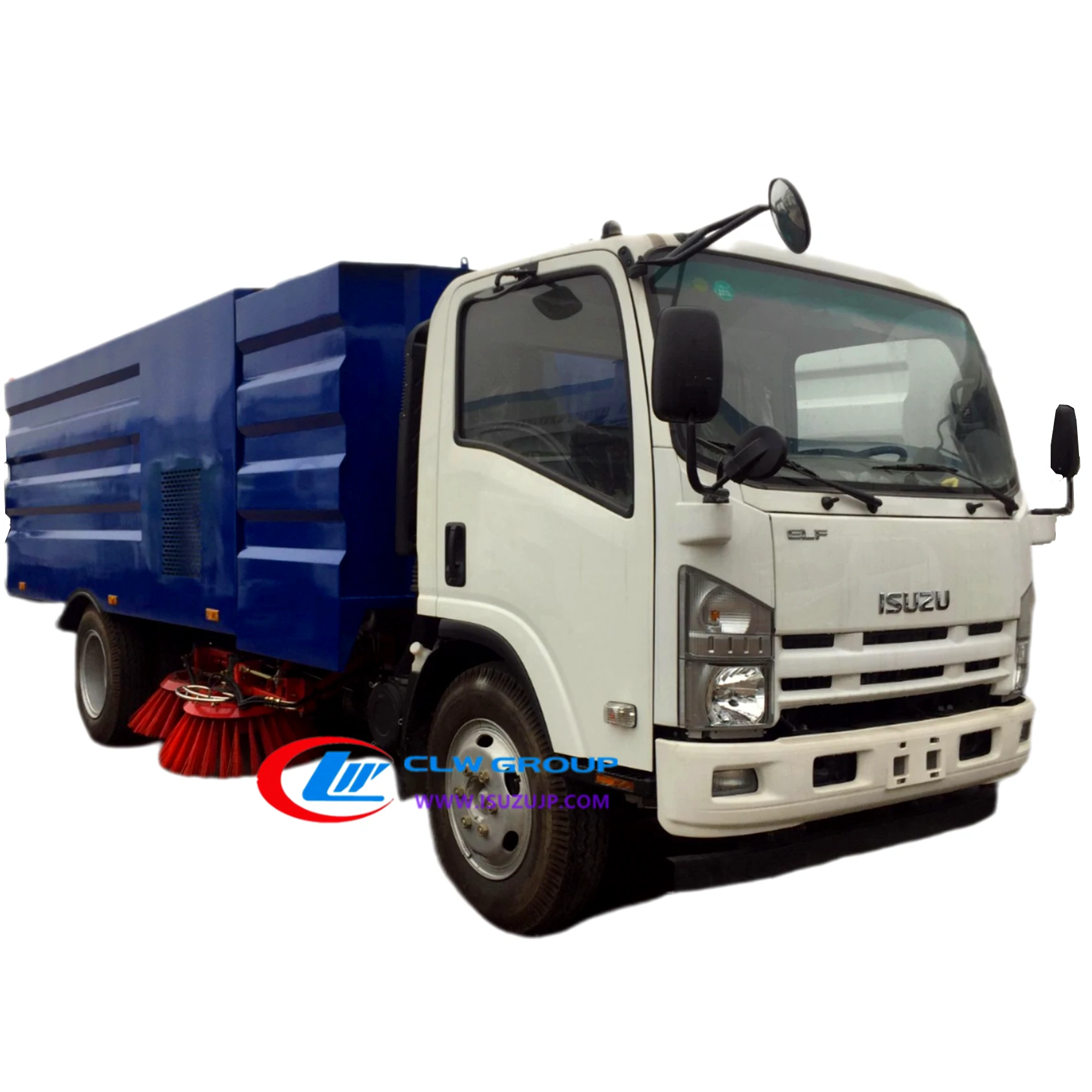

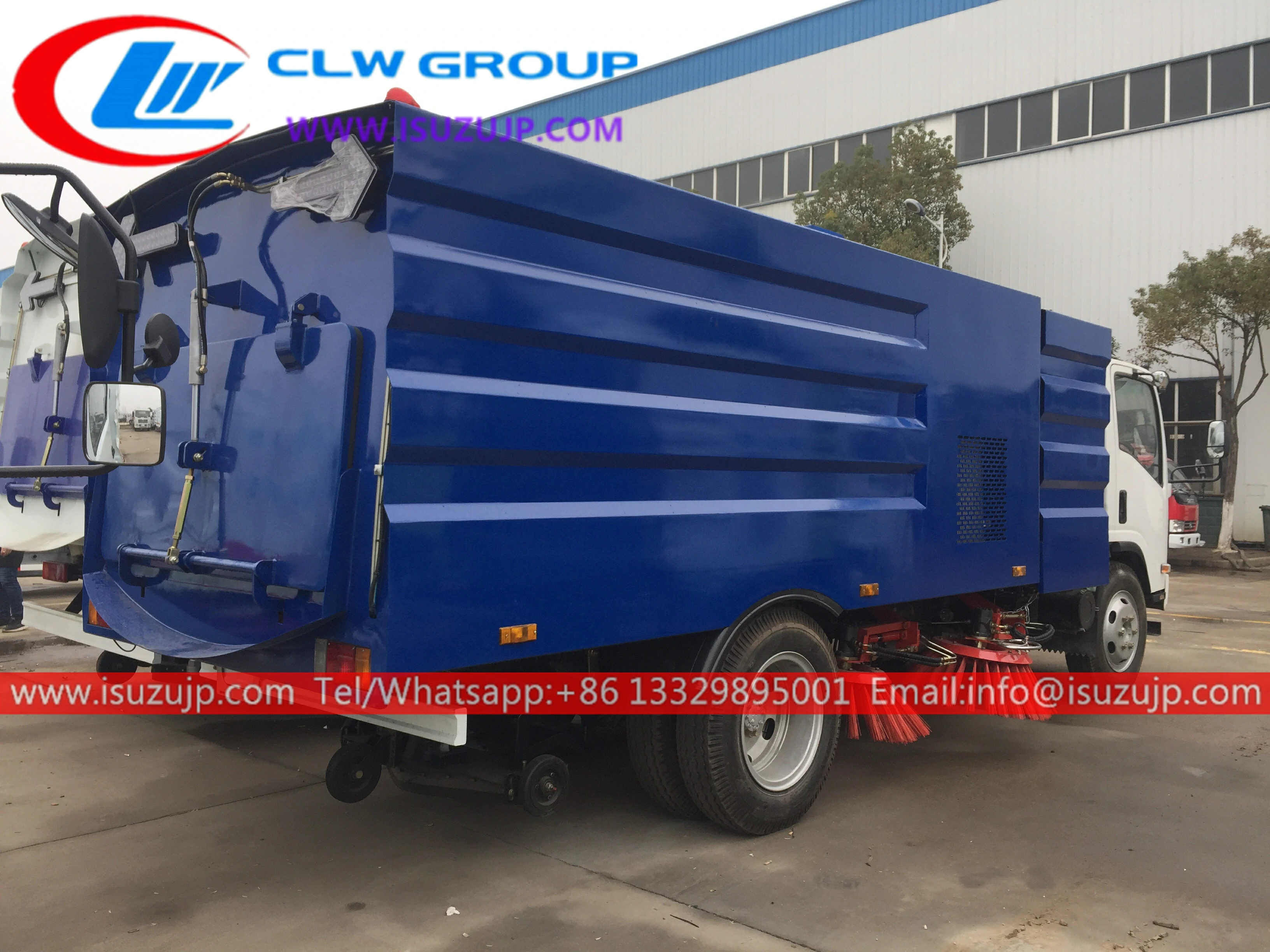

ISUZU NPR 8cbm road sweeping truck Description:
- ISUZU road sweeping truck also called street sweeper, vacuum sweeper, road sweeping truck, street sweeping truck, road cleaning vehicle
- A road sweeper is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas.
- This unit shall be suitable for dry-type cleaning job as well as dust suppression with water spray in the roadside and narrow lanes.
- CHENGLI road sweeper truck uses whole stainless steel material tanker, Original Italy or America motor for easy operation, ISUZU auxiliary engine, efficiently avoiding secondary pollution.
Advantage:
- ISUZU ELF 700P chassis, no overhaul within 500,000 km.
- ISUZU engine, super powerful; reliable performance.
- Nice shape, rational structure
- Italy imported high-pressure pump, super powerful, efficient pump in and out Strong, durable, perfect performance.
- Road Sweeper body capacity from 2 to 16 Cubic Meter.
- Easy operation and easy maintenance.
- Virious types of refuse container lifters are available.
Specification:
| ISUZU NPR 8cbm road sweeping truck | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 8600X2500X3000 mm | |
| GVW / Kerb Weight | 13,800kg / 6,800kg | |

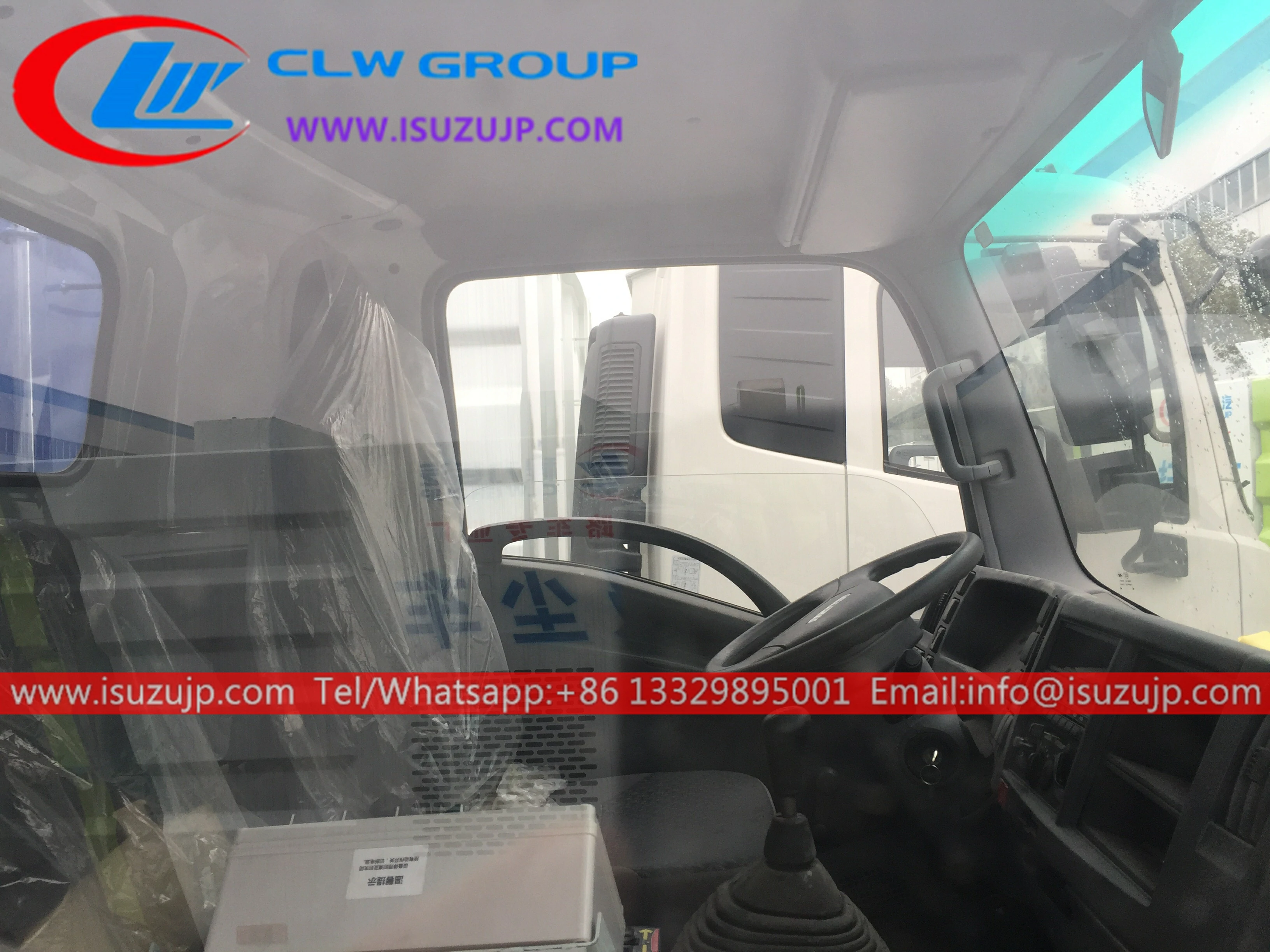

| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 190 HP (140 KW) | |
| Displacement | 5199 ml | |
| Emission Standard | Euro 4 or 5 | |
| Chassis | Drive Type | 4X2, (left hand drive) |
| Transmission | MSB 5 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 4175 mm / 2 | |
| Tire Specification | 825R16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 6 cbm dust tank & 3 cbm water tank |
| Tanker material | Stainless steel | |
| Sweeping capacity | 42,000 cbm/h | |
| Sweeping speed | 3-15 km/h | |
| Max. sweeping width | 3300 mm | |

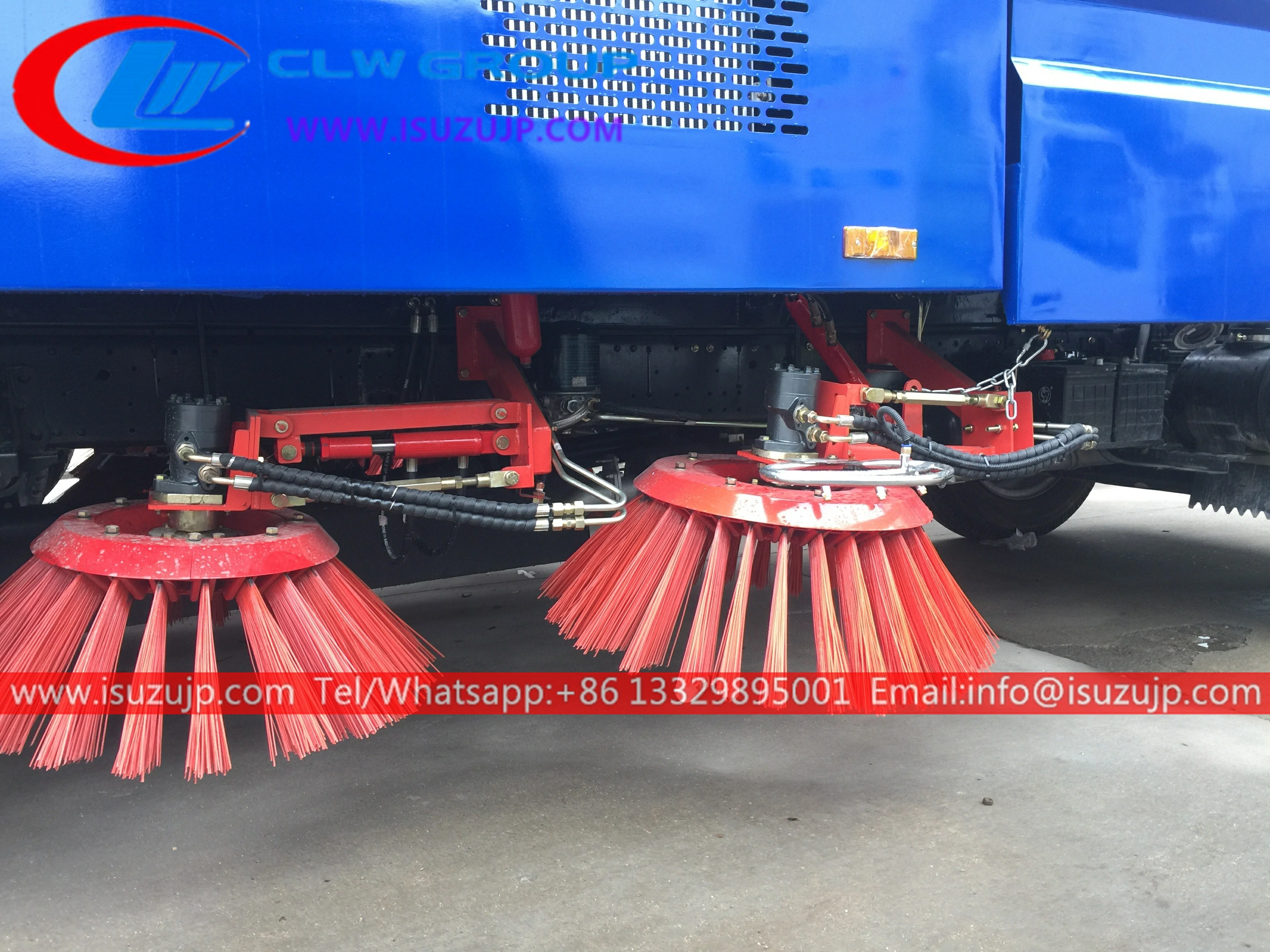

| Brooms | 2 set at each side, at diameter 800 mm | |
| Auxiliary engine | Cummins 140HP engine,super powerful | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual… | ||
| Optional | Back alarm and Camera can be equipped. Italy Brevini motor can be optional. Air blower can be of stainless steel | |
composition structure:
Core components introduction:
Road sweeping vehicle Optional configuration:
Technical training support:
Road Sweeper accessories,tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Sweeper machine shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Sewer truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
