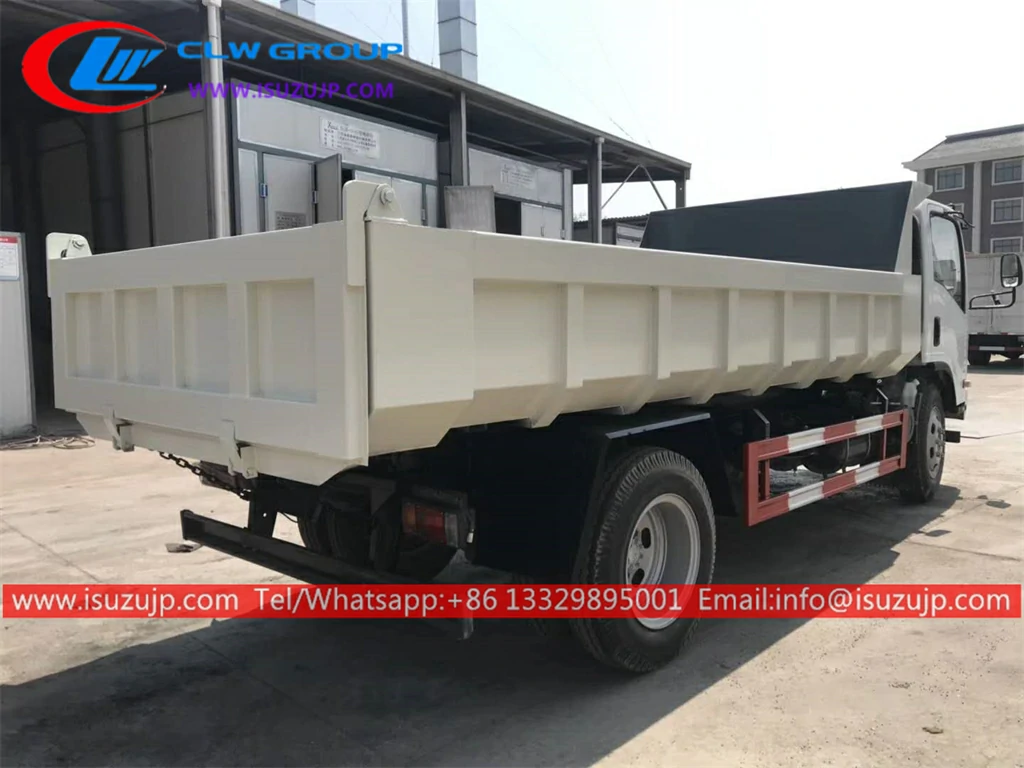

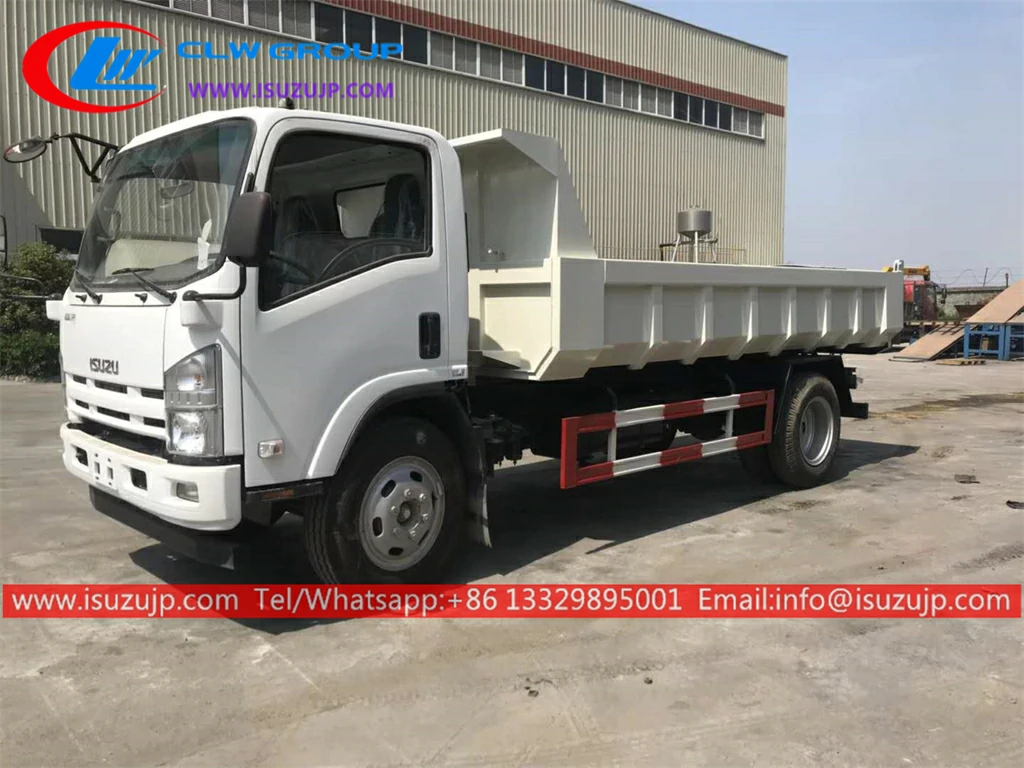

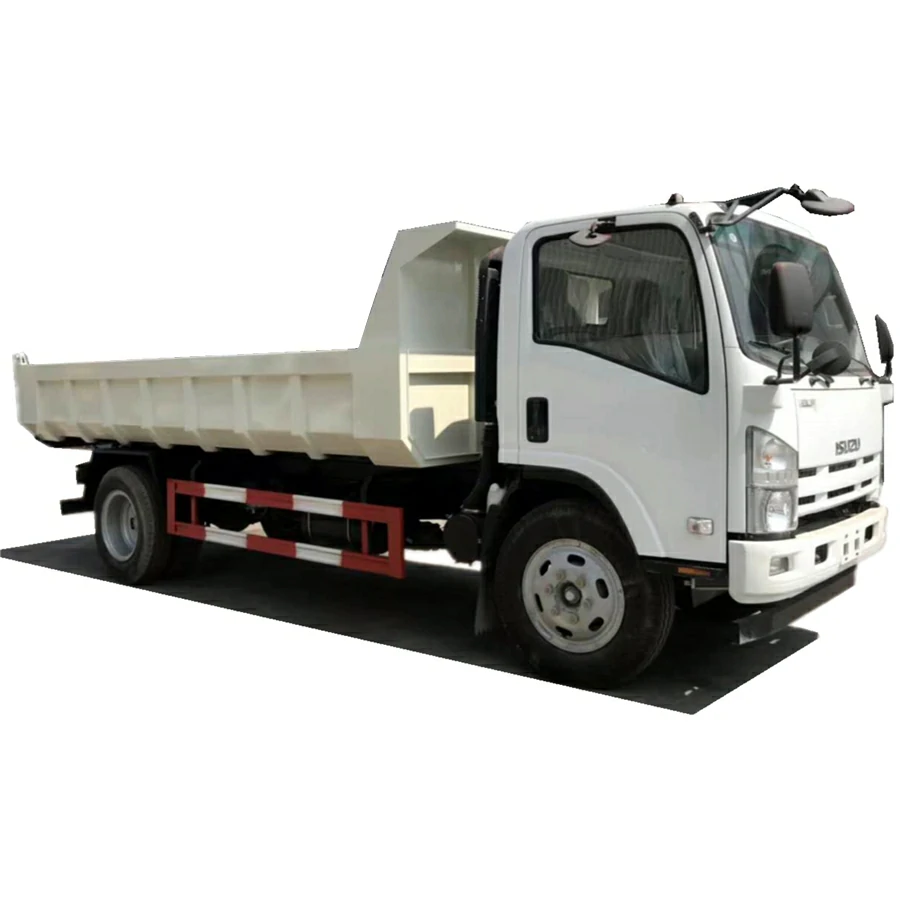

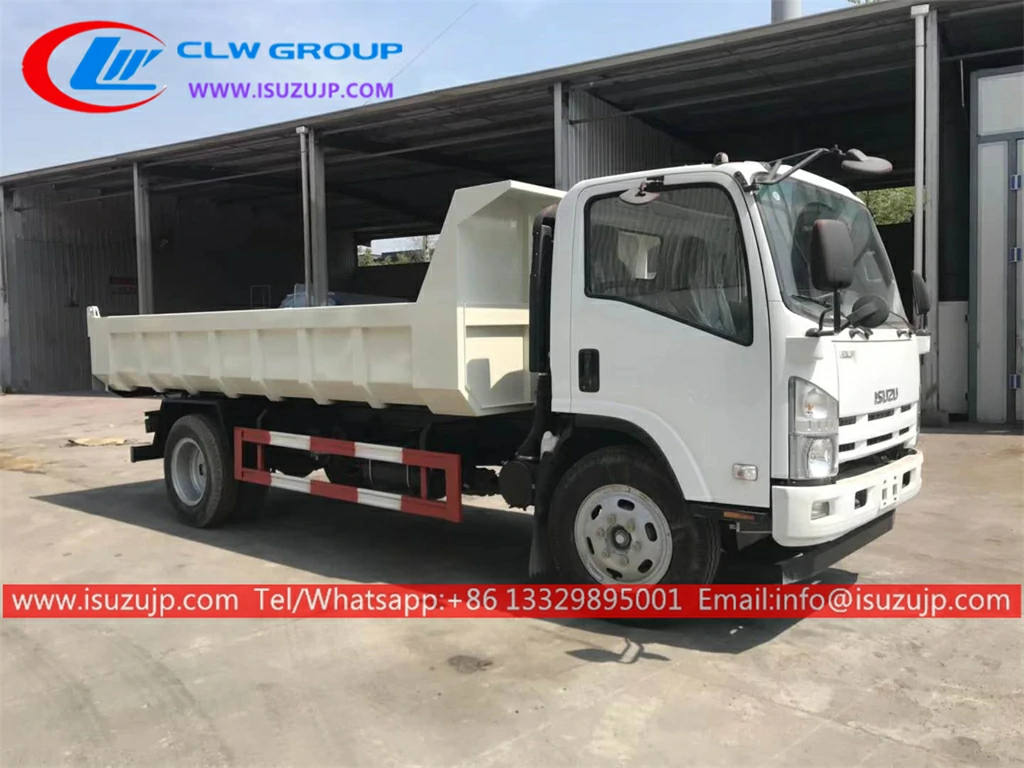

ISUZU NPR 8 ton garbage dump truck Description:
- ISUZU garbage dump truck also called refuse collection truck, waste collection vehicle, bin wagon, dustcart, bin lorry, garbage tipper, garbage transport vehicle, trash dump truck, waste management dump truck is used to collect and transport municipal solid waste.

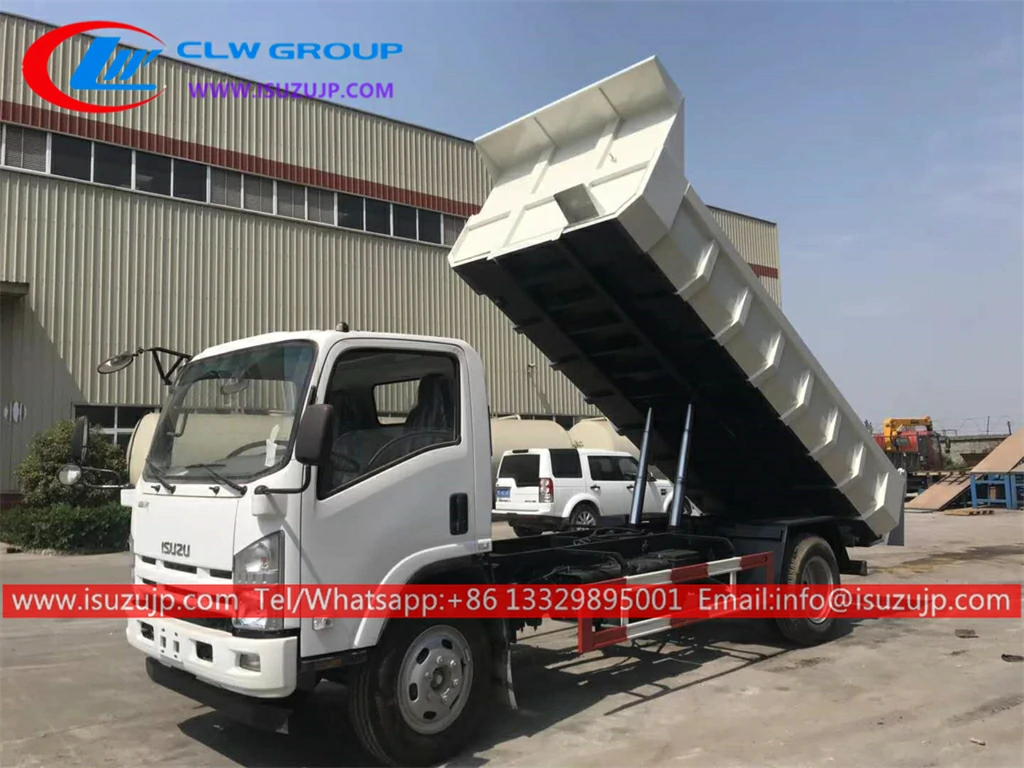

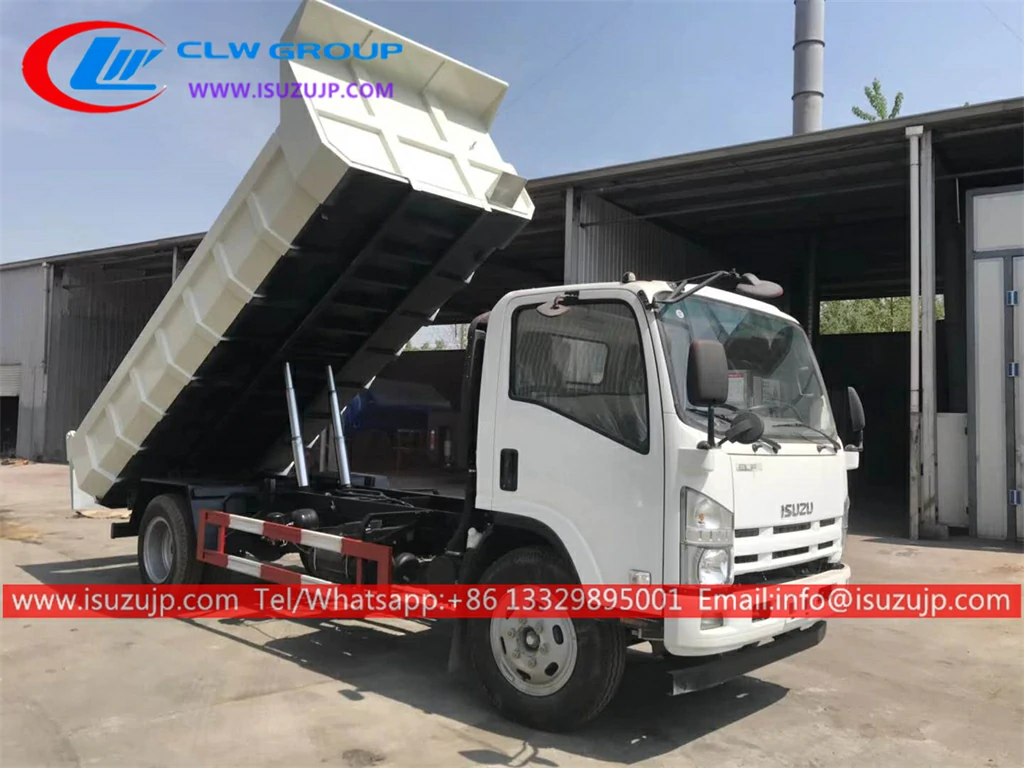

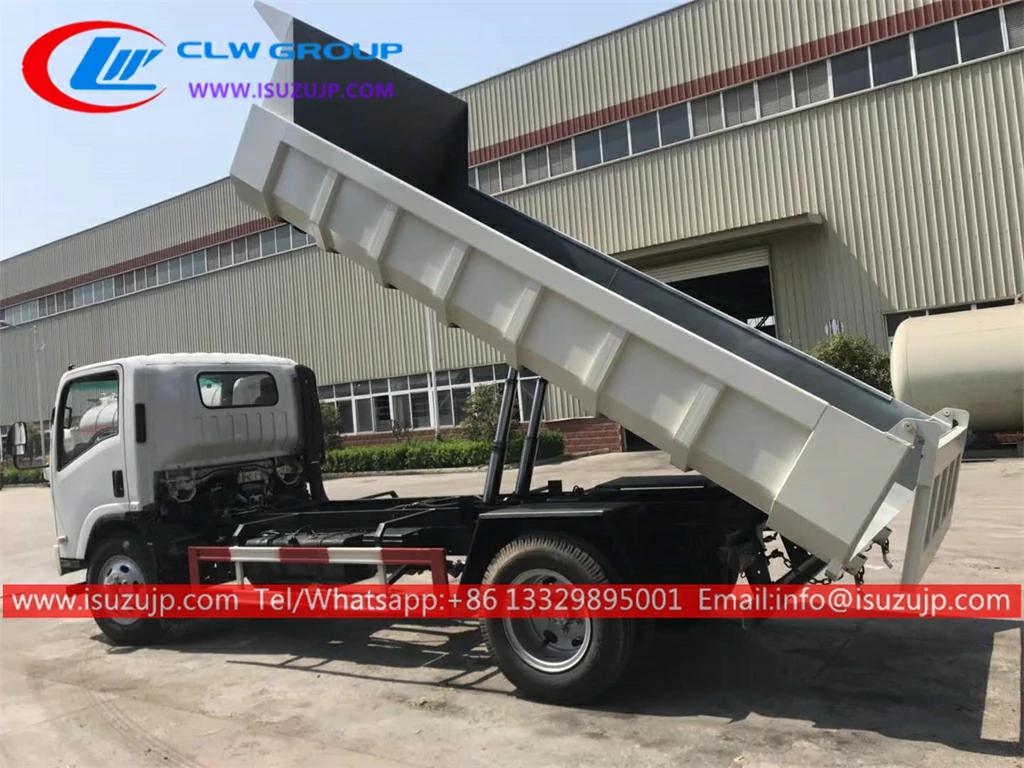

- By lifting the hydraulic cylinder, the garbage dump truck could unload the garbage by gravity. To avoid leakage of wastewater, the garbage van is totally hermetic.
Advantage:
- ISUZU NPR 700P chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
Specification:
| ISUZU NPR 8 ton garbage dump truck | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU NPR | |
| Overall Dimension | 7200X2500X2600 mm | |
| GVW / Kerb Weight | 12,800 kg / 4,800 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | diesel |
| Engine Brand | ISUZU engine | |
| Power | 190HP (140 KW) | |
| Displacement | 5199 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 6 speed forward, 1 reverse | |
| Wheelbase/No. of axle | 4175 mm / 2 | |
| Tyre Specification | 825-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Waste Box Capacity | 8-12 CBM |
| Waste Box Material | Carbon steel | |
| All other standard accessories: Tool kit, English manual | ||
| Optional | Loading garbage from side or top. | |
Detail drawing:
Common garbage truck style:
Operating procedures:
Garbage collection vehicle tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Isuzu Truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
