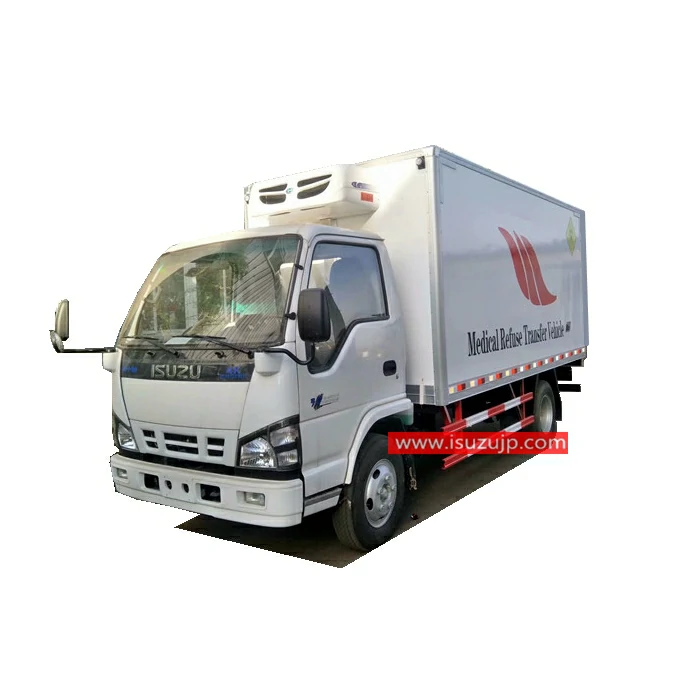

ISUZU NKR 5 ton medical waste transfer vehicle Description:
- ISUZU medical waste transfer vehicle also called medical waste collection van, Medical waste collector, biomedical waste carrier, medical waste disposal truck, medical waste haulage truck, medical waste transport truck, hospital waste disposal truck, medical waste transfer vehicle, medical waste collection vehicle, etc.
- As medical waste may cause infection and pollution, a medical waste collector van should be a sealed room, placed with stainless steel interior to make it anti-corrosive, equipped with a refrigerator to keep all biohazard material at low temperature, adopted with ultraviolet lamp and disinfection sprayer to kill bacteria, etc. And all corners of the van are the round type for easy cleaning.
- The van box could be hydraulically lifted to discharge medical waste easily.
Advantage:
- 100% custom-made
- Equipped with refrigerator to keep the van in low temperature.
- High quality ultraviolet lamp.
- Round type van corner.
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- Refrigeration system brand can be optional.
- Transport temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C -25°C.
Specification:
| ISUZU NKR 5 ton medical waste transfer vehicle | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | Dongfeng | |
| Overall Dimension | 6995X2300X3200 mm | |
| GVW / Kerb Weight | 6,500kg / 3,500 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 98HP (72 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | MSB 5-speed forward, 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Van Box Dimension | 5100X2000X2000 mm |
| Van Volume | 20 m3 | |
| Van Capacity | 5 Ton | |
| Van Material | Interior: Stainless Steel; Exterior: Fiberglass | |
| Refrigerator | Chinese famous brand | |
| Ultraviolet Lamp | 1 set | |
| Disinfection Sprayer | 4 pcs | |
| Hydraulic Cylinder | Chinese top brand | |
| All standard accessories: a separated compartment (side opened), basic tool kit, English manual…… | ||
| Optional | Hand washing tank | |
Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
medical waste transit truck New craft:
medical waste collection vehicle Optional configuration:
Bodywork details:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
