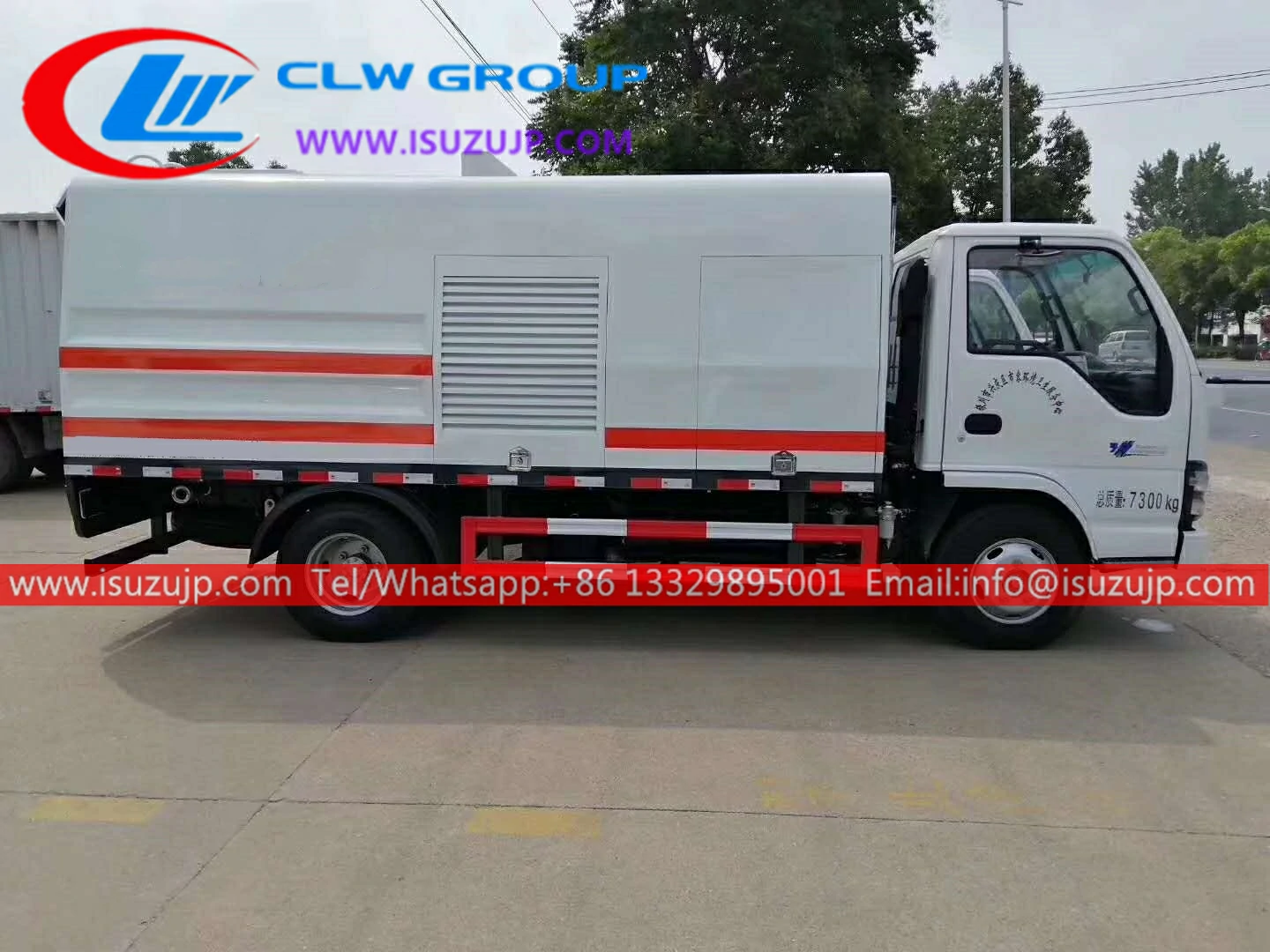

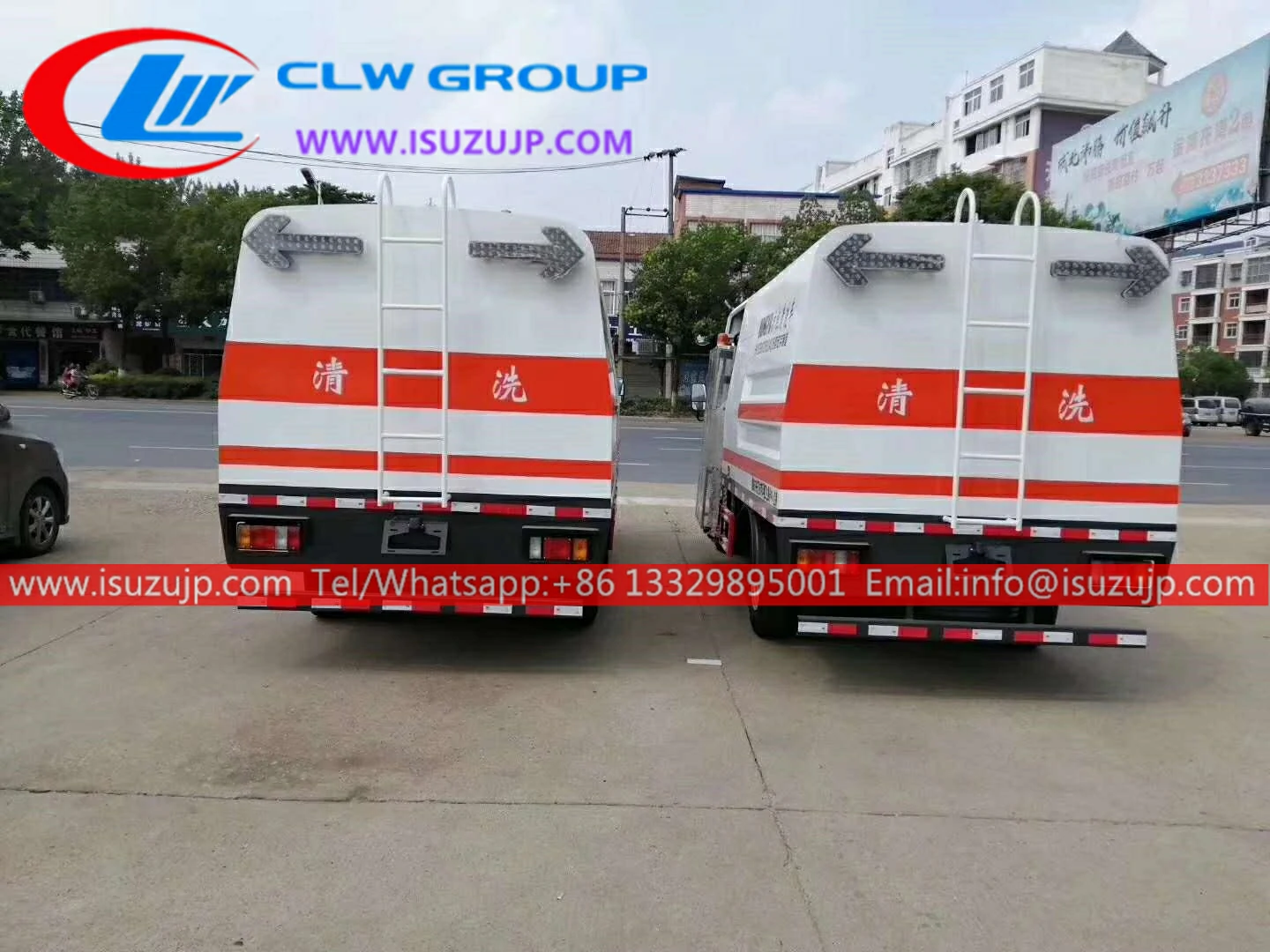

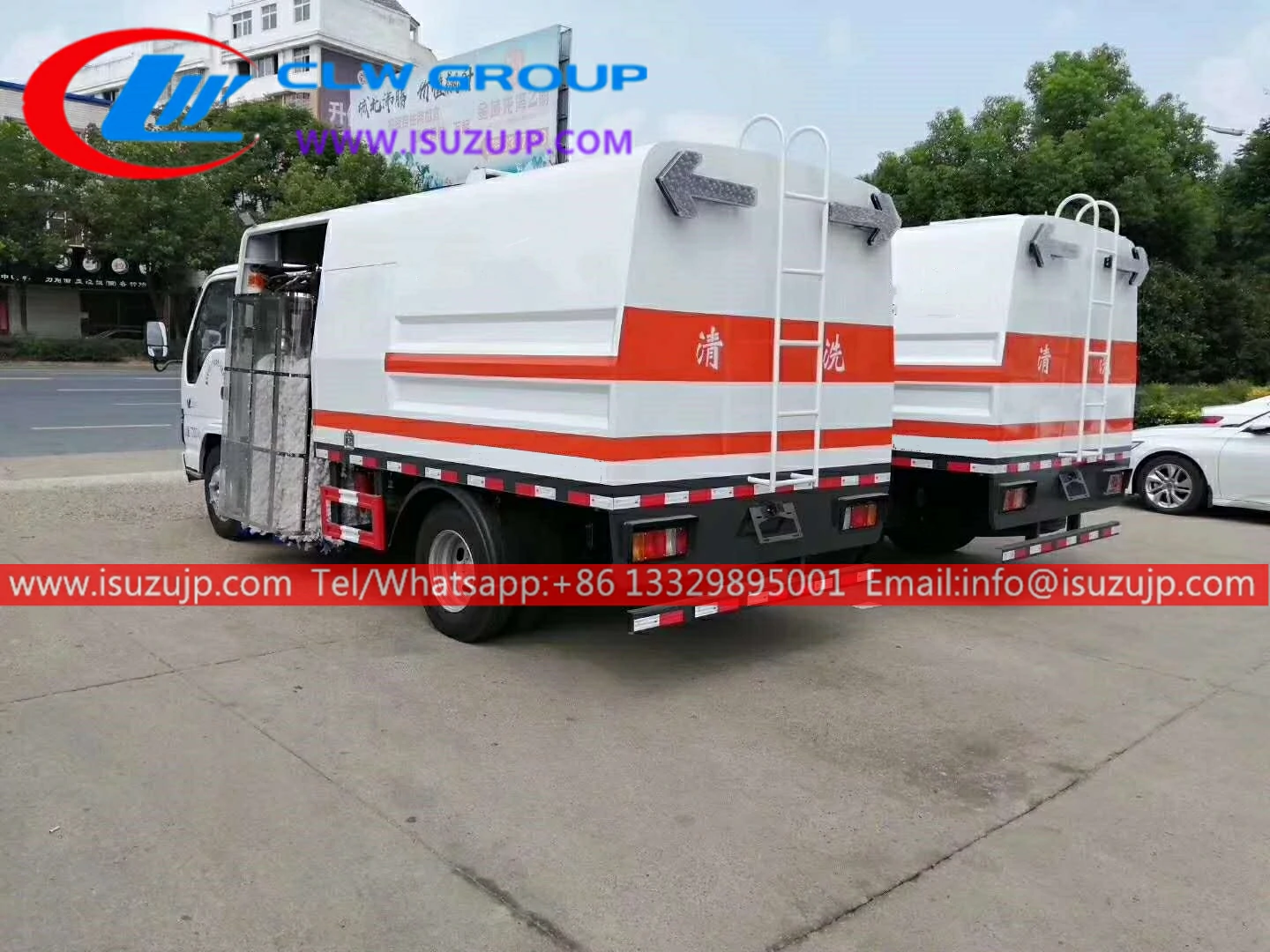

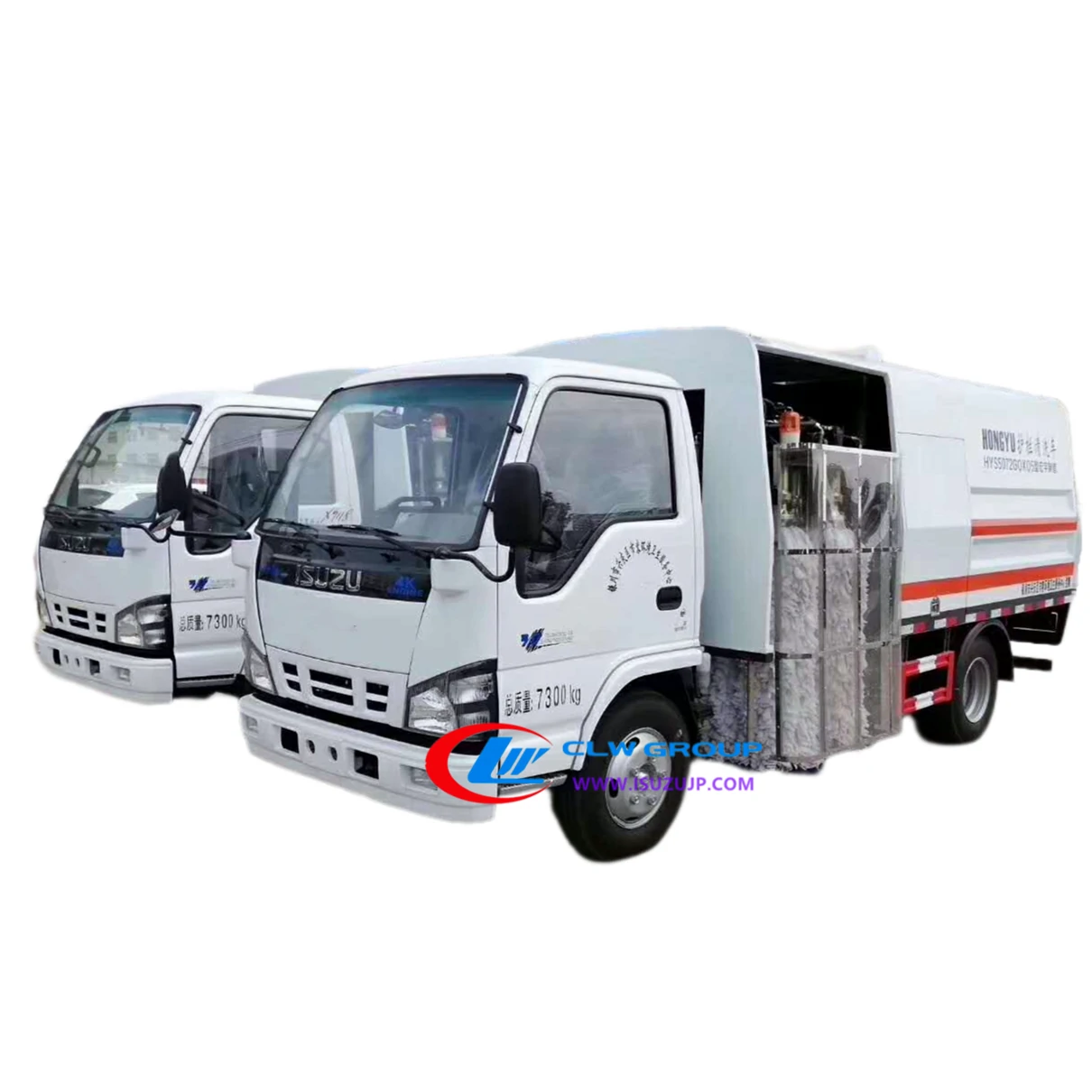

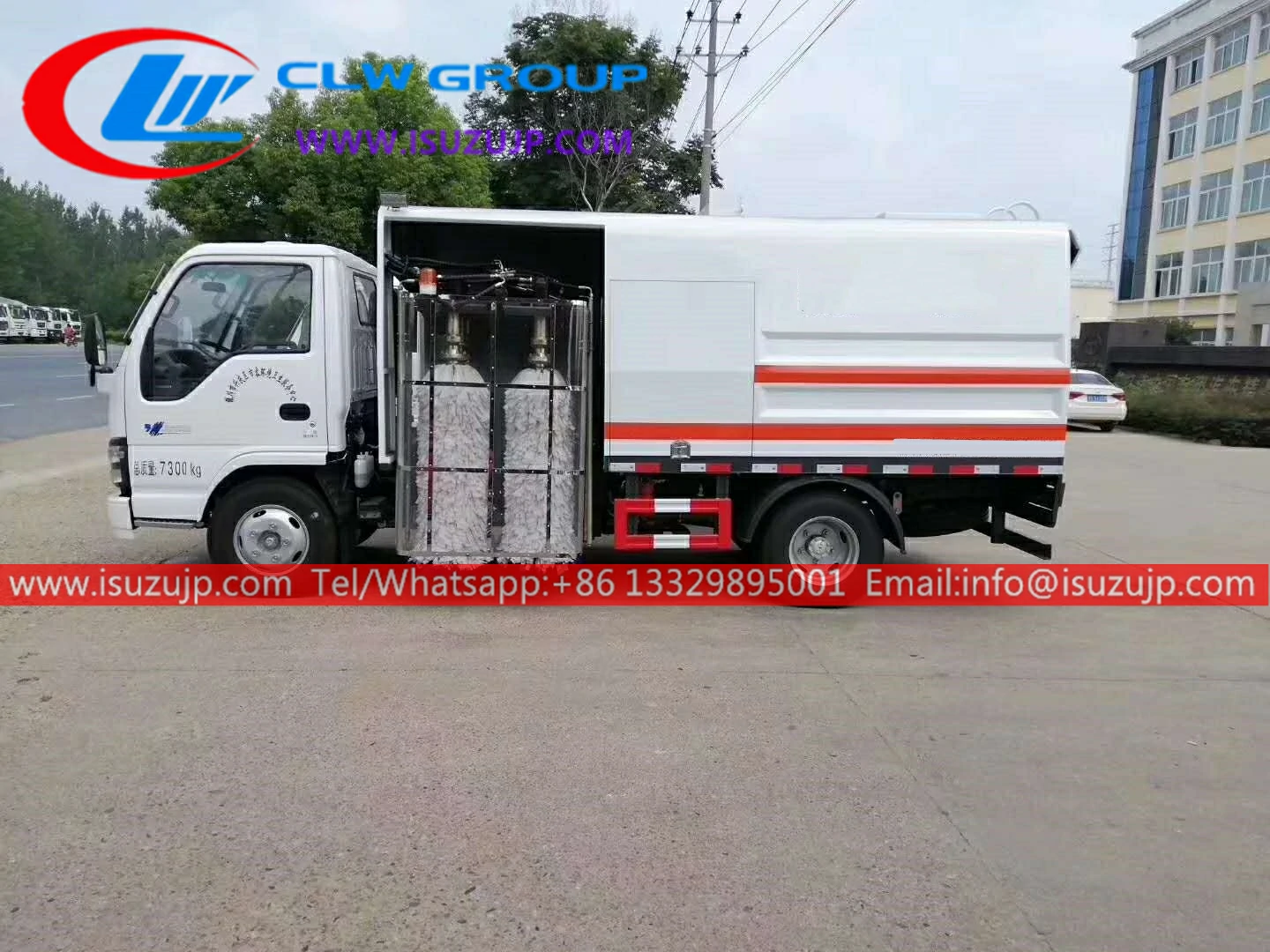

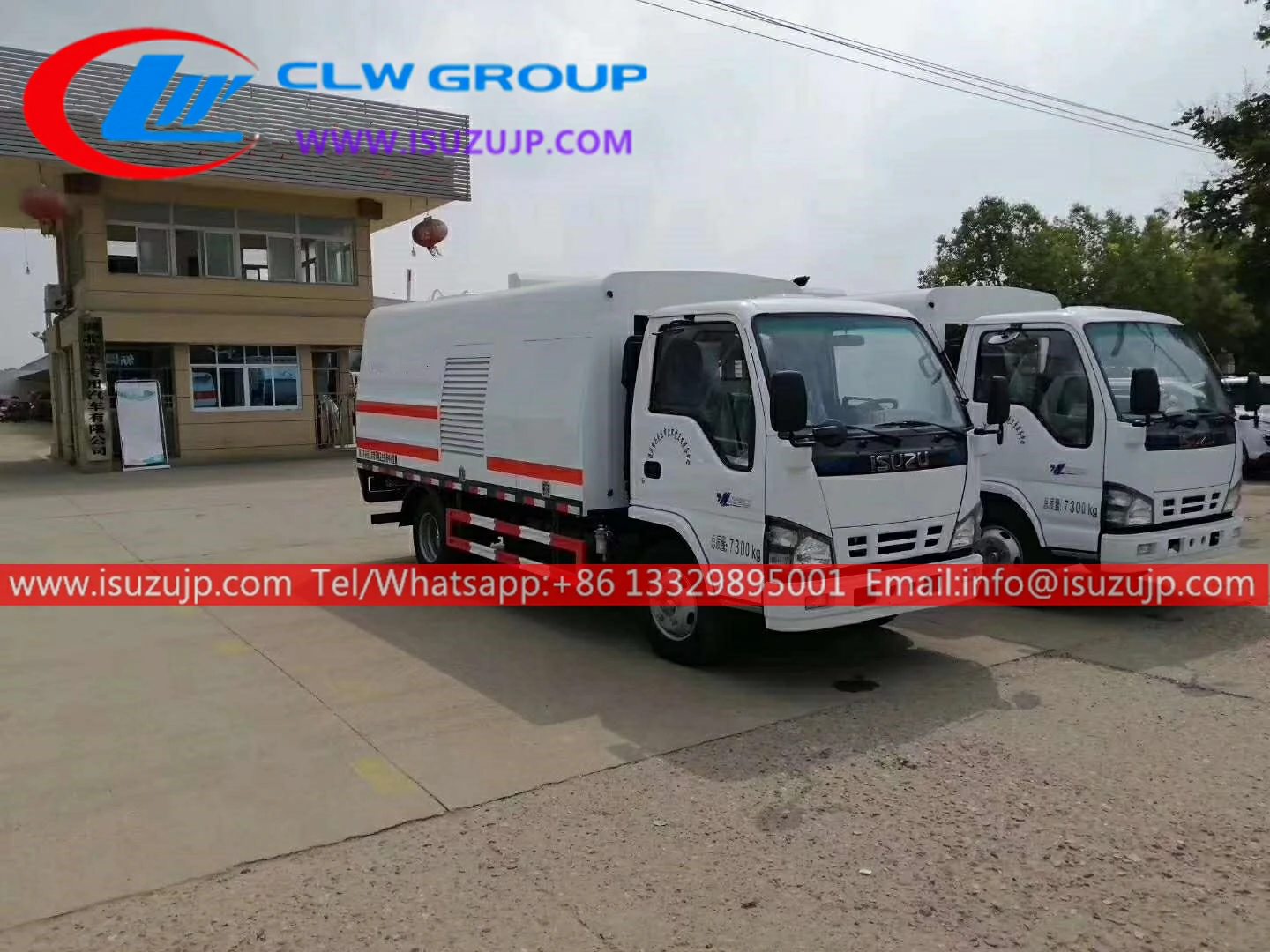

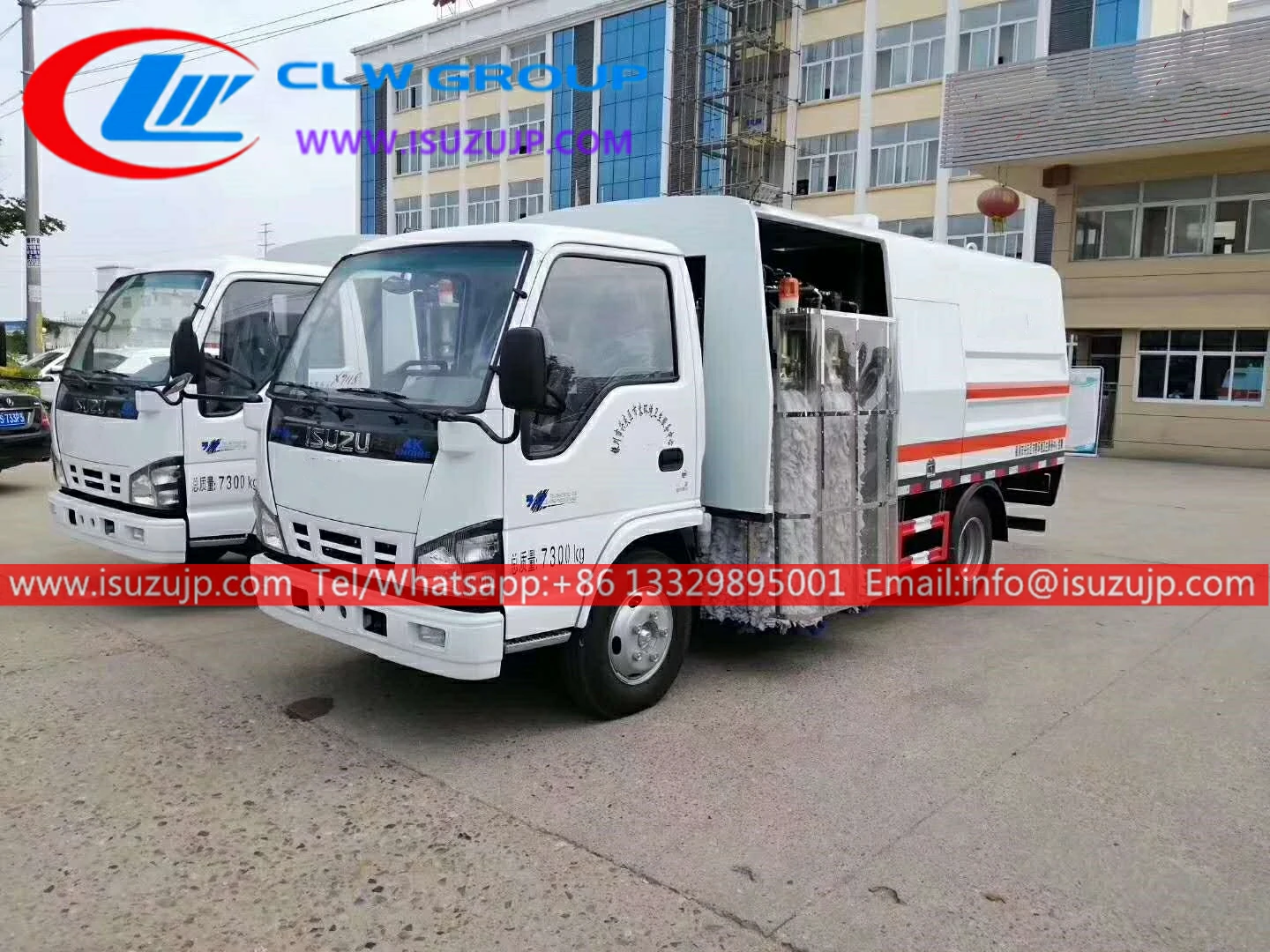

ISUZU NKR 4000liters guardrail cleaning truck Performance characteristics:
- The cleaning operation of the same-direction double-side guardrail and the brushing operation of the changing direction can be completed in three minutes, and the specialty of the expressway (one-way driving) is satisfied.
- Double roller brush operation, high cleaning efficiency, and fast operation speed, 3-10km/h.
- Hydraulic protection device, double-sided protection of the roller brush, keep a constant distance between the roller brush and the guardrail, and the cleaning quality is stable
- With high-pressure water flow cleaning, high efficiency, and water saving, each ton of water can wash the guardrail 6-10km.
- Multi-edge flexible brush wire, high-pressure scrubbing: cleaning without leaving dead corners and damaging the paint surface.
- High-strength metal structure: stable and reliable.
- All hydraulic drives have stable performance and reliable quality.
- In the original special water circulation water-cooled hydraulic oil tank, the hydraulic oil and hydraulic pipes will not heat up during operation, which can well protect the normal operation of the equipment.
- The roller brush mechanism is located in front of the cab, and the operator can operate it directly and clearly
- Adopt an independent power source to ensure stable operation of the washing machine and save energy at the same time
- Advanced technology, reasonable design, safe use, energy saving, and environmental protection, stable and reliable work
- Start, stop, lift, deflect, and work, all in the cab.
Advantage:
- 100% custom-made
- 5,000L to 22,000L available
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- 6X4 ISUZU GIGA chassis, perfect performance
- ISUZU technology engine option, super powerful, no overhaul within 500,000 km.
- Optional Italy imported a high-pressure pump, a super powerful, efficient pump in and out
- High-pressure cleaning hose with automatic reel
- The strong, durable, perfect performance
Specification:
Vehicle name | ISUZU NKR 4000liters guardrail cleaning truck | Dimensions (mm) | 5990×2200×2600 |
Tank material | Carbon steel | Tank thickness (mm) | 4 |
High-pressure pump brand | Tianjin Tongjie / Italy Import | Pressure (Mpa) | 16-19 |
Washing water flow rate (L/min) | 120 | Spray flow rate (L/min) | 120 |
Cleaning width (m) | ≥ 16 | Washing water flow rate (L/min) | 500-800 |
Flow rate (m3/h) | 8 | Water gun range (m) | 38 |
Total mass (kg) | 4495 | Rated mass (kg) | 300 |
Curing quality (kg) | 4065 | Maximum speed (km/h) | 99 |
Fuel type | Diesel | Emission Standards | euro 5 |
Wheelbase (mm) | 3308, 2800 | Tire specifications | 7.00-16, 7.00R16 |
Chassis brand/model | Dongfeng / EQ1070SJ3BDF | Engine brand/model | Dongfeng Chaoyang Chaochai / CY4BK551 |
Power / horsepower (kW / ps) | 75/98 | Displacement (mL) | 3707 |
| Top loading configuration parameters | |||
The standard configuration | Install the sandwich power take-off, drive shaft, high-pressure cleaning pump, rated pressure 16Mpa, hydraulic reel, water level gauge, washing pipe, operation valve at the rear of the tank, equipped with a 60m 19mm high-pressure pipe, 10 high-pressure flushing heads. | ||
Optional configuration | Sprinklers, green sprinklers, front and rear sprinklers, side sprays, snow shovels, hydraulic lifting platforms, and guardrail cleaning brushes can be added to meet the needs of different users. | ||
Working parameter:
| Special performance parameters for guardrail cleaning vehicle | ||
| project | unit | parameter |
| Fresh water tank volume | m3 | 4 |
| Number of brushes | 4 | |
| cleaning width | mm | 0-260 |
| Brush speed | rpm | 150-300 |
| cleaning work area | m/h | 2400-12000 |
| cleaning speed | km/h | 2-10 |
| Maximum cleaning guardrail height | mm | 1700 |
| work noise | db | <88 Comply with GB7258 |
| Guardrail cleaning truck hydraulic system | Type | Open type, electric control centralized control |
| main components | Gear pumps, cycloid motors, hydraulic cylinders, solenoid valves, manifolds, hydraulic radiators, etc. | |
| System pressure | mpa | 10-12 |
| Fuel tank capacity | L | ≥70 |
| hydraulic radiator | Wuxi Kaihua Technology | |
| Guardrail cleaning car cleaning system | The hydraulic telescopic arm is used for cleaning operations, the main arm can be raised and lowered, and the cleaning brush arm can be retracted back and forth to ensure cleaning efficiency. | |
| Guardrail cleaning system composition | It is composed of the chassis car circuit, the electrical part of the auxiliary engine and the operation control circuit of the special working device. | |
| Chassis system voltage | IN | 12 |
| Work Equipment System Voltage | IN | 12 |
| Guardrail cleaning car electric control box panel composition | Auxiliary engine tachometer, auxiliary engine water temperature meter, oil temperature alarm device, various operation control switches | |
| Guardrail cleaning vehicle driving performance parameters | drive type | 4×2 rear axle drive |
| Suspension Type | Leaf springs with hydraulic bidirectional telescopic shock absorbers | |
| Number of leaf springs (front/rear) | 7/5+5 | |
| Brake type | Dual circuit hydraulic brake, drum type | |
| Braking distance (full load 30km/h) | ≤10m | |
| top speed | km/h | 100 |
| Minimum turning radius | m | 6.8 |
| Maximum grade | ≥30% | |
| Transmission system | Mechanical 5-speed transmission with synchronizer, manual | |
| engine fuel consumption | Driving (L/100km) Work (L/h) Operation (L/10000m2) | ≤9 ≤5 ≤2 |
| Guardrail washing vehicle water spray system | water spray form | high-pressure water spray |
| main components | High-pressure water pump, water filter, pipeline, stainless steel nozzle, etc. | |
| High-pressure water pump and displacement | (l/min) | PINFL13HP/15 |

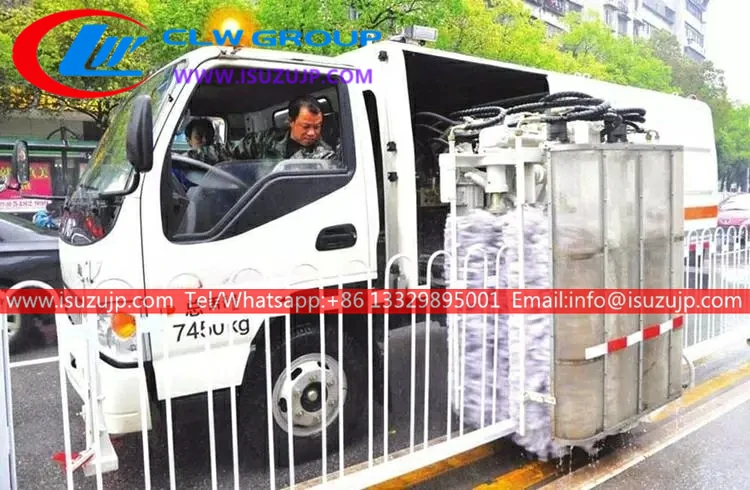

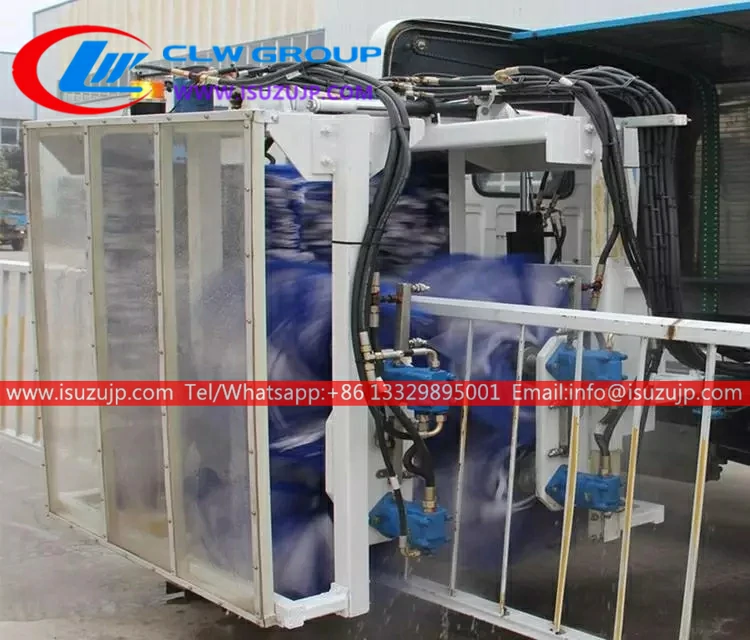

Road jetting truck working photos:
Technical training support:
Part, tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Shipping：
- Maximize your hipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
