Isuzu Giga 10 wheeler Aluminum truck wing van Application:
- ISUZU Isuzu Giga wing van also called wing body truck, wing van, 10 wheeler wing van, 6 wheeler wing van truck, etc.
- It is mainly used for the transportation and distribution of paper, household appliances, clothing, chemicals, beverages, food, and some high-grade valuables.
ISUZU 4K-ENGINE 6 ton box truck Advantage:
- ISUZU Giga 10 wheel chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Accept customized
- The frame of the car body structure is welded with high strength steel profiles
- An aluminum alloy box can be selected.
- It has the advantages of rainproof, dustproof, sunscreen, anti-theft and corrosion resistance
- The dimensions of the carriage cover 3.8m, 4.2m, 5.2m, 6.2m, 6.8m, 7.6m, 8m and 9.6m
Specification:
| Products Name | Isuzu Giga 10 wheeler wing van for sale | |
| Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 11280×2550×3990mm |
| Box Dimension (L x W x H): | 9140x2400x2440mm | |
| Wheelbase: | 5820+1370mm | |
| Front Wheel Distance: | 2065mm | |
| Rear Wheel Distance | 1855/1855mm | |
| Front/Rear Suspension | 1370/2590mm | |
| Weights and Capacities | Curb Weight: | 15500kg |
| GVW: | 33000kg | |
| Axle Loads: | 7000/26000Kg (Two-axis group) | |
| Engine | Engine Model: | 6UZ1-TCG50 |
| Max output: | 278Kw | |
| Displacement: | 9839ml | |
| Horsepower: | 380Ps | |
| Exhaust Gas Treatment Technology: | SCR | |
| Cab | Number of Seats: | 3 |
| Cabin type | Standard Roof One Bed | |
| Chassis | Drive Type: | 6×4 |
| Tires: | 11(Including Spare Tire) | |
| Fuel tank | Capacity | 400L |
| Configurations | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | ABS | |
| 4 | Tubeless Tire | |
| 5 | Aluminum Alloy Gas Tank | |
| 6 | Free Maintenance Battery | |
| 7 | Central Lock | |
| 8 | Power Window | |
| 9 | Driving Data Recorder | |
| 10 | Widened Bumper | |
| 11 | Front Chrome Kit | |
| 12 | Air Suspension Cabin | |
| 13 | Air Suspension Seat | |
| 14 | Main Power Switch | |

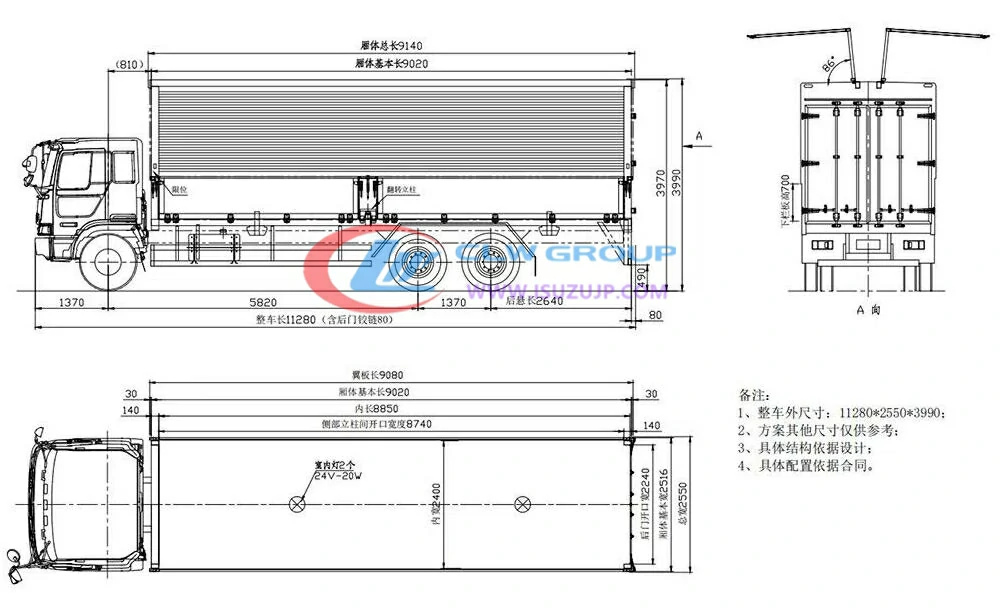

Isuzu Giga wing van truck design diagram：
Technical training support:
Truck Tools：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Export Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
