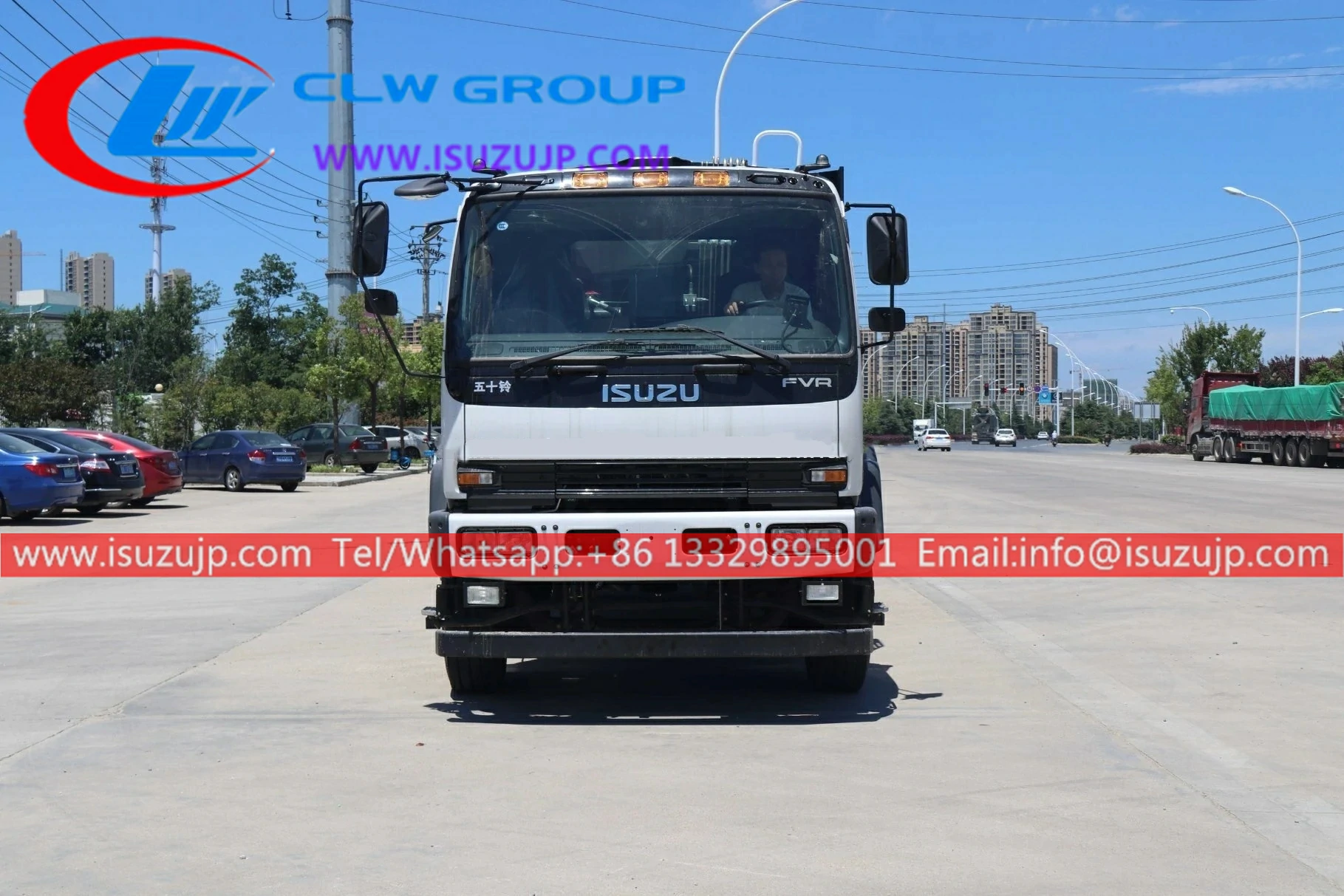

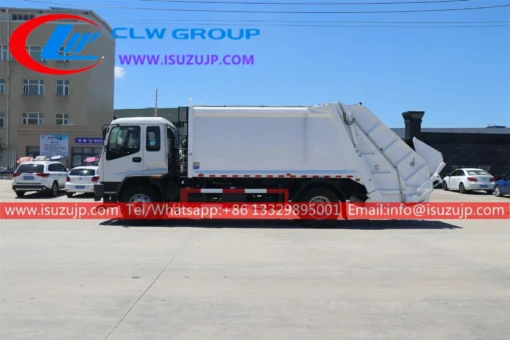

ISUZU FVR 12 ton compact garbage truck Description:
- Isuzu FVR 12 ton compact garbage truck also called Truck-mounted compactors, sanitation garbage compactor, compressing garbage trucks, waste compactors garbage truck, Hydraulic compressor garbage truck.
- The compactor garbage truck is designed for daily rubbish transport in such living areas as all kinds of cities, large stations, ports and wharves, airports, and densely-populated areas like industrial and mineral enterprises and military units.
- Chengli compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.
- Refuse compactor vehicle tail-gas discharge reaches EUROPEAN V and VI standards. which is safe and environmental-protective.
Advantage:
- ISUZU FVR Light chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
- Compression body capacity from 3 to 20 Cubic meters.
- Easy operation and easy maintenance.
- Various types of refuse container lifters are available.
Specification:
| ISUZU FVR 12 ton compact garbage truck Chassis parameters | ||||
| Chassis model | QL1180XMFRY | Chassis brand | ISUZU | |
| Overall dimensions | 9600X2500X3200mm | Wheelbase | 4700mm | |
| Front/rear wheel track | 1504/1425mm | Front/rear suspension | 1335/2450mm | |
| Approach/departure angle | 24/14° | Maximum speed | 95km/h | |
| Cab | Configuration | FVR single cab, hydraulic mechanical flip, channel type instrument panel, air conditioner, allowable 3 passengers | ||
| Color | white, another color is optional | |||
| Engine | Model | 6HK1-TCL | ||
| Emission | Euro 5 | |||
| Type | 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,4- valve,diesel engine | |||
| Rated power | 240hp | |||
| Displacement | 7780ml | |||
| Max. torque | 760N·m | |||
| Bore x stroke | 115*125mm | |||
| Manufacturer | Isuzu Engine (Chongqing) Co., Ltd. | |||
| Tire | Size | 295/80R22.5 Tire, With one spare tire | ||
| Number | 6+1 nos | |||
| Front axle | 6.3 tons | |||
| Rear axle | 13 tons | |||
| Drive form | 4*2 | |||
| Rated voltage | 24V, DC | |||
| Transmissions | MLD six-speed transmission, 6 speed forward 1 reverse. | |||
| Steering device | Power-assisted steering | |||
| Steering wheel | Left-hand drive | |||
| Refuse compactor structure parameters | ||||
| Equipment | ||||
| Loading capacity | 10m3-12m3 | |||
| System of loading | Mechanized, rear loading | |||
| Modes of the pressing | Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic | |||
| Body | ||||
| Version | All-metal | |||
| Sidewalls | Sheet carbon steel (thickness: 4 mm) | |||
| Bottom | Sheet carbon steel (thickness: 5 mm) | |||
Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material | High strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
New craft:
Various rear loading systems:
customized drawing:
Detail drawing:
Common garbage truck style:
trash collection truck technical training support:
Garbage collection vehicle tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Isuzu Truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
