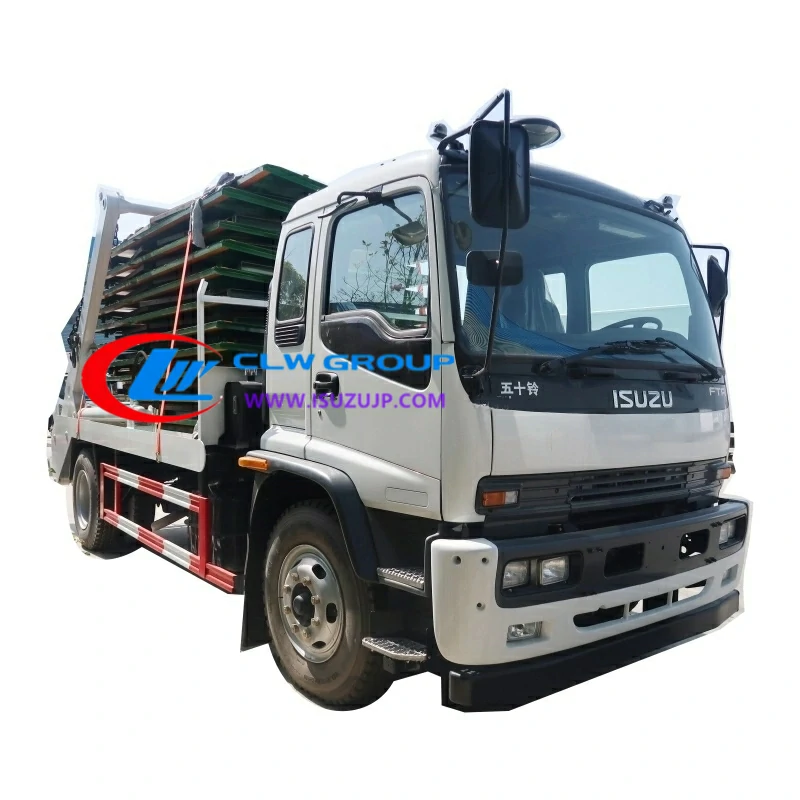

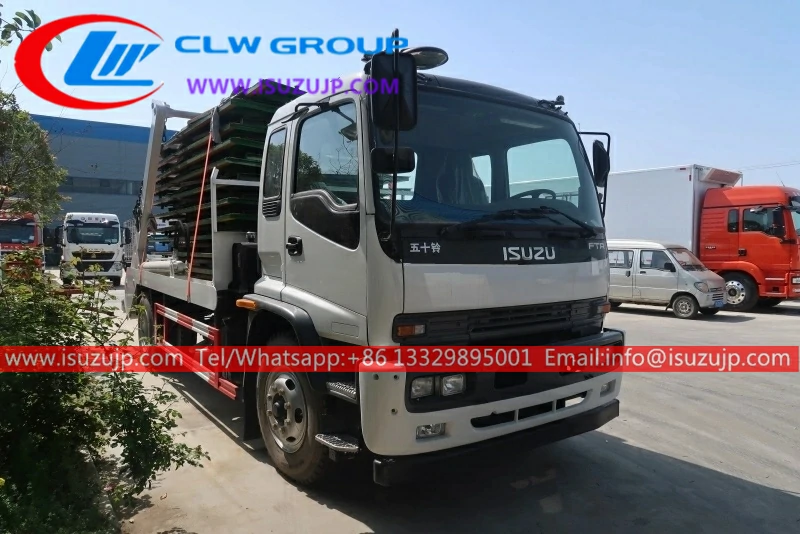

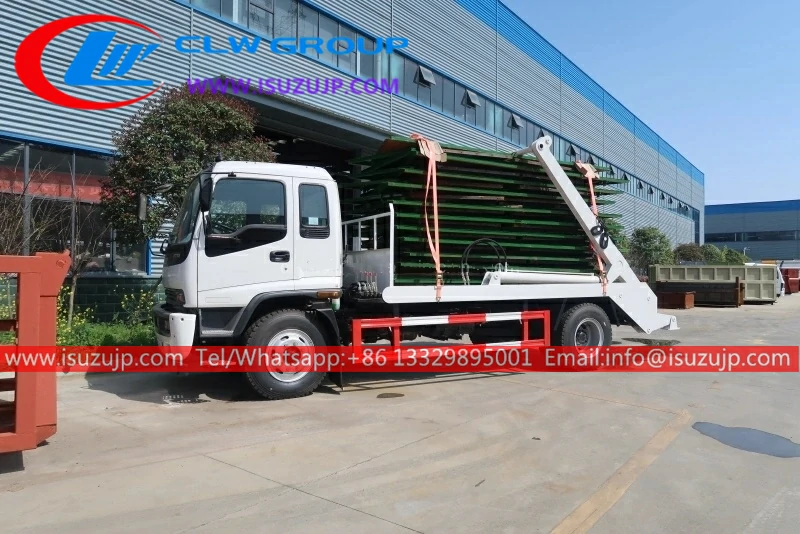

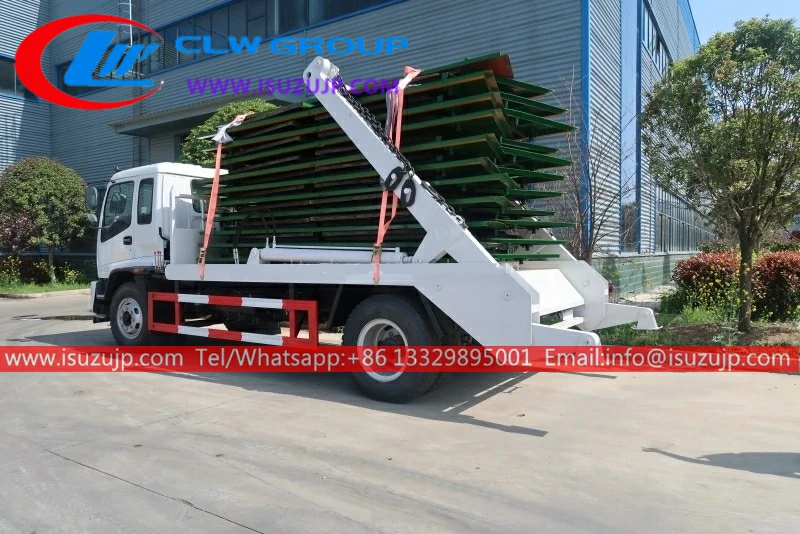

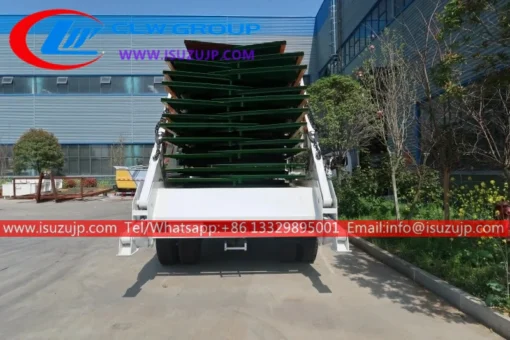

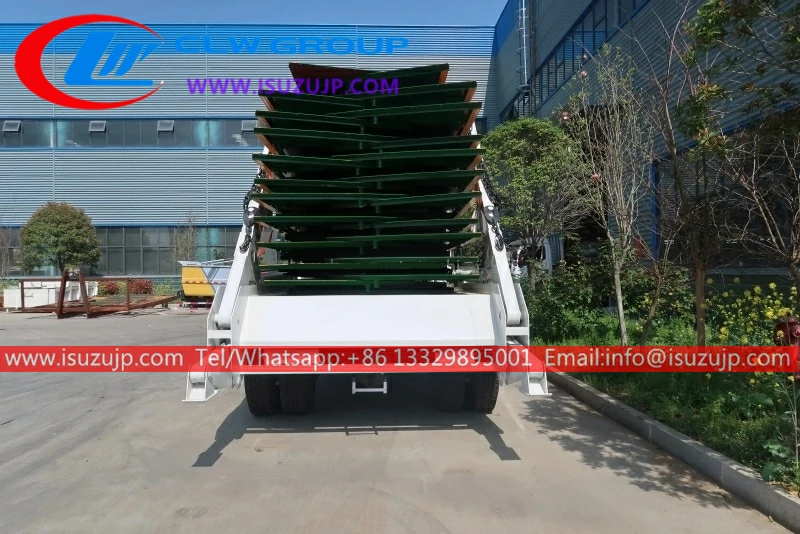

Isuzu FTR 10m3 skip bin truck Description:
- Isuzu FTR 10m3 skip bin truck is also called Swing Arm Garbage Truck, skip refuse truck, skip collection truck, skip loader garbage truck.
- Skip Loader is a garbage truck with a detachable body container. Which could enable one truck with several garbage containers for recycle use.
- It could be equipped with a cover to prevent dropping any rubbish.
Advantage:
- ISUZU NKR 600P chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- The dust bin material of carbon steel Q235A has more types and more specifications to meet various customers’ needs in different regions.
- Designed sewage collecting box in the bottom of fill device, the sewage directly flow into the box, avoid re-pollution.
- Hydraulic systems: two separate kinds of hydraulic control–electric control and manual control, makes the operation more simple and convenient.
- Skip garbage trucks with detachable containers can realize the function of garbage bins and truck body separate, which means that one vehicle can work with more than one garbage cargo body, to recycle transport, and improve the transport capacity.
- Ranges of types for your customized choice. Type of garbage box: sealed, semi-enclosed. The shape of the garbage box: is a rectangular shape, trapezoidal.
Specification:
| Main Specification | |
| Production name | Isuzu FTR 10m3 skip bin truck for sale |
| Type | 4×2 left hand drive |
| Weights | |
| Payload | 10m3 |
| Curb weight (kg) | Approx.8500 |
| Dimensions | |
| Wheelbase(mm) | 4600 |
| Overall Dimension(mm) | Approx.7850×2500×3350 |
| Box dimension (mm) | 10m3 |
| Engine | |
| Engine model | 4HK1NS(205HP) |
| No of cylinder | straight-4 cylinders,turbocharged,inter-cooling,water-cooling |
| Displacement(L) | 5.9L |
| Max power | 151kw/2200rpm |
| Max torque | 500N.m/ |
| Emission standard | Euro V |
| Drive Line | |
| Transmission | MLD,6 forward gears & 1 reverse ,manual |
| Steering | ZF8198 Power steering |
| brake | Air brake |
| Cab | |
| Configuration standard | A/C |
| Axles | |
| Front axles | HF7 |
| Rear axles | ST13 |
| Tire specification | |
| Tire | 295/80R22.5 standard tire,6 tires+1 spare tire |
| Garbage box | |
| Box capacity | 10m3 Carbon steel |
| Equipment | skip bucket ; pump ; power take-off ; multi-directional control valve ;spill valve ;one-way hydraulic valve ;balance valve,pipeline ,etc . Lifting& Unloading Time less than 45s |
structure diagram:
Skip loader Operation status:
skip lorries Structure diagram:
Detail drawing:
Common garbage truck style:
Operating procedures:
Garbage collection vehicle tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Isuzu Truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
