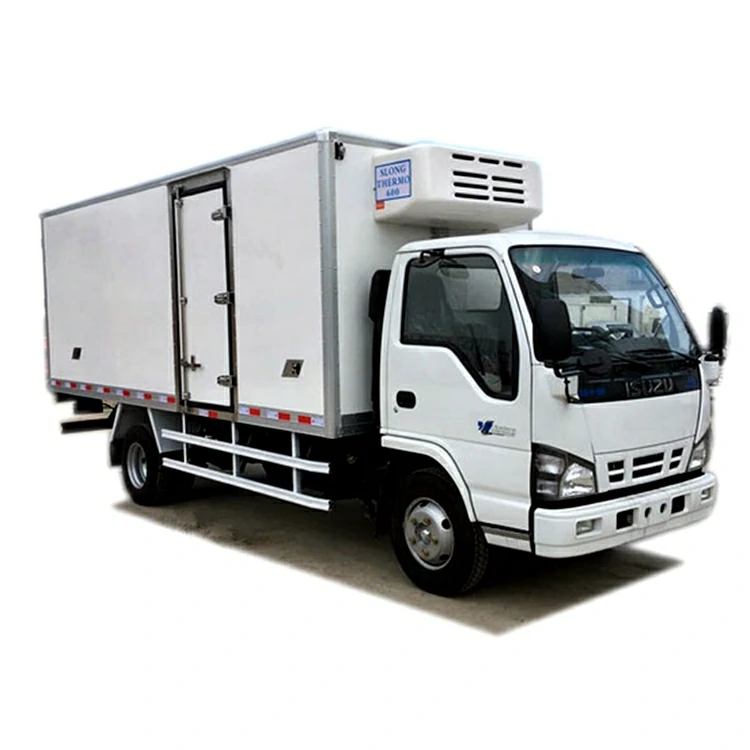

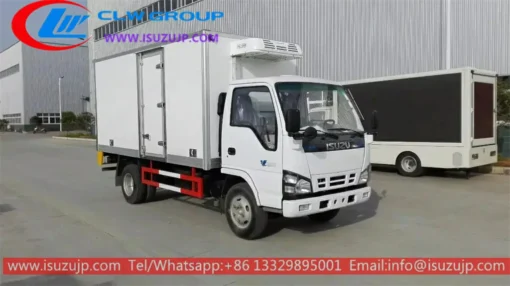

ISUZU 600P vaccine cold chain delivery vehicle Description:
- ISUZU vaccine cold chain vehicle also called refrigerated vaccine truck，vaccine transportation truck，Vaccine transfer truck，vaccine cold chain vehicle，vaccine cold chain truck，medicine transport refrigerated truck，mobile covid vaccine truck.
- Vaccine cold chain trucks are used to transport human and animal vaccines and medicines.
Features:
- It adopts airtight transportation, the rear door is a double-layer airtight structure, and the labyrinth seal is adopted, and the compartment is completely enclosed.
- The inner wall of the compartment can be a stainless steel plate, which can be corrosively disinfected.
- The bottom circumference and corners of the carriage are smoothly treated and should be cleaned and disinfected.
- All are equipped with special functions such as temperature and humidity recorder, ventilation slot, micro printer, GPRS positioning and so on.
Advantage:
- 100% custom-made
- 3 cbm to 40 cbm available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- Refrigeration system brand can be optional.
- Transport temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C -25°C.
Specification:
| ISUZU 600P cold chain delivery vaccine vehicle | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6995X2300X3000 mm | |
| GVW / Kerb Weight | 7,380kg / 3,800kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 120 HP (72 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro 5 | |
| Chassis | Drive Type | 4X2 (left hand drive) |
| Transmission | MSB 5-shift speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tire Specification | 7.00R16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body size | 5150×1900×2000(mm) |
| Load Capacity | 5 Tons | |
| Panel Structure | Fiberglass sandwich polyurethane | |
| Front/Side/Rear panel | Panel Thickness: 85mm | |
| Roof/Floor panel | Panel Thickness: 105mm | |
| Lights & Switch | Led, Water-proof, 12V/24V convertible | |
| Lowest temperature | -5°C or -20 | |
| Equipment | Standard: Aluminum alloy flooring, rear doors. Optional: 1. Hydraulic Tailift and Cargo Control System. 2. Side doors, side steps and ladders. 3. Different temperature area control. 4. Customized floor roller design for convenient working. | |
Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
reefer truck New craft:
Frozen truck Optional configuration:
Freezer car Bodywork details:
Isuzu Cold chain transport truck box Internal details：

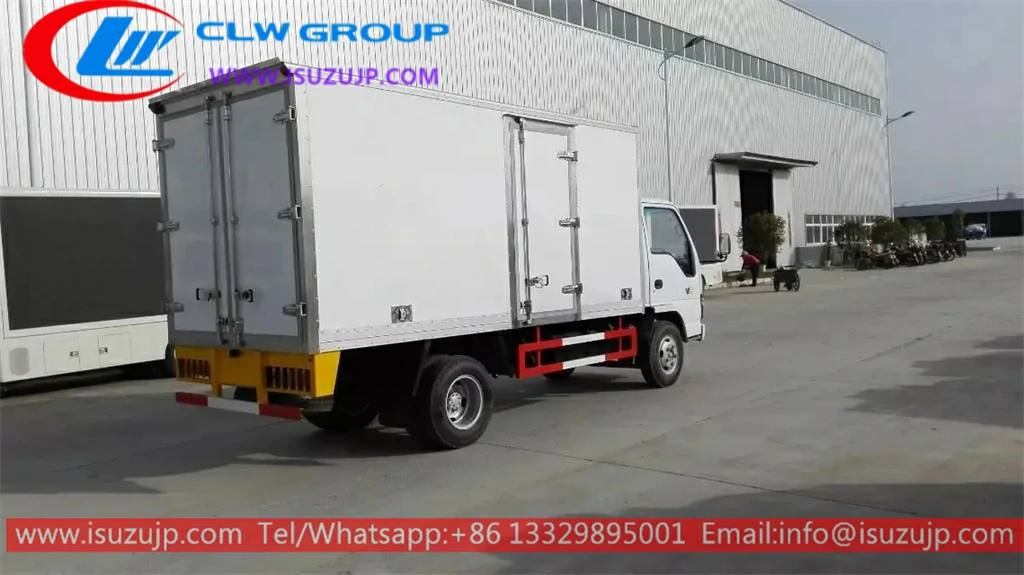

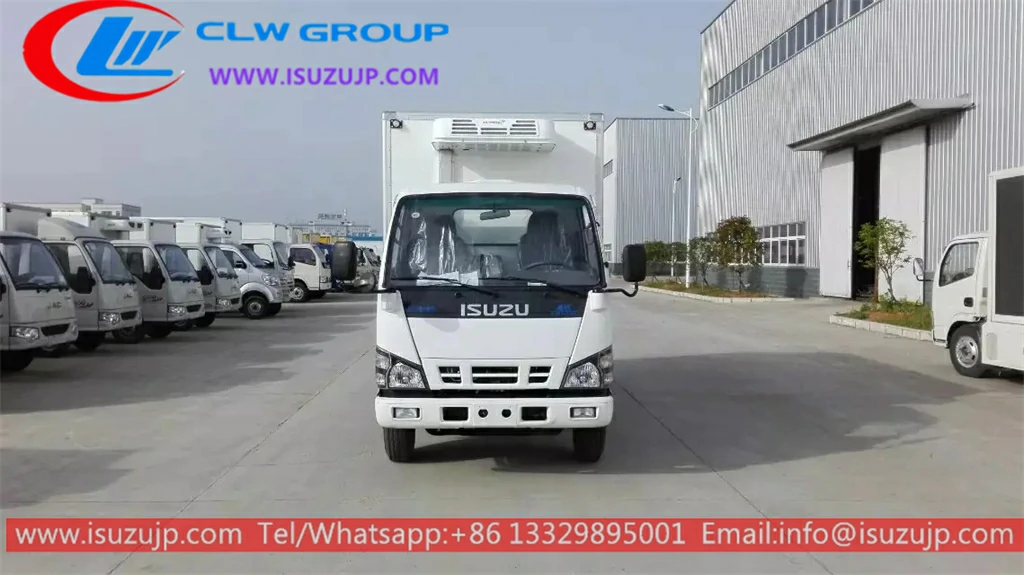

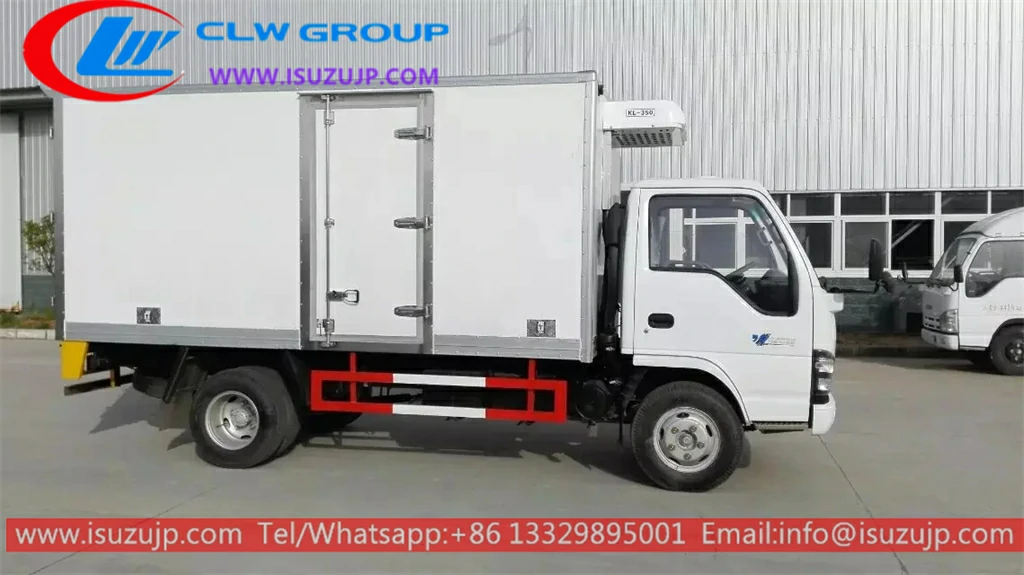

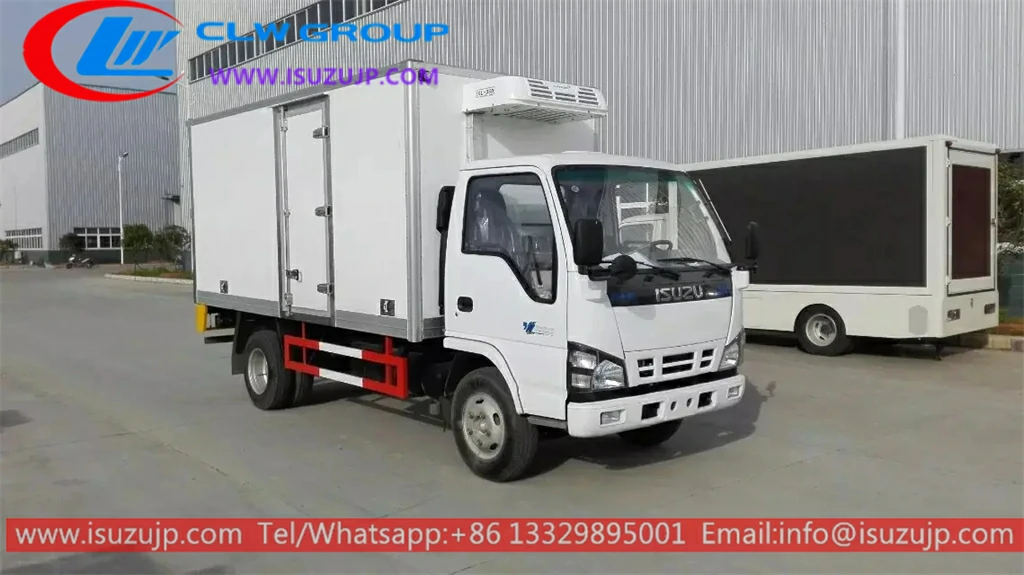

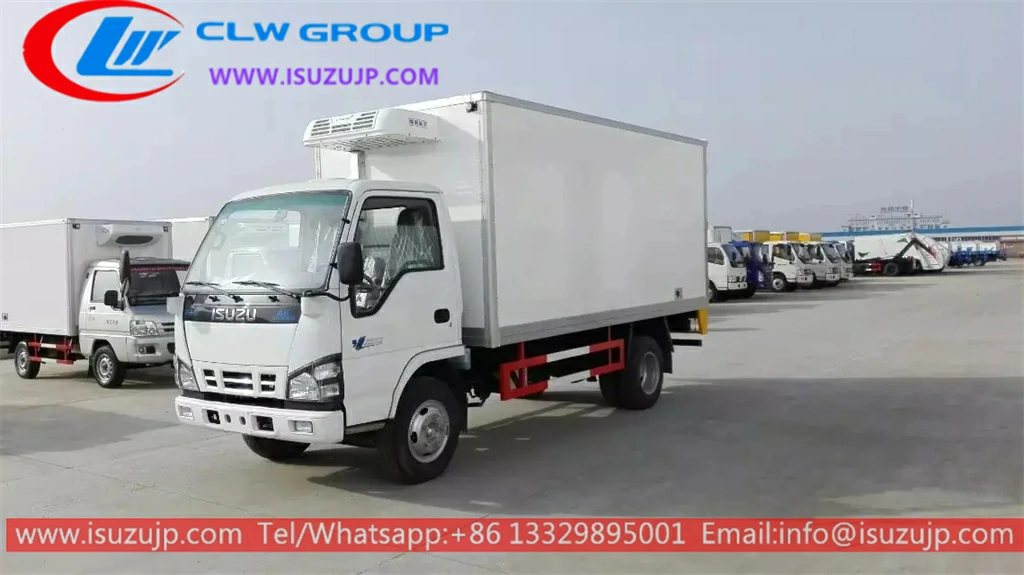

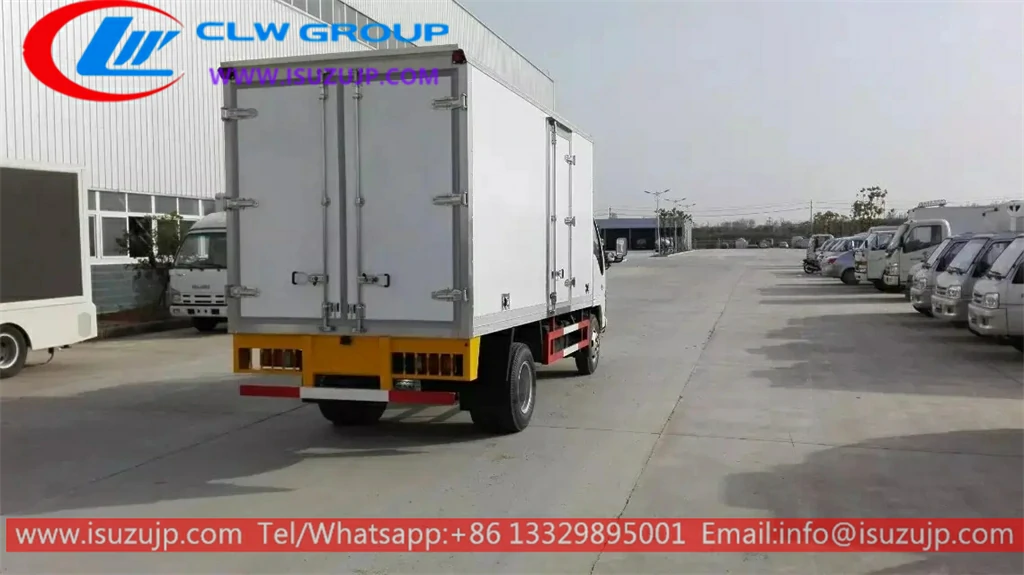

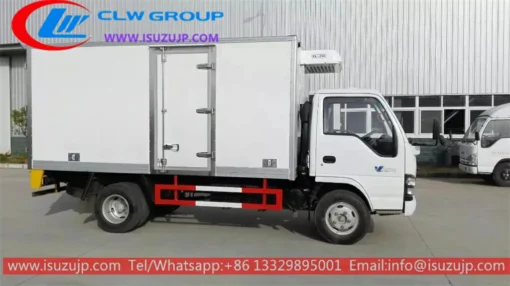

1ton to 40ton fridge truck product Display：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
