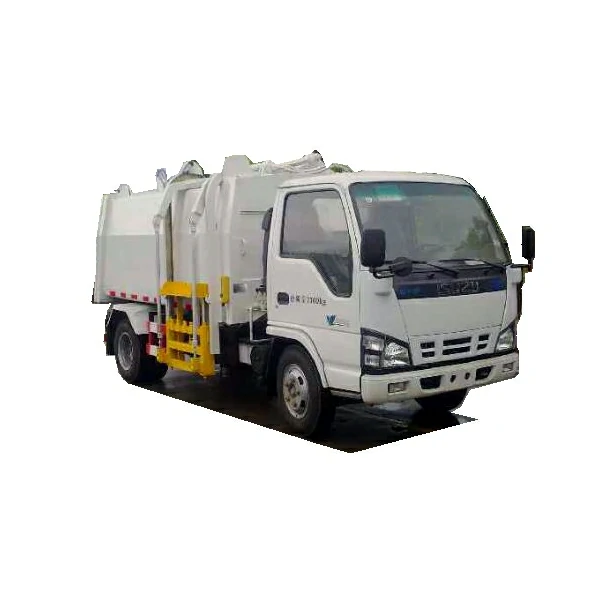

ISUZU 5t side loader rubbish truck Description:
- ISUZU side loader rubbish truck is mainly used in various environmental sanitation municipalities and large factories and mines departments to carry all kinds of garbage. It can also transport ash, sand, stone, soil and other bulk construction materials, and it can also transport ore or coal in mines or coal mines.
- It consists of a sealed garbage compartment, a hydraulic system and an operating system. Lifting oil cylinders (2) trash compartments can be lifted up and down, and the next working cycle time is less than or equal to 50S.
Advantage:
- ISUZU 4K-ENGINE chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- A truck can be equipped with dozens of trash cans, which can realize the joint operation of one truck and multiple trash cans, and circular transportation, which fully improves the transportation capacity of the vehicle.
- It is especially suitable for short-distance transportation, such as the cleaning and transportation of urban garbage by the environmental sanitation department.
- It can also be equipped with other functions, side-mounted compactor garbage truck, Kitchen Waste Disposal Truck, Waste Food Collection Truck, food waste truck.
Specification:
| ISUZU 5t side loader rubbish truck | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU 4K-ENGINE | |
| Overall Dimension | 6000X2000X2500 mm | |
| GVW / Kerb Weight | 7,300 kg / 3,500 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Dongfeng Chaoyang engine | |
| Power | 120 Hp (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand or right hand drive |
| Transmission | 5 speed forward, 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Waste Box Capacity | 5m³ |
| Waste Box Material | Carbon steel | |
| All other standard accessories: Tool kit, English manual | ||
| Optional | Left side loading or Right side loading. Automated side loading equipment could be designed according to the size of dustbin. | |
Working parameter:
| Optional volume | 3-15 cubic | Bucket time | Less than 10 seconds |
| Bucket type | Plastic bucket or iron bucket | Unloading time | Less than 15 seconds |
| Hanging bucket size | 120 liters, 240 liters | Operating position | Car right |
structure diagram:
Side loader refuse truck Operation status:
Food waste disposal truck Structure diagram:
Detail drawing:
Common garbage truck style:
Operating procedures:
Garbage collection vehicle tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Isuzu Truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
