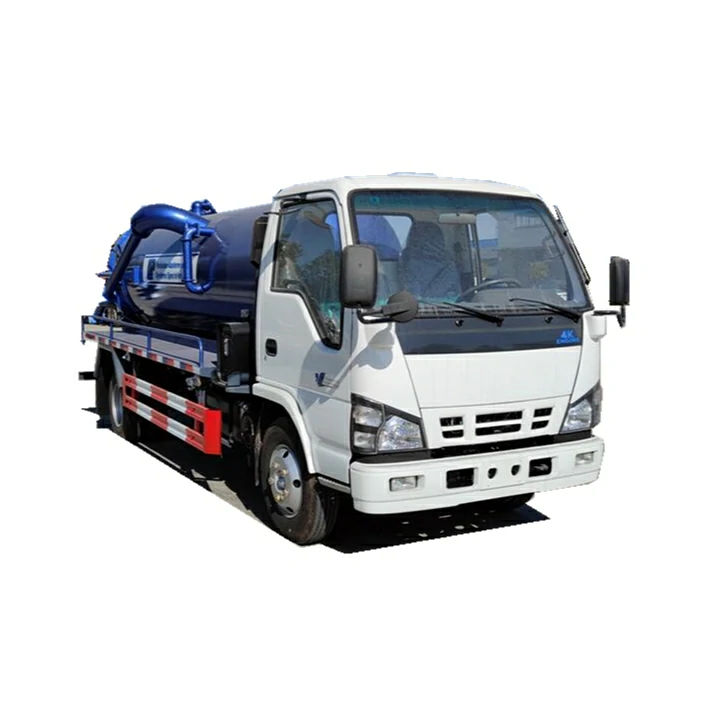

ISUZU 4K-Engine 5 ton sewer tanker Description:
- ISUZU 4K-Engine 5 ton sewer tanker also called suction vacuum truck, vacuum vehicle, sewage tank truck, Sewage disposal tank trucks, vacuum tank trucks,sewer tanker trucks.
- A vacuum sewage suction truck is used for suction, transportation and dumping soil and mud from various sewer man-hole, water wells and sediment.
Advantage:
- 100% custom-made
- 3,000L to 30,000L available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- ISUZU ELF 700P chassis, perfect performance
- ISUZU technology engine option, super-powerful, no overhaul within 500,000 km.
Specification:
| ISUZU 4K-Engine 5 ton sewer tanker sale in dubai | ||
| Function | ||
| Function: It is designed for cleaning sludge, mud, sedimentation from sewage, rainwater wells, inspection wells, septic tanks and a variety of channels. It is useful for cleaning the city sewer, pipeline sediment, mud ditch dredge, can also be used for cleaning industrial drainage pipes, wall and so on. | ||
| Vehicle description | ||
| Overall Dimension mm (LxWxH) | 6,720×2,050×2,500 (mm) | |
| Max.Weight | 11,495 (kg) | |
| Curb weight | 4,150 (kg) | |
| Suction tanker description | ||
| Tanker | Capacity | 5,000L |
| Material | High-quality carbon steel, 6mm thickness | |
| Thickness | 6mm for tanker body and rear cover | |
| External tank treatment | Rustproofing treatment as standard | |
| Structure | Machine welding automatically, cylindrical tank | |
| Hydraulic dump system | The tank lift angle could be higher up to 45° | |
| Rear door hydraulic open Hydraulic lock with mechanical interlocking | ||
| Painting as previous order | ||
| Chassis Description | |||
| Chassis brand | ISUZU – 600P model | ||
| Chassis condition | Brand new – the year of 2021 | ||
| Cab | Exporting standard – 600P cab | ||
| Two-seat with A/C | |||
| Driving type | Left-hand driving, 4×2 – 6wheeler | ||
| Tire | 7.00R16 tire, 6+1(pcs) | ||
| Engine | Brand | ISUZU – 4KH1-CN5HD | |
| Fuel | Diesel | ||
| Emission standard | Euro V – without ad blue | ||
| Displacement | 3000cc | ||
| Horsepower | 130hp / 96kW | ||
| Number of cylinders | 4 | ||
| Maximum torque | 290 N.m at 1500-1900rpm | ||
| Gear box | Brand | ISUZU – MSB | |
| Number of gears | 5 Forwards gear & 1 reverse gear | ||
| Axle | Front | 2.5T | |
| Rear | 4.8T | ||
Working parameter:
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
New craft:
Optional configuration:
vacuum tank truck composition structure:
Detail drawing:
Sewer cleaning truck technical training support:
Sewage tanker truck part,tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Sewer truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
