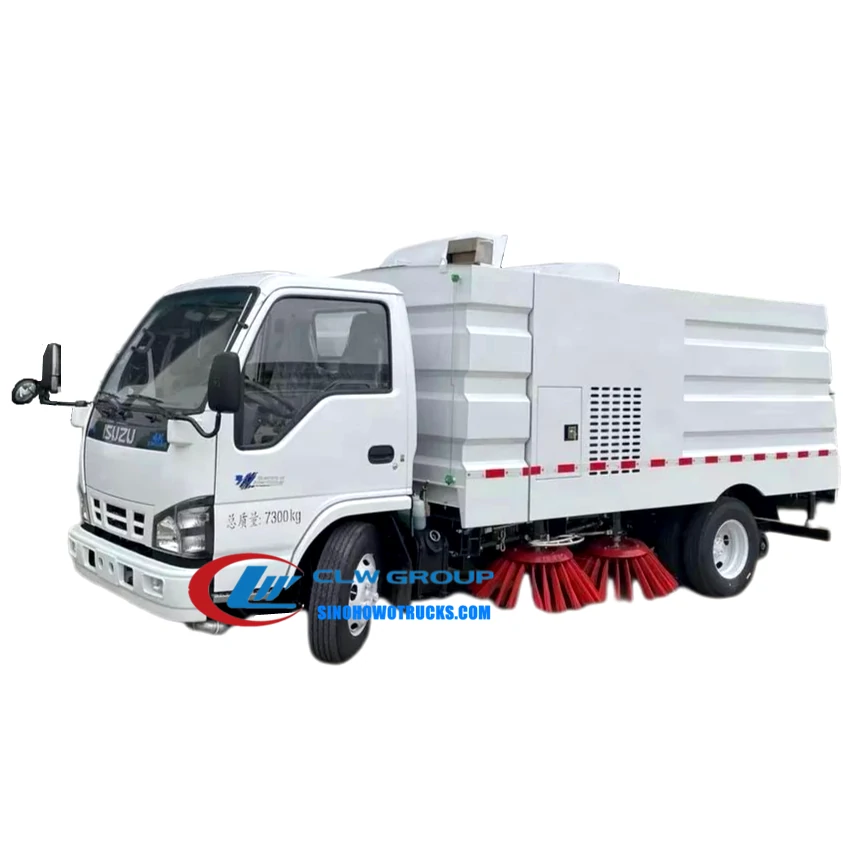

ISUZU 120HP truck mounted road sweeper Description:
- ISUZU 120HP truck mounted road sweeper also called street sweeper, vacuum sweeper, road sweeping truck, street sweeping truck, road cleaning vehicle
- A road sweeper is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas.
- This unit shall be suitable for dry-type cleaning job as well as dust suppression with water spray in the roadside and narrow lanes.
- CHENGLI road sweeper truck uses whole stainless steel material tanker, Original Italy or America motor for easy operation, ISUZU auxiliary engine, efficiently avoiding secondary pollution.
Advantage:
- ISUZU NKR chassis, no overhaul within 500,000 km.
- ISUZU engine, super powerful; reliable performance.
- Nice shape, rational structure
- Italy imported high-pressure pump, super powerful, efficient pump in and out Strong, durable, perfect performance.
- Road Sweeper body capacity from 2 to 16 Cubic Meter.
- Easy operation and easy maintenance.
- Virious types of refuse container lifters are available.
Specification:
No | Item | Data |
1 | Product Name | ISUZU 120HP truck mounted road sweeper Malaysia |
2 | Cabin | 600P Cabin, single row , three person allowed, Manual doors and Windows and rearview mirror/MP3/ power steering/fabric seat. |
3 | Driving type | 4X2 Left hand driving |
4 | L*W*H(mm) | 6200*2010*2530 |
5 | GVW | 7300 kg |
6 | Pay load | 2240 kg |
7 | Kerb Weight | 4930 kg |
8 | Axle load capacity | Front 2.4T, Rear 4.5T |
9 | Tire | 7.00R16 6+1 |
10 | Wheelbase(mm) | 3360 |
11 | Steering | Hydraulic steering with power assistance |
12 | Gear box | Manual, Model MSB, 5 forward speed+1 reverse |
13 | Braking system | Oil brake |
14 | Engine Power | IZUSU model. 4KH1CN5HS, 96KW / 130HP, 2999ML |
15 | Emission Standard | Euro 5 Diesel |
16 | Secondary Engine | JE493-G3 57kw/77hp |
17 | Accelerate outside noise | ≤ 84dB （ A ）, Meet the noise level 2 requirement |
18 | Sweeping efficiency | ≥95% |
19 | Sweep width | 3.0m |
20 | Maximum cleaning capacity | 60000 m2/h |
21 | Volume | Water Tanker: 1.5 m3 Garbage Tanker: 4.0 m3 |
22 | Working Pressure | 16MPa |
23 | Electric Voltage | 12V |
24 | Increase function | With front flush and rear spray function Install an extra hose on rear door for hand-hold vacuum sucking dirt. |
25 | Sweep plates No. | 4 pcs. |
26 | Sucking disc | 1 set. |
27 | Standard spare parts | Brushes , door seals…. |
28 | Warranty | For 1 year since the truck leave factory |
29 | Delivery time | With 35 workings days since receive deposit. |
composition structure:
Core components introduction:
Road sweeping vehicle Optional configuration:
Technical training support:
Road Sweeper accessories,tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Sweeper machine shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Sewer truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
