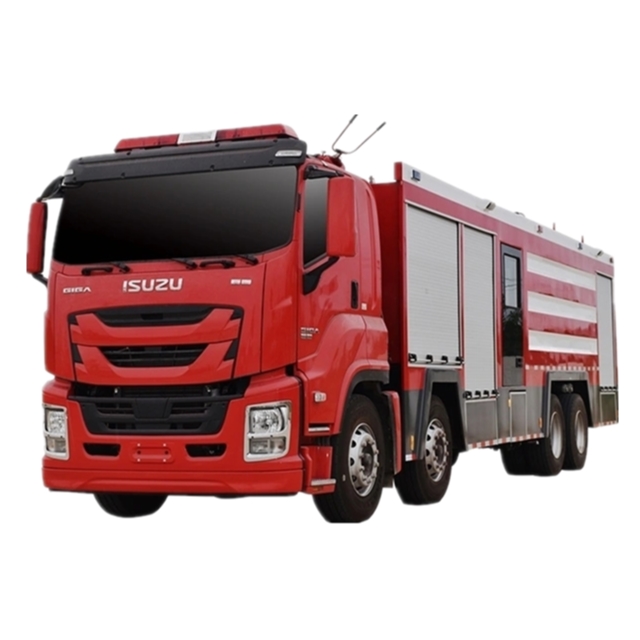

8×4 ISUZU GIGA 25 ton Fire fighting truck Description:
- ISUZU Fire fighting truck also called fire fighting tanker, fire appliance, fire fighting engine, fire-extinguishing water truck, service truck, fire rescue truck, fire engine, fire tender, fire vehicle, fire fighting equipment, fire fighting foam tanker.
- This fire truck designed primarily for fire fighting operations – to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
- Fire fighting trucks types: Water fire truck, Foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
- Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other dapartments.
Advantage:
- 100% custom-made
- ISUZU GIGA heavy duty Chassis, Durable & Performance.
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- High performance fire pump and fire cannon
- Water tank and Foam tank capacity can be optional.
- Tanker material: Carbon steel or Stainless steel
- A complete set of fire fighting Accessories & Equipment, your can put work immediately.
- Easy operation and easy maintenance.
- FREE training in our factory if you need.
Specification:
| ISUZU GIGA 25 ton Fire fighting truck | ||||
| General | Vehicle Brand | CHENGLI | ||
| Chassis Brand | ISUZU | |||
| Overall Dimension | 12600 * 2670 * 3890 mm | |||
| GVW / Kerb Weight | 42,000 kg / 17,820 kg | |||
| Cab | Cab Capacity | 2+4 persons allowed | ||
| Air Conditioner | W/ air conditioner | |||
| Engine | Fuel Type | Diesel | ||
| Engine Brand | ISUZU engine, 6WG1-TCG51 | |||
| Power | 460 Ps (338 KW) | |||
| Displacement | 15681 ml | |||
| Emission Standard | Euro V | |||
| Chassis | Drive Type | 8X4, left hand drive | ||
| Transmission | 12-speed forward, 2 reverse | |||
| Wheelbase/No. of axle | 1850+4575+1370 mm / 4 | |||
| Tyre Specification | 315/80R22.5 | |||
| Tyre Number | 12 tyres and 1 spare tyre | |||
| Max Speed | 90 km/h | |||
| Paint | Metallic paint | |||
| Superstructure | Water Tank Capacity | 12,000 Litres ( About 3,200 gallons) | ||
| Foam Tank Capacity | 3,000 litres( About 800 gallons) | |||
| Dry Powder Tank Capacity | 2,000 Litres (About 500 gallons) | |||
| Tank Material | water tank: Carbon steel foam tank: stainless steel dry powder tank: carbon steel | |||
| Nitrogen Gas Bottle | 70 Litres x 6 pcs | |||
| Fire Pump | Flow speed | 100 L/s | ||
| Pressure | 1.0M Pa | |||
| Fire Cannon | Flow speed | 48 L/s | ||
| Shot | Water | ≥ 60 m | ||
| foam | ≥ 55 m | |||
| Suction Head | 6 m | |||
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |||
| All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include shovel, pike poles, axes and cutting equipment, halligan bars.… | ||||
| Optional | Ladders, floodlights… | |||
ISUZU Fire fighting vehicle Bodywork details:
Fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | straw | 125×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF125 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII125/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | Internal button |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Fire extinguisher | 3KG | 1 | With | |
| 16 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 17 | Rubber hammer | 1 | Piece | ||
| 18 | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 12V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand lift the pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |

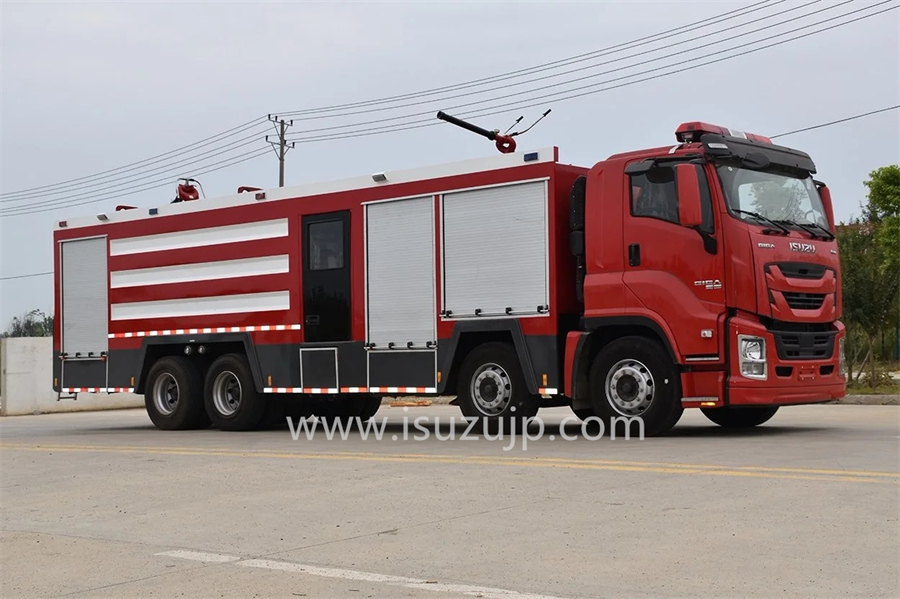

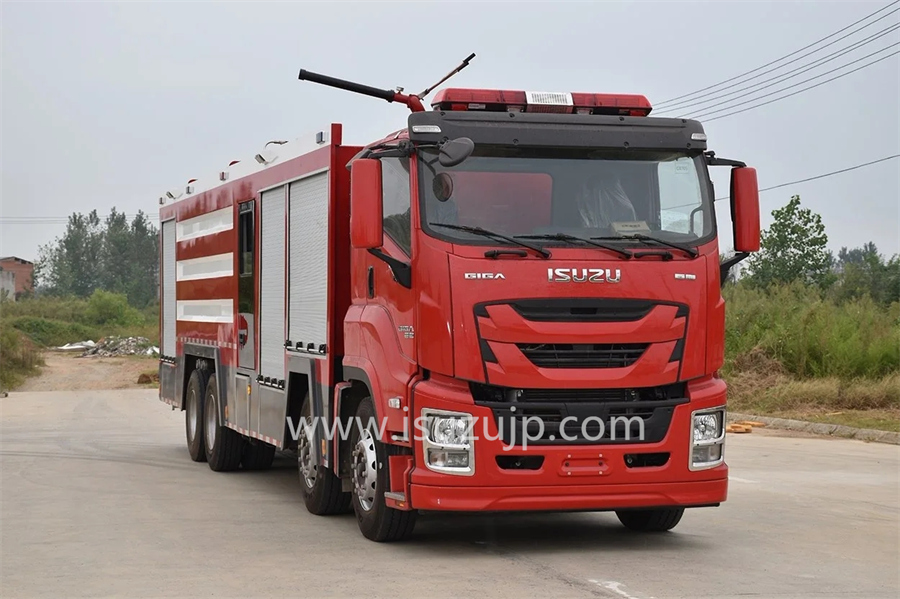

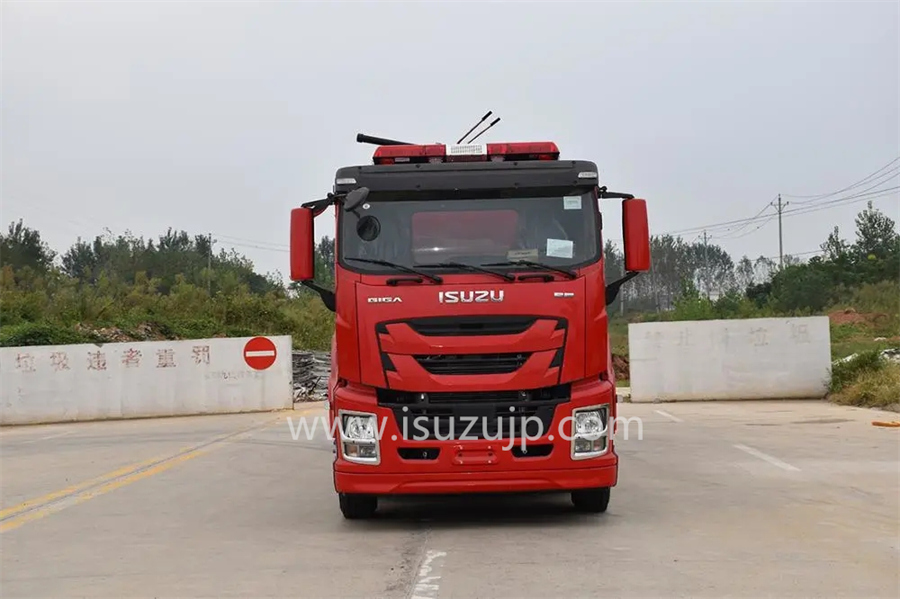

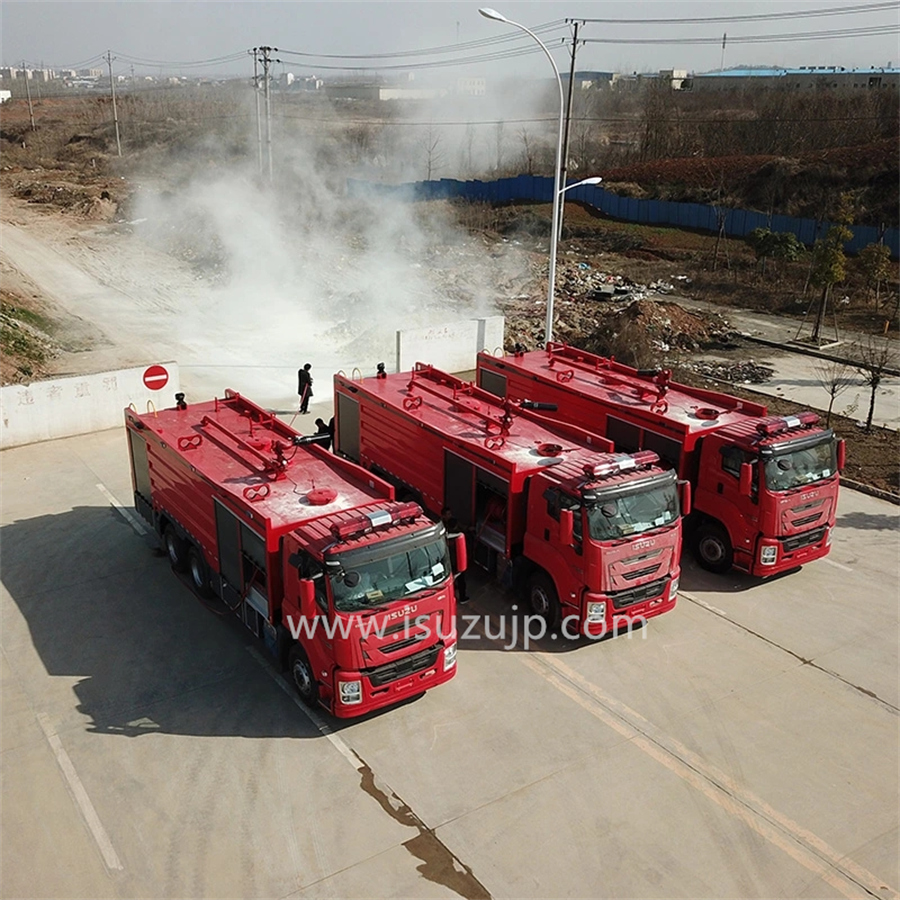

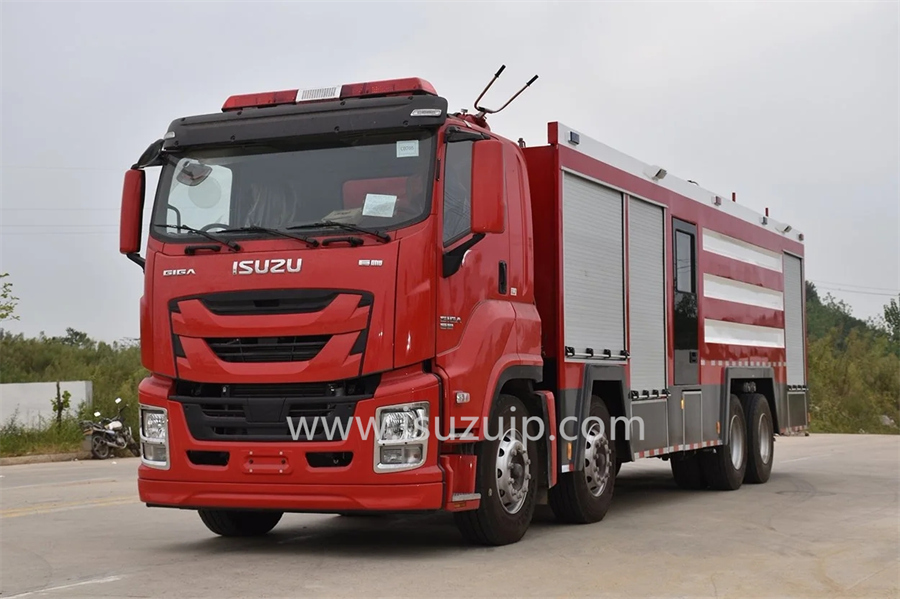

fire fighting engine Parts Picture：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
