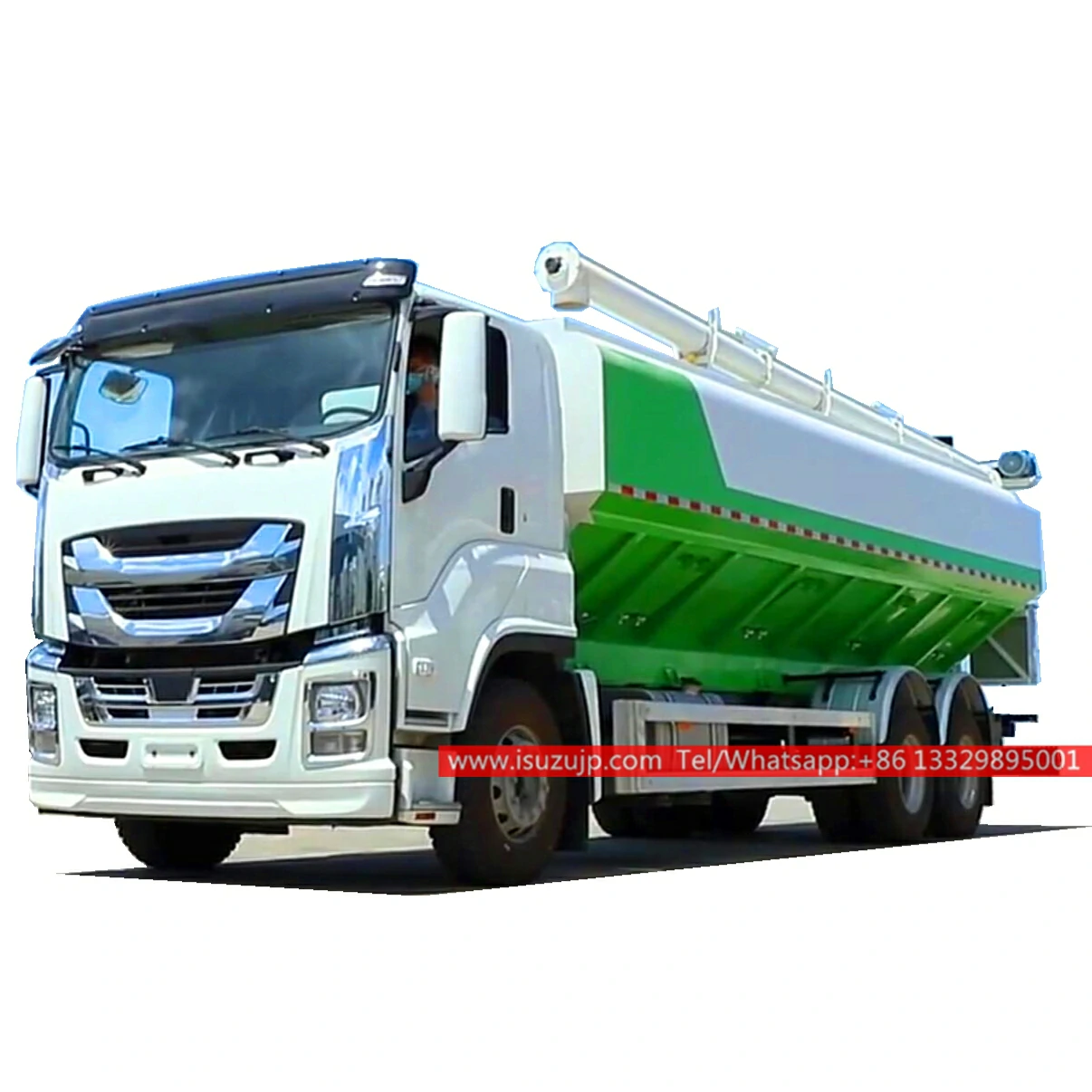

6×4 Isuzu Giga 15 ton animal feed truck Application:
- Isuzu animal feed truck also called feed delivery truck, bulk feed truck, poultry feed truck, chicken feed transport truck.
- Feed truck is mainly used to transport bulk finished feed products or raw feed production grains from feed factories to livestock farms, poultry farms and feed processing users;
- At the same time, it can also be used to transport certain non-corrosive powdery and granular raw materials, such as powder for pharmaceutical factories and grain storage turnover.
Advantage:
- ISUZU GIGA chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Transporting feed in bulk not only saves labor but also has a lower cost than transporting it in bags.
- Bulk feed is sealed and transported in the tank to reduce loss, ensure quality and avoid pollution.
- Fully automatic loading and unloading, continuous operation, greatly improving production efficiency.
- Separate bins can be installed in the tank, which can simultaneously transport a variety of different types of feed or puffing media.
- The parts are standardized and easy to repair and maintain.
Specification:
| Items | Descriptions | Specifications and Types |
| General | Truck Name | 6×4 Isuzu Giga 15 ton animal feed truck |
| Drive Type | 6*4 left-hand drive | |
| Gross Vehicle Weight(kg) | 26000 | |
| Curb Weight (kg) | 12800 | |
| Overall Dimensions (mm) | 10600×2500×4000 | |
| Engine | ||
| Fuel Type | Diesel | |
| Power | 257kw/350HP | |
| Emission Standard | Euro V | |
| Displacement(ml) | 9800 | |
| Engine Type | 6 cylinders in line, water cooling, turbocharged diesel engine,inter-cooling | |
| Chassis | Chassis Brand | ISUZU GIGA |
| Tire No. | 10 | |
| Tire Specification | 12.00R20 Steel tire | |
| Axle No. | 2 | |
| Steering Wheel | Left-hand drive with power-assisted | |
| Gear Box | 9 speed forward with 1 reverse, manual | |
| Brake | Air brake | |
| Air Conditional | Suitable for tropical climate | |
| Tank | Tank Volume(m3) | 30 |
| Compartments No. | Depending on your requirement | |
| Discharge system | Discharge Type | Electric screw discharge or hydraulic screw |
| Discharge Speed(kg/min) | 510 | |
| Rotate angle of removable discharging system | 180° | |
| Max. elevation of removable discharging system | 60° | |
| Delivery | Max horizontal delivery distance(m) | 7.2 |
| Max Vertical delivery distance(m) | 8.5 |

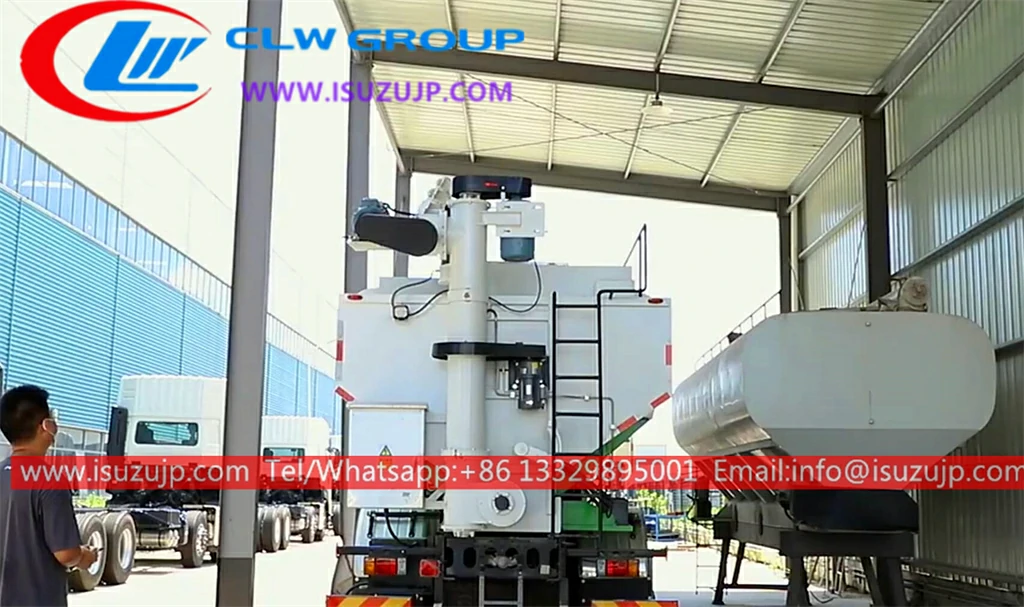

Feed delivery truck Composition structure:
Chicken feed transport truck scene working display:
The unloading speed is 1m3 or more than 0.6 tons per minute, and the entire vehicle unloading time is 12 minutes
