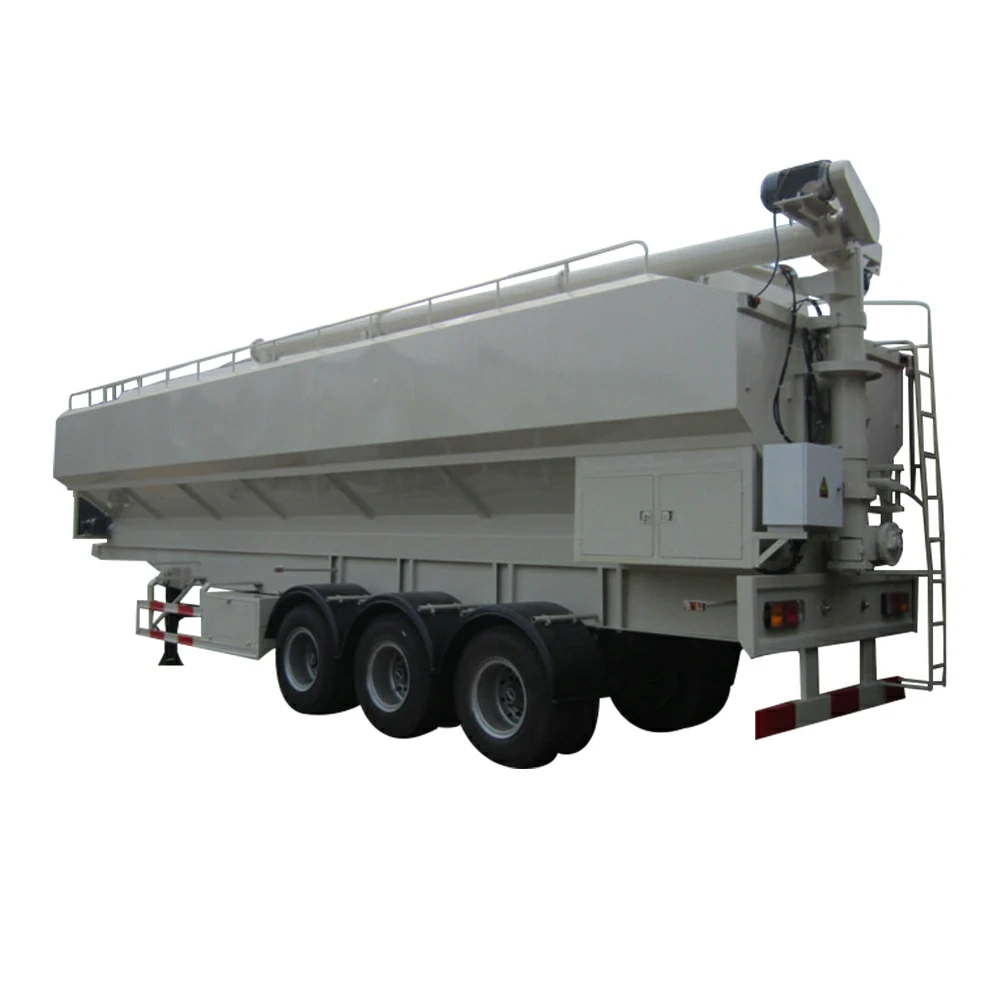

3 axle 55m3 feed trailer Application:
- feed trailer is mainly used to transport bulk feed products or raw feed production from feed mills to livestock farms, poultry farms and feed processing users.
- At the same time, it can also be used to transport certain non-corrosive powder and granular materials, such as powder and Grain depot turnover.
- A bulk feed cargo trailer is composed of running gear, loading feed tank, discharging auger system and electro-hydraulic operating system, etc.
- The feed tank body is welded and formed with high-quality steel plates.
- The bulk feed tank body usually is divided into several warehouses to load different feeds at the same time.
- The unloading of the electro-hydraulic auger saves manpower and time.
Advantage:
- Perfect performance
- Transporting feed in bulk not only saves labor but also has a lower cost than transporting it in bags.
- Bulk feed is sealed and transported in the tank to reduce loss, ensure quality and avoid pollution.
- Fully automatic loading and unloading, continuous operation, greatly improving production efficiency.
- Separate bins can be installed in the tank, which can simultaneously transport a variety of different types of feed or puffing media.
- The parts are standardized and easy to repair and maintain.
Specification:
| Product name | 3 axle 55m3 feed trailer for sale |
| Function | Transport all kinds of dry feed |
| Weight and Dimensions | |
| Overall dimension | 13000x2500x3980 mm |
| Loading weight | 24,000 kg |
| Chassis frame | |
| Main beam | Q345B steel |
| Axle brand | 13-ton FUWA or BPW |
| Axle number | 3 |
| Landing gear | FUWA or JOST 28 ton |
| Suspension system | Mechanical suspension |
| Brake | 6 big chamber brake system |
| Traction Pin | 2″or 3-1/2″ |
| Tire specification | 11:00R20 or 12R22.5 |
| Tire quantity | 12 |
| Electrical system | |
| Side marker lamp | LED type |
| Voltage | 24V |
| Receptacle | 7 Pole plug |
| Superstructure | |
| Tank body material | 4mm high-quality low alloy steel |
| Standard configuration | loading feed tank, discharging auger system and electro-hydraulic operating system, etc |
| Performance | 1:Average discharge speed (kg/min):510 2. Rotation angle of discharge system；±180° 3. Maximum elevation angle of discharge system:60° 4. Horizontal maximum conveying distance (m):7.2 5. Vertical maximum conveying distance (m)：8.2 6. Feed residual rate:≤0.10 |

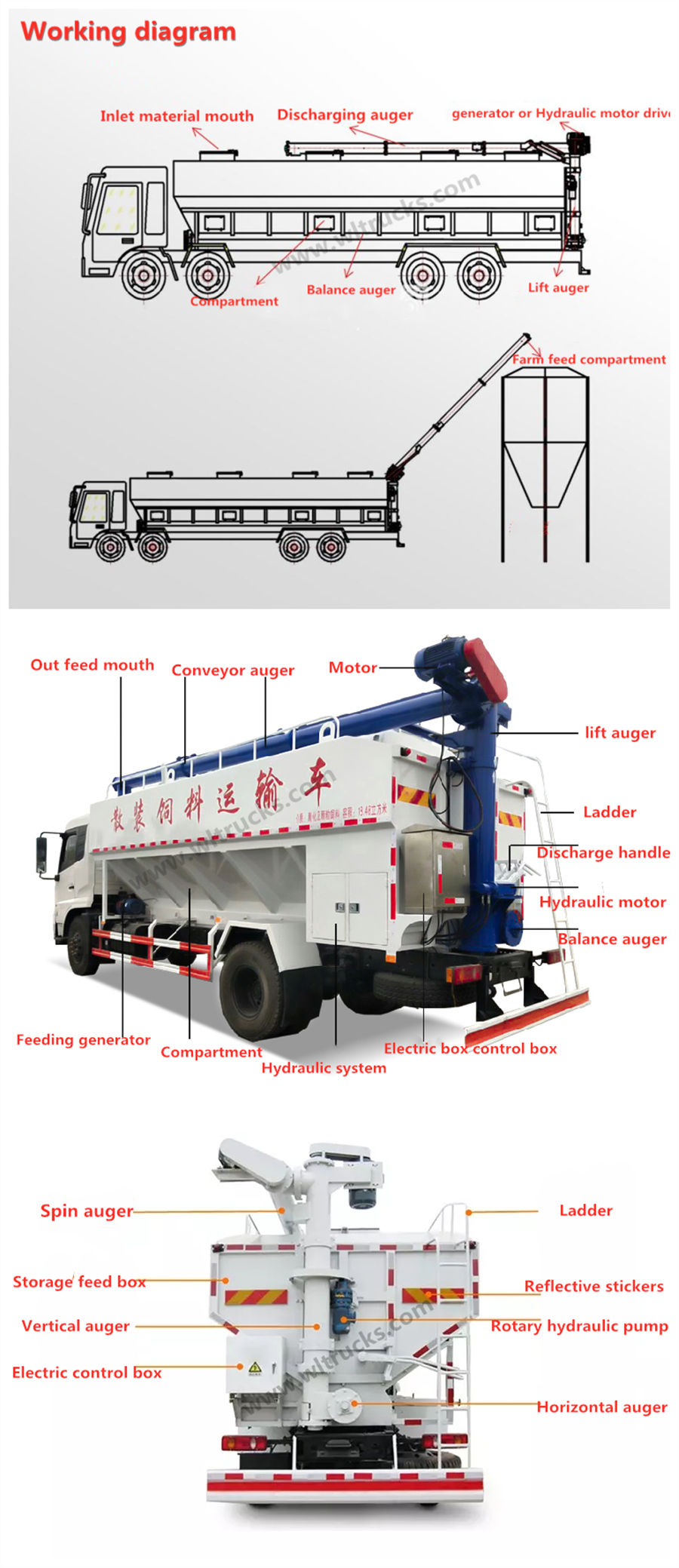

Feed delivery truck Composition structure:

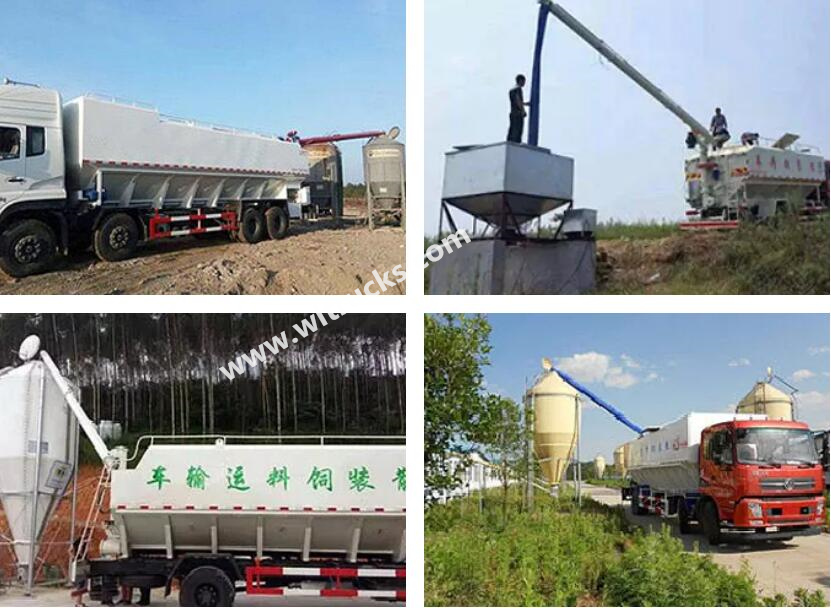

Chicken feed transport truck scene working display:
The unloading speed is 1m3 or more than 0.6 tons per minute, and the entire vehicle unloading time is 12 minutes
Our animal poultry feed truck catalog:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Export Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
