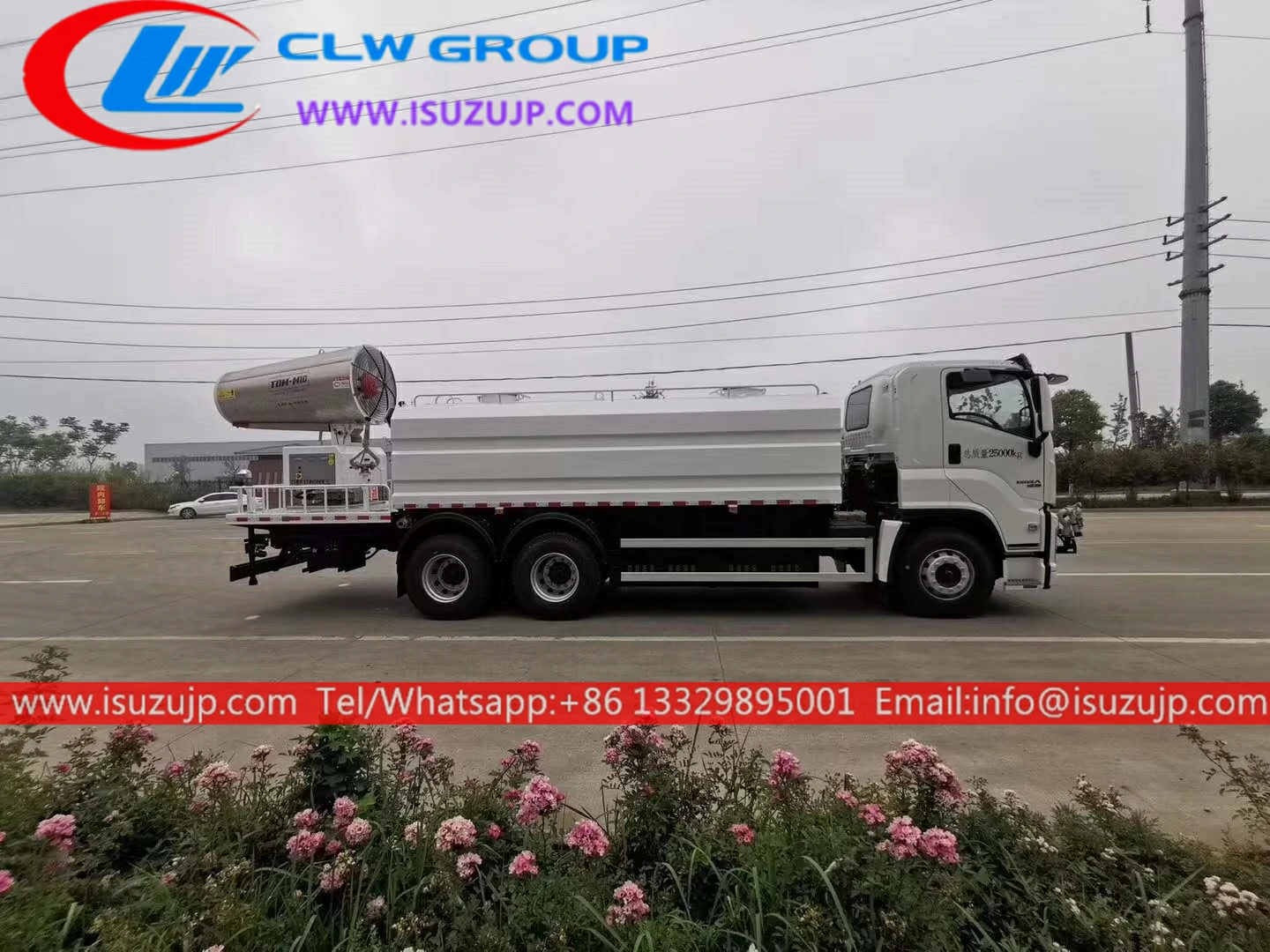

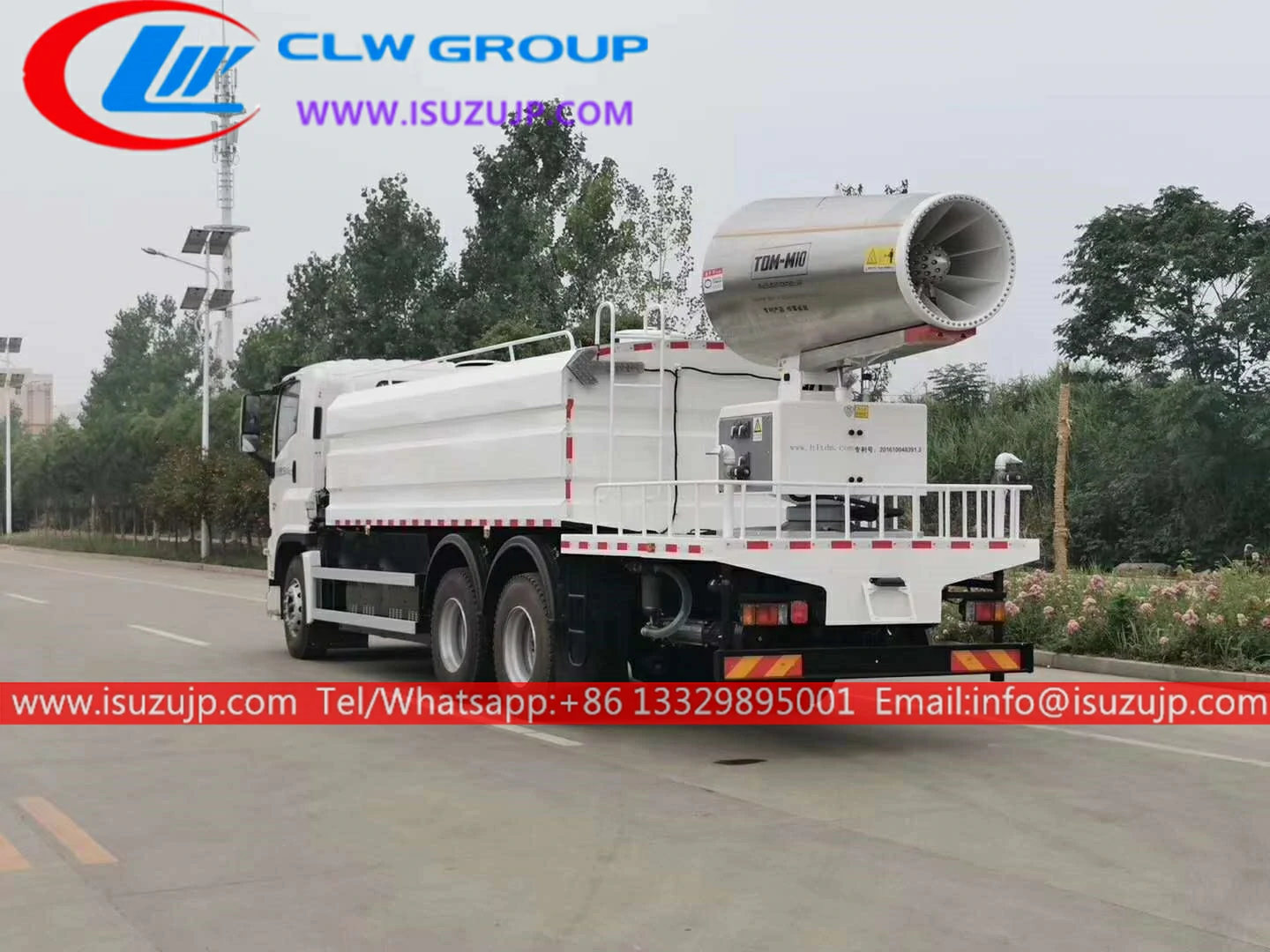

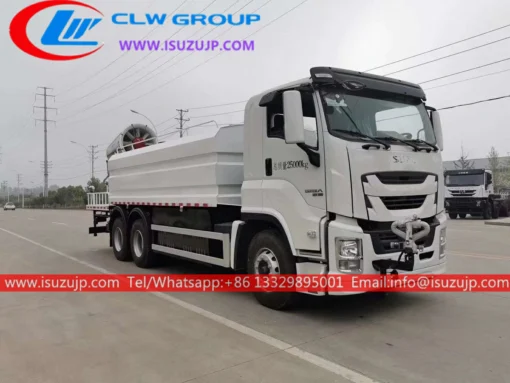

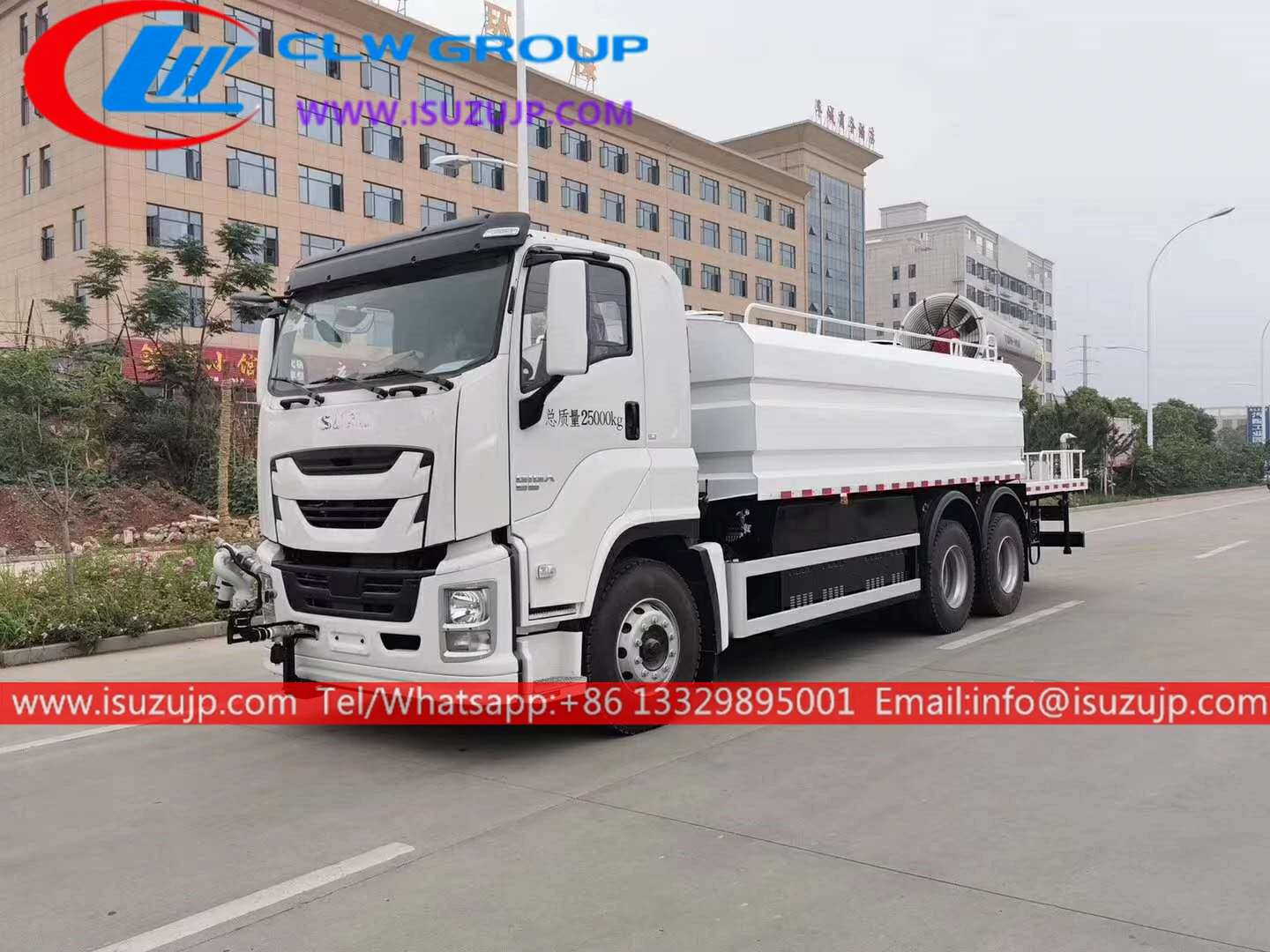

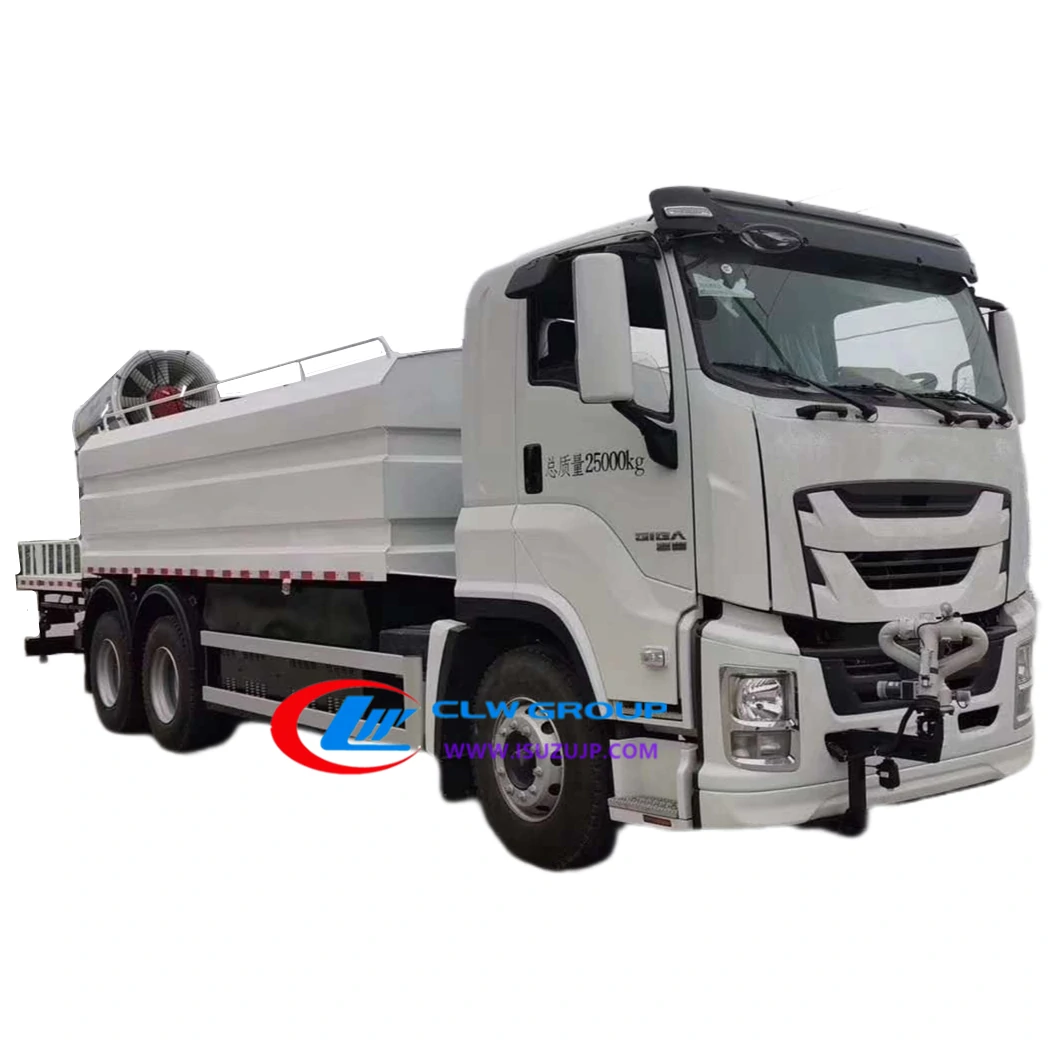

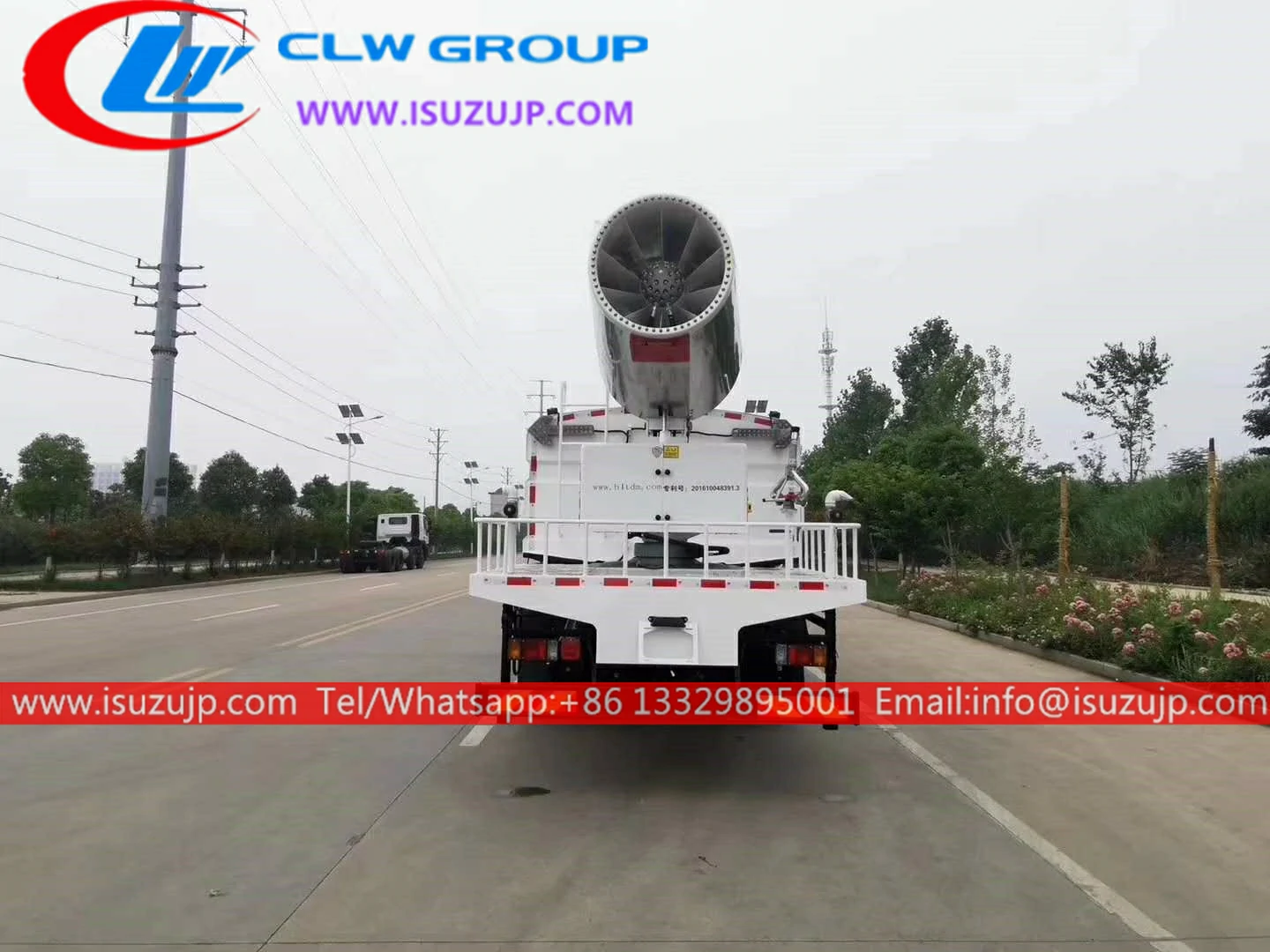

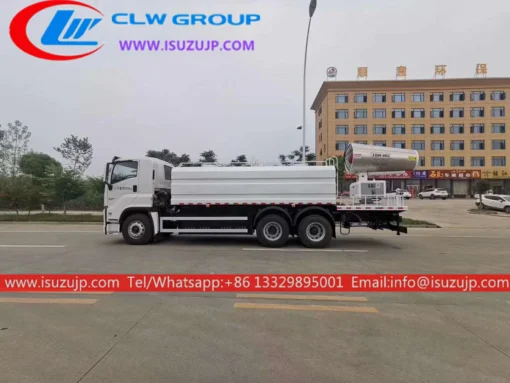

10 wheel ISUZU GIGA 18000liters construction dust control water truck Application:
- ISUZU dust control water truck equipped with high-quality portable power generator and fogger additionally on water truck. The portable generator, diesel or gasoline, drives the fogger, which makes the liquid atomization, so the disinfectant solution could be sprayed very equably.
- Disinfectant spray truck could also be equipped with special sprayers in all sides to achieve front flush, rear sprinkle, side spray. When loading clean water, it is used to sprinkle and clean the roads, water the plants for multi-use.
Advantage:
- ISUZU GIGA chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Sprinkling Width :>14M
- Rear working platform with water cannon range of portable water truck:28M
- Water Tank: square or round tank for option, square tank, high-quality Q235 carbon steel treated for anti-corrosion and anti-rust
- large flow water pump as standard, 50-100 meters fog Gun machine for option;
- TDM-M06 60 meters, generator power 50KW, fan power 22KW, stainless steel multistage centrifugal pump power 11KW, 100 meters wireless remote control operation.
Specification:
| 10 wheel ISUZU GIGA 18000liters construction dust control water truck | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU GIGA | |
| Overall Dimension | 10600X2500X3200 mm | |
| GVW / Kerb Weight | 26,000 kg / 12,800 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU Engine | |
| Power | 350 Hp (257 KW) | |
| Displacement | 9839 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 6X4, left hand drive |
| Transmission | Manual, 12 – speed forward, 2 reverse | |
| Wheelbase/No. of axle | 4565+1370 mm / 3 | |
| Tyre Specification | 315/80R22.5 | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 18,000 Litres (4,700 gallons) |
| Tank Material | Carbon steel with anti-rust interior treatment | |
| Generator for sprayer | Gasoline or Diesel, 120 KW | |
| Fogger Spray Speed | 200 L/min | |
| Fogger Spray Shot | 80 m -100m | |
| Rotation Angle | Up / Down: – 5 -60° Horizontal rotation: 0-360° | |
| Operation | Remote control | |
| Optional | Burglar alarm, immobilizer, center control, radial tyre. Tank material could be stainless steel or carbon steel. | |
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Generator set | 7 kW gasoline, 30-150 kW diesel | Water way | Self-priming water, fire water injection, tank top water injection |
| Spray unit | 30m-120m optional | Water pump brand | China pump |
| way to control | Electronic control + remote wireless remote control, 360 degree rotation + up and down 90 degree swing | ||
Fog cannon disinfection vehicle structure composition:
50m to 100 meters fog gun machine Specifications:
Epidemic prevention vehicle New craft:
Optional configuration:
Technical training support:
water bowser tanker truck parts：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Export Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
water truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
