Customer: a mining company in Ethiopia
Delivery time: January 2022
Project overview: 24-hour water supply in the mountains and forests of the mining area

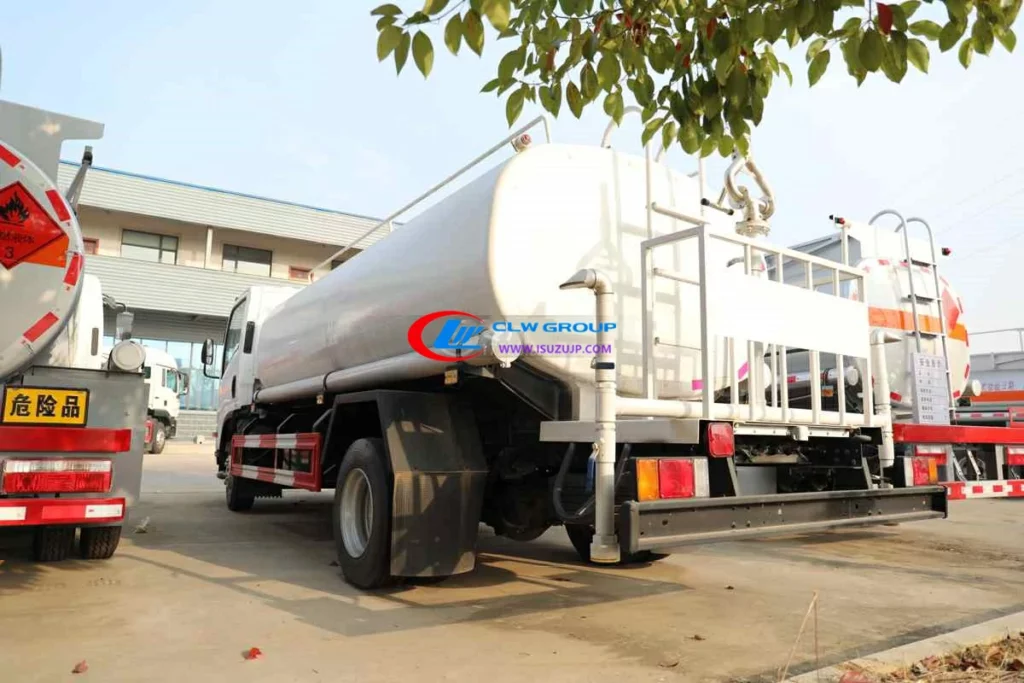

A mining customer in Ethiopia ordered another Isuzu NMR 8 ton water dispenser truck. The vehicle is 4×2 driven and is specially used for mobile water supply in mining areas and mountain forest areas. It has the advantages of flexibility and stable performance.
The key components of this Isuzu water dispenser truck are imported components, which have the advantages of good sealing, convenient operation and safety.
Chassis configuration:
Produced by Isuzu NMR Euro V chassis, 4×2 drive, especially used for rough road conditions, equipped with Isuzu 190 hp engine, Isuzu original MLD 6-speed gearbox, heating and cooling air conditioning, with steering assist, front axle 4 tons, rear axle 7 ton, 235/75R17.5 tires, with audio, with USB interface retractor, oil brake with vacuum booster pump, car interior.
Body configuration:
The volume of the tank is 8 cubic meters. The tank is welded with a 4 mm thick carbon steel plate. It is equipped with a wave-proof board and a high-power sprinkler pump. It can self-absorb water and pressurized drainage. Nozzle, high-level green water cannon with high tail, with a range of 28 meters, adjustable water column, heavy and moderate rain, drizzle, etc., can be used for temporary fire fighting.
Detailed technical parameters of Isuzu NMR 8 ton water dispenser truck:
| Mian Technology Parameter | |
| Model Name | Isuzu water tanker truck 8000L |
| Driving Type | 4×2,left hand drive |
| Color | White |
| Weights | |
| Rated payload weight(kg) | 8000 |
| Curb weight(kg) | 4000 |
| Dimensions | |
| Wheelbase(mm) | 4175 |
| Overall Dimension(mm) | 7000×2300×2650 |
| Box dimension | 8000L(2000 gallon) |
| Max speed(km/h) | 110 |
| Engine | |
| Engine model | 4HK1-TCG40(190HP) |
| Engine type | 4 stroke water-cooled,inter-cooling |
| No. of cylinders | straight-6 cylinders |
| Displacement(L) | 5.193L |
| Max. output (kw) | 139kw |
| Drive Line | |
| Transmission | MLD 6 speeds ,6 forwards,1 reverse gear,manual operation |
| Steering | Power steering |
| Brake | Oil brake OR air brake |
| Cab | |
| Cabin | Isuzu NMR |
| Standard configuration | with A/C,oil brake with vacuum booster pump,power steering |
| Axle | |
| Front axle | 4tons |
| Rear axle | 7tons |
| Tire specification | |
| Tire specification | 8 .25R16 ,8.25-16 standard tire,6 tires+1 spare tire |
| Water truck | |
| Water tanker material | Of high quality carbon steel (Q235). |
| Introduction | 1. Suction≥7m Sprinkler width≥14m Range≥28m |
| 2. with front spout, back spill and side spout function | |
| 3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) | |
| 4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function. | |
| Manhole | Man way access hole on top of tank;1 units DN500mm manhole |
| Horse reels | Two hose reels at each side of the truck |
| Water pump | Water pump model: CLW80QZF-60/90N (N/S) |
| Water pump flow rate(L/m): 60m3/h | |
| Head of delivery(m): 90m | |
| Self-priming function(min/4m):1.5 | |
| Efficiency(%):95% | |
| Related rotate speed(r/min)1180 | |
| matched power(kw):22 | |
