【Technical parameters of the vehicle】 | |||||

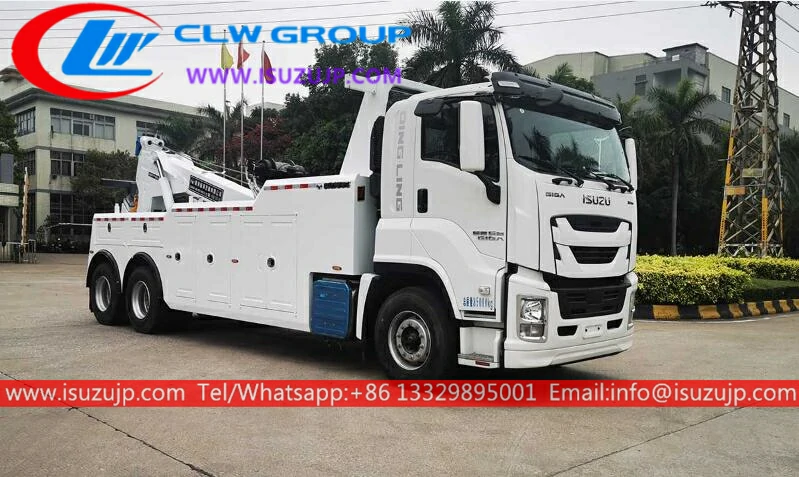

product name | YH5350TQZ026T 20 ton rotator wrecker | ||||
Total mass (kg) | 35000 | Tank volume (m3) | |||
Rated mass (kg) | Dimensions (mm) | 10540X2540X3340 | |||
Curb weight (kg) | 19850, 18850 | Cargo size (mm) | xx | ||
Number of occupants in the cab (person) | 2 | Maximum load of saddle (kg) | |||
Approach angle/Departure angle (°) | 17/12 | Front suspension/rear suspension(mm) | 1370/1980,1370/1755 | ||
Axle load(kg) | 9000/13000/13000 | Maximum speed (km/h) | 89 | ||
Remark: | Remarks: This car is mainly used for road vehicles to clear obstacles; the main special devices are lifting device, lifting device, winch, wire rope. Lift Mass 1502 0kg. Optional 12TJ16D top, curb weight is 18850kg, lift weight is 16020kg. Optional vehicle length The angle is 10315mm, and the rear overhang is 1755mm at this time. Optional 20D+16T split top appearance. Optional different support arm appearance. select Equipped with a direct-powered ETC on-board device. Both sides of the vehicle are Q235 steel toolbox skirt protection and the body frame subframe bolted connection, the rear The special device replaces the rear protection, and the height from the ground is 360mm. Only 5820+1370mm wheelbase is used. ABS and controller model: APG3550500H1, manufacturer: Zhejiang Asia-Pacific Electromechanical Co., Ltd. | ||||
【Chassis technical parameters】 | |||||
Chassis model | QL5350TZZWUVDZY | Chassis name | Special operation vehicle chassis | ||
brand name | Isuzu | manufacturer | Qingling Motor Co., Ltd. | ||
number of axes | 3 | Number of tires | 10 | ||
Wheelbase(mm) | 5100+1370, 4600+1370, 5820+1370 | ||||
Tire specifications | 385/65R22.5 20PR/315/80R22.5 20PR | ||||
Number of leaf springs | 7/10 | Front track(mm) | 2140 | ||
Fuel type | diesel fuel | Rear Track(mm) | 1855/1855 | ||
Emissions according to standards | GB17691-2018 National VI | ||||
engine model | engine manufacturer | engine capacity | engine power | ||
6WG1-TCG61 6UZ1-TCG61 | Isuzu (China) Engine Co., Ltd. Isuzu (China) Engine Co., Ltd. | 15681 9839 | 338 279 | ||
