【Technical parameters of the whole vehicle】 | |||||

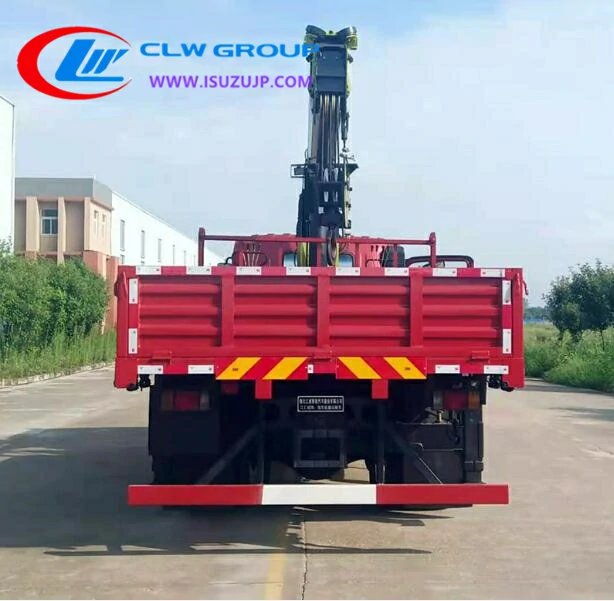

product name | JWD5140JSQZ6 Sino Homan 6t service truck cranes Uganda | ||||
Total mass (kg) | 14060 | Tank volume (m3) | |||
Rated mass (kg) | 4930 | Dimensions (mm) | 8100X2500X3650 | ||
Curb weight (kg) | 9000 | Cargo compartment size (mm) | 5120X2400X550 | ||
The number of passengers in the cab (person) | 2,3 | Maximum load of saddle (kg) | |||
Approach angle/departure angle (°) | 20/16 | Front suspension/rear suspension (mm) | 1240/2110 | ||
Axle load (kg) | 4860/9200 | Maximum speed (km/h) | 89 | ||
Remark: | Remarks: The corresponding relationship between the ABS system controller model/manufacturer is: CM3XL-4S/3M(4SF)/Guangzhou Ruilike Miqi Automotive Electronics Co., Ltd.; XH-KQ4S3M-E01/Guangzhou Xihe Automotive Electronic Equipment Co., Ltd.; engine/fuel consumption value (L/100km) The corresponding relationship is: WP7.D40TCIF1/21.59, WP4.1NQ190E61 /22.24; D40TCIF1/WP4.1NQ190E61 engine net power corresponds to: 130/136k W; Side rear protection: The side rear protections are all welded with Q235 material, and the rear protection section size is (mm): 120×60 , The rear protective ground clearance (mm): 370; one-to-one correspondence with long overall dimensions/wheelbase/rear overhang: 7250/3900/211 0,7700/4200/2260,8100/4500/2360; Crane model: JWSQZ200; Crane mass (kg): 3500; crane maximum lifting load (kg): 6000; special functions and devices: special for the car The device is a hoist, which is used for lifting and consignment of goods; this model can be equipped with an ETC vehicle-mounted device. | ||||
【Chassis technical parameters】 | |||||
Chassis model | ZZ1148G17FB0 | Chassis name | Truck chassis | ||
Brand name | Haoman | manufacturer | China National Heavy Duty Truck Group Fujian Haixi Automobile Co., Ltd. | ||
Number of axes | 2 | Number of tires | 6 | ||
Wheelbase (mm) | 3800,3900,4200,4500 | ||||
Tire specifications | 8.25R20 16PR,9.00R20 16PR,10R22.5 | ||||
Number of leaf spring | 3/5+3 | Front track (mm) | 1605 | ||
Fuel type | diesel fuel | Rear track (mm) | 1595 | ||
Emission standard | GB17691-2018 National Ⅵ | ||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
WP4.1NQ190E61 D40TCIF1 WP3NQ160E61 | Weichai Power Co., Ltd. Kunming Yunnei Power Co., Ltd. Weichai Power Co., Ltd. | 4088 4052 2970 | 140 135 118 | ||
