[Technical parameters of the vehicle] | |||||

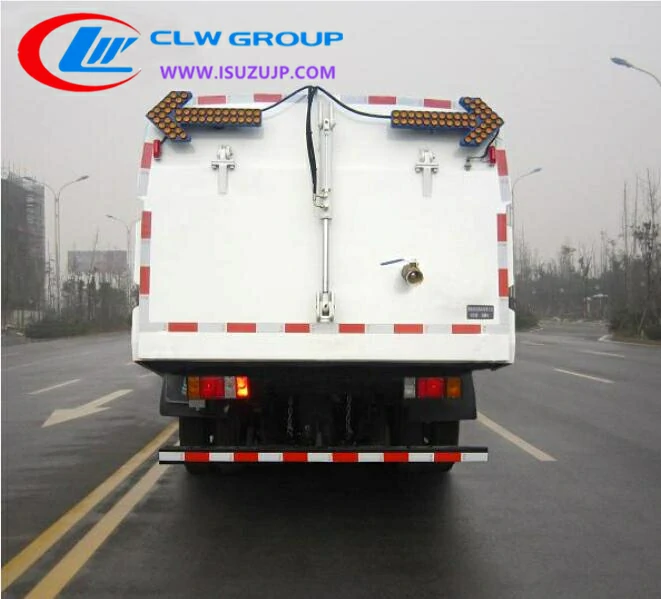

product name | HHR5100TSL3QL sweeper | ||||
Total mass(kg) | 10055 | Tank volume(m3) | |||
Rated mass(kg) | 2810 | Dimensions(mm) | 6910X2200X2640 | ||
Curbweight (kg) | 7050 | Cargo compartment size(mm) | XX | ||
The number of passengers in the cab(person) | 3 | Maximum load of saddle(kg) | |||
Approach angle/departure angle (°) | 21/18.5 | Front suspension/rear suspension (mm) | 1110/1625 | ||
Axle load(kg) | 3360/6695 | Maximum speed(km/h) | 110 | ||
Remark: | Remarks: Side guard material: Q235A, connection method: bolt connection; rear lower guard material: Q235A, connection method : Bolt connection, section size: 120mm×55mm, height from the ground: 350mm. | ||||
【Chassis technical parameters】 | |||||
Chassis model | QL1100TLARY | Chassis name | Truck chassis | ||
Trade name | Isuzu | manufacturer | Qingling Motors Co., Ltd. | ||
Number of axes | 2 | Number of tires | 6 | ||
Wheelbase(mm) | 4175 | ||||
Tire specifications | 9.5R17.5, 8.25-20, 8.25R20 | ||||
Number of leaf spring | 8/10+6 | Front track(mm) | 1680 | ||
Fuel type | diesel fuel | Rear track(mm) | 1650 | ||
Emission standard | GB17691-2005 National III, GB3847-2005 | ||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
4HK1-TC | Qingling Isuzu(Chongqing) Engine Co., Ltd. | 5193 | 129 | ||
