[Technical parameters of the vehicle] | |||||

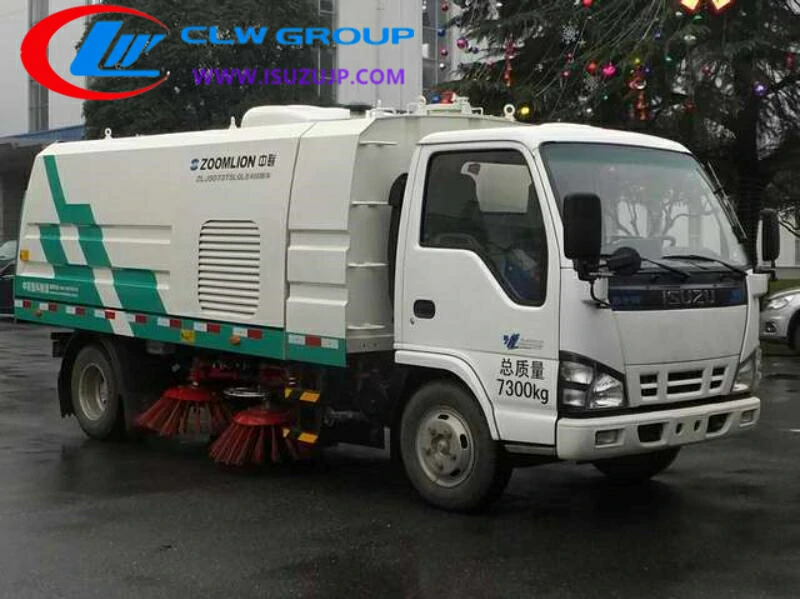

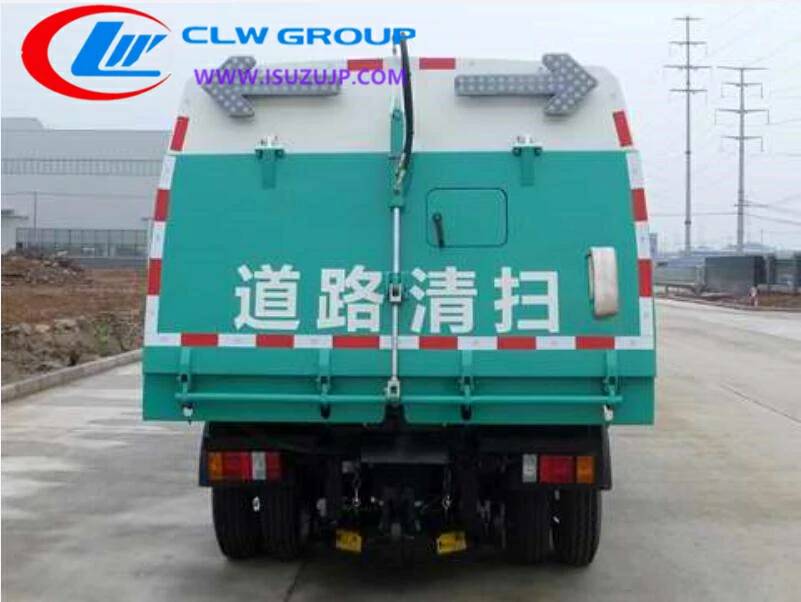

product name | ZLJ5073TSLQLE4 mini road sweeper | ||||
Total mass(kg) | 7300 | Tank volume(m3) | |||
Rated mass(kg) | 1770,1610 | Dimensions(mm) | 6150X2050X2420,2460 | ||
Curbweight (kg) | 5400,5560 | Cargo compartment size(mm) | XX | ||
The number of passengers in the cab(person) | 2 | Maximum load of saddle(kg) | |||
Approach angle/departure angle (°) | 24/16 | Front suspension/rear suspension (mm) | 1015/1320 | ||
Axle load(kg) | 2580/4720 | Maximum speed(km/h) | 105 | ||
Remark: | Remarks: The curbweight of this car is 5400kg when the basic model is configured, and the load weight is 1770kg. Both side guards and rear guards Interference with the working device, so it is exempted. The ground clearance of the protective device after the replacement of the working device is 260mm. The position and rear view of the expansion cap The appearance of the viewing window. | ||||
【Chassis technical parameters】 | |||||
Chassis model | QL1070A1KAY | Chassis name | Truck chassis | ||
Trade name | Isuzu | manufacturer | Qingling Motors Co., Ltd. | ||
Number of axes | 2 | Number of tires | 6 | ||
Wheelbase(mm) | 3815 | ||||
Tire specifications | 7.00-16 14PR,7.00R16 14PR | ||||
Number of leaf spring | 8/6+5 | Front track(mm) | 1504 | ||
Fuel type | diesel fuel | Rear track(mm) | 1425 | ||
Emission standard | GB17691-2005 (National IV), GB3847-2005 | ||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
4KH1-TCG40 | Qingling Isuzu(Chongqing) Engine Co., Ltd. | 2999 | 88 | ||
