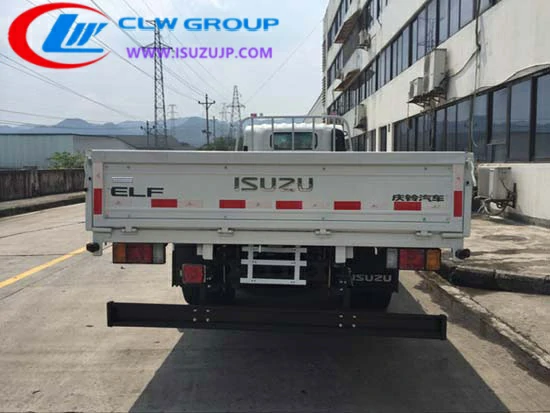

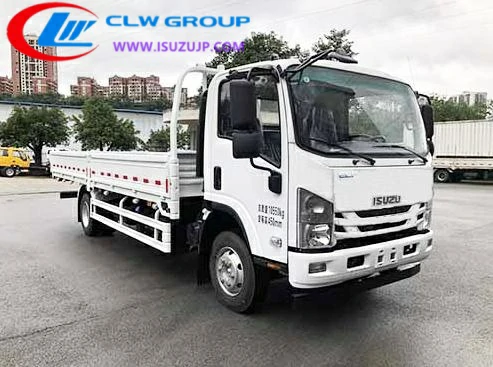

Isuzu QL1110ANMA cargo truck for sale
【Main technical parameters】 | |||
Product trademark | Isuzu card | Announcement batch | 390 |
Product Name | QL1110ANMA truck | Product number | FBJ39003308 |
Total mass (Kg) | 10550 | Tank volume (m3) |
|
Rated load mass (Kg) | 5945,6345,6215,6075 | Dimensions (mm) | 7950×2380×2520,2600,2450,2530 |
Curb mass (Kg) | 4410,4010,4140,4280 | Cargo compartment size (mm) | 6008,5668×2300×450 |
Rated passengers (persons) |
| Total mass of quasi-torcher (Kg) |
|
Permitted number of people in the cab | 3,2 | Mass load utilization coefficient | 1.39,1.63,1.55,1.46 |
Approach angle /departure angle (°) | 16/14,19/15,15/15,18/16 | Front suspension /rear suspension (mm) | 1110/2365 |
Number of spring sheets | 8/10+6 | Turning Form | steering wheel |
Number of axes | 2 | Wheelbase (mm) | 4475 |
Number of tires | 6 | Tire specifications | 235/75R17.5 16PR,8.25R20 14PR |
Front wheel pitch (mm) | 1680 | Rear wheel pitch (mm) | 1650 |
Axle load (Kg) | 3500/7050 | Maximum speed (Km/h) | 110 |
other | 1. The optional engine of the car: the net power of the 4HK1-TCG61 type engine is 138kw, the net power of the 4JZ1-TCG62 type engine is 131kw, and the fuel consumption declaration value is 17.3L/100km; 2. The vehicle is equipped with ABS; the ABS and controller model are: APG3550500H1, the manufacturer is: Zhejiang Asia Pacific Mechanical and Electrical Co., Ltd., the ABS and controller model are: CM4XL-4S/4M, the manufacturer is: Guangzhou Ruili Kemi Automotive Electronics Co., Ltd.; 3. The optional rearview mirror style and “NQR”/”KV800” sign; 4. Side protection material: steel plate Q235, connection method: bolted to the cross beam of the car; rear protection material: steel plate SAPH440 The plate thickness is 3.2mm, connection method: The rear protection bracket is bolted to the tail end of the frame longitudinal beam, the rear protection section size is: 150×49.7 (mm), ground height: 485mm; 5. Optional after-treatment protection bracket; 6. Optional ETC device; 7. Optional semi-cab; Optional rims of different shapes and materials; Optional chrome-plated corner plates and grilles; Optional different wheel arches; Optional fuel tanks, urea tanks, batteries and after-treatment positions. | ||
【Chassis Technical Parameters】 | |||
Chassis model | QL1110ANMAY Category 2 Qingling Automobile Co., Ltd. | ||
Fuel type | diesel fuel | Emission standards | GB17691-2018 Country VI |
Engine model | Engine Manufacturing Enterprise | Displacement (ml) | Power (Kw) |
4HK1-TCG61 4jz1-TCG62 | Isuzu (China) Engine Co., Ltd. Isuzu (China) Engine Co., Ltd. | 5193 2999 | 139 133 |
