【Main technical parameters】 | |||
Product trademark | Isuzu card | Announcement batch | 390 |

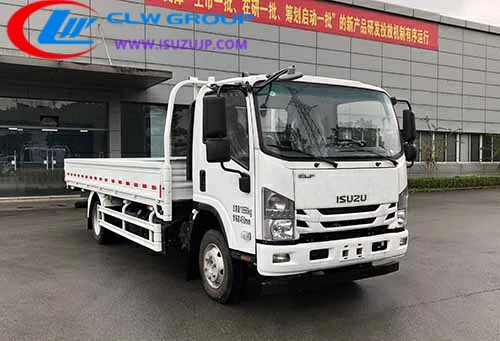

Product Name | QL1110ANLA cargo vehicle | Product number | GBH39033307 |
Total mass (Kg) | 10550 | Tank volume (m3) |
|
Rated load mass (Kg) | 6055,6445,6315,6185 | Dimensions (mm) | 7450×2380×2520,2600,2480,2560 |
Curb mass (Kg) | 4300,3910,4040,4170 | Cargo compartment size (mm) | 5508,5168×2300×450 |
Rated passengers (persons) |
| Total mass of quasi-torcher (Kg) |
|
Permitted number of people in the cab | 3 | Mass load utilization coefficient | 1.45,1.70,1.61,1.53 |
Approach angle /departure angle (°) | 16/15,19/17,15/16,18/18 | Front suspension /rear suspension (mm) | 1110/2165 |
Number of spring sheets | 8/10+6 | Turning Form | steering wheel |
Number of axes | 2 | Wheelbase (mm) | 4175 |
Number of tires | 6 | Tire specifications | 235/75R17.5 16PR,8.25R20 14PR |
Front wheel pitch (mm) | 1680 | Rear wheel pitch (mm) | 1650 |
Axle load (Kg) | 3500/7050 | Maximum speed (Km/h) | 110,100 |

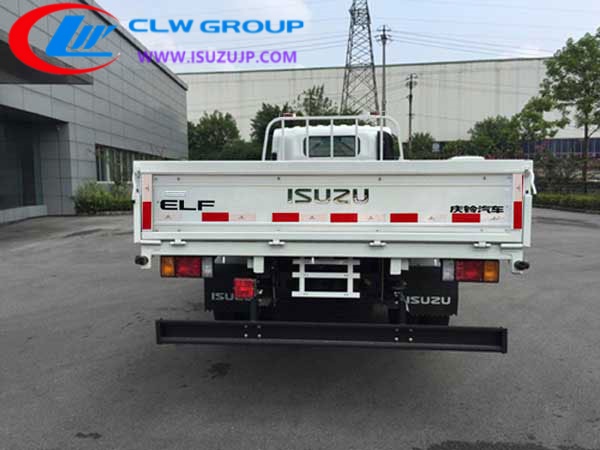

other | 1. The optional engine of the car: the net power of the 4HK1-TCG61 type engine is 138kw, the net power of the 4JZ1-TCG62 type engine is 131kw, and the fuel consumption declaration value is 17.3L/100km; 2. The vehicle is equipped with ABS; the ABS and controller model is: APG3550500H1, the manufacturer is: Zhejiang Asia Pacific Mechanical and Electrical Co., Ltd., the ABS and controller model is: CM4XL-4S/4M, the manufacturer is: Guangzhou Ruili Kemi Automotive Electronics Co., Ltd.; 3. The optional rearview mirror style and “NQR” and “KV800” sign; 4. Side protection material: steel plate Q235, connection method: bolted to the cross beam of the car; rear protection material: steel plate SAPH440 The plate thickness is 3.2mm, connection method: The rear protection bracket is bolted to the tail end of the frame longitudinal beam, the rear protection section size is: 150×49.7 (mm), ground height: 485mm; 5. Optional post-treatment bracket; 6. Optional semi-cab; 7. Optional ETC device; 8. Optional side panel style of the cargo box; 9. Optional rims of different shapes and materials; Optional fuel tanks, urea boxes, batteries and after-treatment positions; Optional different wheel arches; Optional chrome-plated corner plates and grilles. | ||
【Chassis Technical Parameters】 | |||
Chassis model | QL1110ANLAY Class II Qingling Automobile Co., Ltd. | ||
Fuel type | diesel fuel | Emission standards | GB17691-2018 Country VI |
Engine model | Engine Manufacturing Enterprise | Displacement (ml) | Power (Kw) |
4HK1-TCG61 4jz1-TCG62 | Isuzu (China) Engine Co., Ltd. Isuzu (China) Engine Co., Ltd. | 5193 2999 | 139 133 |
