【Main technical parameters】 | |||
Product trademark | Isuzu card | Announcement batch | 390 |

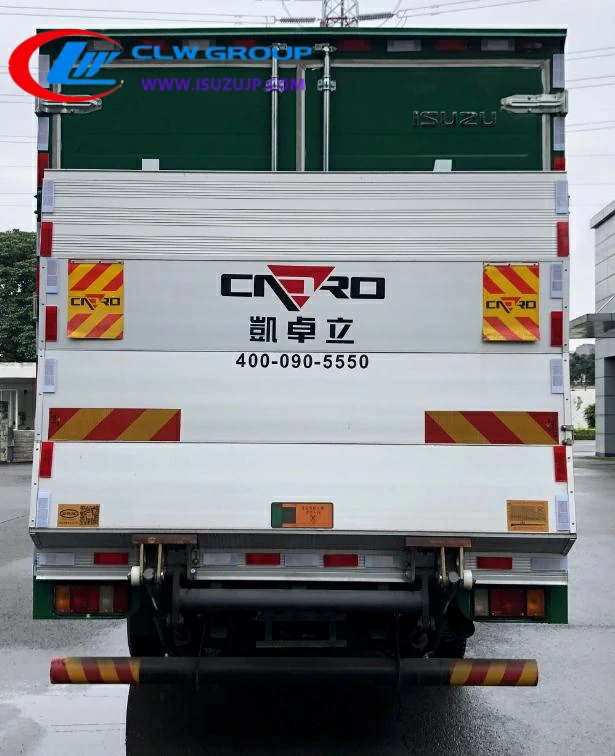

Product Name | QL5071XYZBUKA postal vehicle | Product number | FB439025302 |
Total mass (Kg) | 7300 | Tank volume (m3) |
|
Rated load mass (Kg) | 3700,3455 | Dimensions (mm) | 6800,7000,7050×1930,2120,2170,2220,2380×2820,3120,3220,3350 |
Curb mass (Kg) | 3470,3650 | Cargo compartment size (mm) | 5050,5200,5250×1850,2050,2100,2150,2300×1810,2100,2150,2200,2300 |
Rated passengers (persons) |
| Total mass of quasi-torcher (Kg) |
|
Permitted number of people riding in the cab (people) | 2,3 | Mass load utilization coefficient | 1.10,1.00 |
Approach angle /departure angle (°) | 24/14,20/14 | Front suspension /rear suspension (mm) | 1015/1970,1015/2170,1120/2115 |
Number of axes | 2 | Wheelbase (mm) | 3815 |
Axle load (Kg) | 2580/4720 | Maximum speed (Km/h) | 95,115 |
other | 1. The entire vehicle is equipped with an optional engine. When equipped with a 4KH1CN6LB engine, the net power is 87kW, the corresponding fuel consumption value is 15.65 L/100km, the VIN is LWLDABUG×××××××××××××××××, and when equipped with a 4KH1N6MD engine, the net power is 101kW, the fuel consumption value is 14.54L/100km, and the vehicle identification code is LWLDAMTG××××××××××××××; when equipped with a 4KB1-TCG60 engine, the engine net power is 94kW, the fuel consumption value is 14.54L/100km, the vehicle identification code is LWLDAFMG×××××××××××××, and the maximum speed is 115km/h; 2. Side protection material: steel plate Q235, connection method: bolted to the cross beam of the car; 3. The optional braking system of the whole vehicle: When installing a hydraulic braking system, the corresponding relationship between ABS and its controller model/manufacturer is: APG3550500A/Zhejiang Asia Pacific Mechanical and Electrical Co., Ltd., CM4YL/Guangzhou Ruili Kemi Automobile Electronics Co., Ltd.; When installing an air pressure braking system, the corresponding relationship between ABS and its controller model/manufacturer is: CM4XL-4S/4M/Guangzhou Ruili Kemi Automobile Electronics Co., Ltd.; 4. The top of the cargo box is closed and cannot be opened; 5. The car is equipped with the chassis: different specifications of cabs, rearview mirror styles, different shapes and different materials (aluminum/iron) rims, optional “KVNNR/NLR/KV100/KV600/M100/M600/100P/NJR/NHR/NKR” and other signs; 6. The car is equipped with a diversion cover and style, and the cargo box is equipped with no side doors, single side doors, double side doors, corrugated steel flat/aluminum plates, composite panels, and blind window cabs; 7. This model can be equipped with ETC vehicle-mounted devices; 8. Other models of refrigeration units with equivalent power are used to transport postal express goods that need to be refrigerated; 9. The vehicle is equipped with a rear protection style. When installing ordinary rear protection, the rear protection material is: SAPH440, the plate thickness is 3.2mm, connection method: The rear protection bracket is bolted to the tail end of the longitudinal beam of the frame. The rear protection section size is 139×52 (mm), and the ground height is 465mm; the hydraulic lifting tail plate is equipped with a tail plate, the tail plate is 350kg, and the rear extension is 280mm; the rear protection is equipped with a hydraulic tail plate, the material: SAPH, which is a cylindrical structure, the cross-section size is Ф114mm, the material thickness is 2.0mm, and the ground height is 435mm. | ||
【Chassis Technical Parameters】 | |||
Chassis model | QL1070BUKACY | Chassis name | Truck chassis (Class II) |
Trademark name | Isuzu card | Manufacturing enterprises | Qingling Automobile Co., Ltd. |
Dimensions (mm) | 6665,6950×1880,1980,2130×2200,2315 | Number of tires | 6 |
Approach angle /departure angle (°) | 24/14,23/13 | Tire specifications | 7.00R16LT 14PR,7.00-16LT 14PR |
Number of spring sheets | 8/6+5,6/6+6 | Front wheel pitch (mm) | 1504,1640,1690 |
Fuel type | diesel fuel | Rear wheel pitch (mm) | 1425,1525,1655 |
Emission standards | GB17691-2018 Country VI | ||
Engine model | Engine Manufacturing Enterprise | Displacement (ml) | Power (Kw) |
4KH1CN6LB 4KH1N6MD 4KB1-TCG60 | Isuzu (China) Engine Co., Ltd. Isuzu (China) Engine Co., Ltd. Isuzu (China) Engine Co., Ltd. | 2999 2999 2499 | 88 103 96 |
