[Technical parameters of the vehicle] | |||||

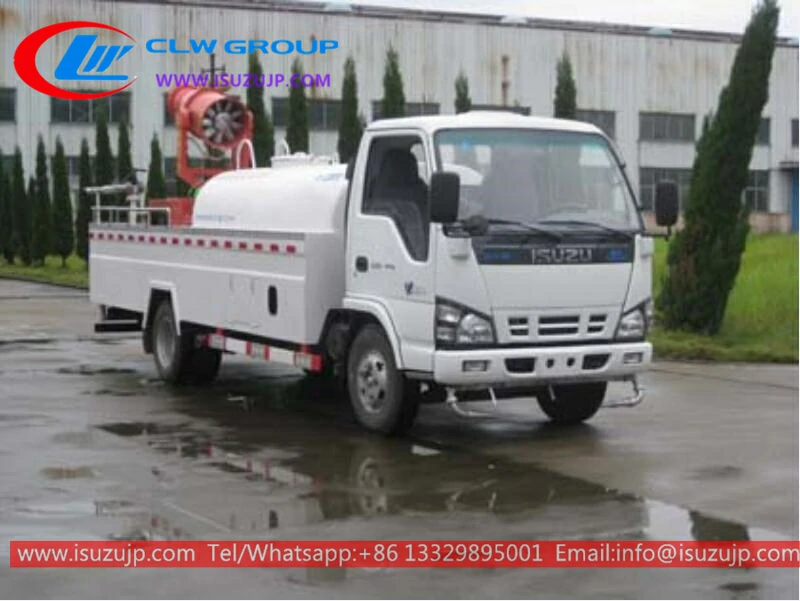

product name | JTZ5070GPS water jet truck | ||||
Total mass (kg) | 6990 | Tank volume (m3) | |||
Rated mass (kg) | 3130 | Dimensions (mm) | 7115X1940X2780 | ||
Curb weight (kg) | 3730 | Cargo compartment size (mm) | XX | ||
The number of passengers in the cab (person) | 2 | Maximum load of saddle (kg) | |||
Approach angle/departure angle (°) | 22/9 | Front suspension/rear suspension (mm) | 1015/2285 | ||
Axle load (kg) | 2340/4650 | Maximum speed (km/h) | 105 | ||
Remark: | Remarks: 1. Shipping product name: water: density: 1000 kg, cubic meter: effective volume of the tank: 3.22 cubic meters, the overall size of the tank ( mm), the length × long axis × short axis is 2840 × 1420 × 980. 2, this car with the chassis optional widened front bumper; assembled with the chassis 4KH1-TCG40 engine, the net engine power is 87KW respectively. 3. The material of the side rear guard is Q235A, and the side guard The guard is fastened to the frame by bolts, and the rear guard is fastened on the frame frame and crossbeam with bolts and nuts. The rear guard section size is (mm): 100×40, the height from the ground is 340mm. | ||||
【Chassis technical parameters】 | |||||
Chassis model | QL1071A1KAY | Chassis name | Truck chassis | ||
Trade name | Isuzu | manufacturer | Qingling Motors Co., Ltd. | ||
Number of axes | 2 | Number of tires | 6 | ||
Wheelbase (mm) | 3815 | ||||
Tire specifications | 7.00-16 14PR,7.00R16 14PR | ||||
Number of leaf spring | 8/6+5 | Front track (mm) | 1504 | ||
Fuel type | diesel fuel | Rear track (mm) | 1425 | ||
Emission standard | GB17691-2005 (National IV), GB3847-2005 | ||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
4KH1-TCG40 | Qingling Isuzu (Chongqing) Engine Co., Ltd. | 2999 | 88 | ||
